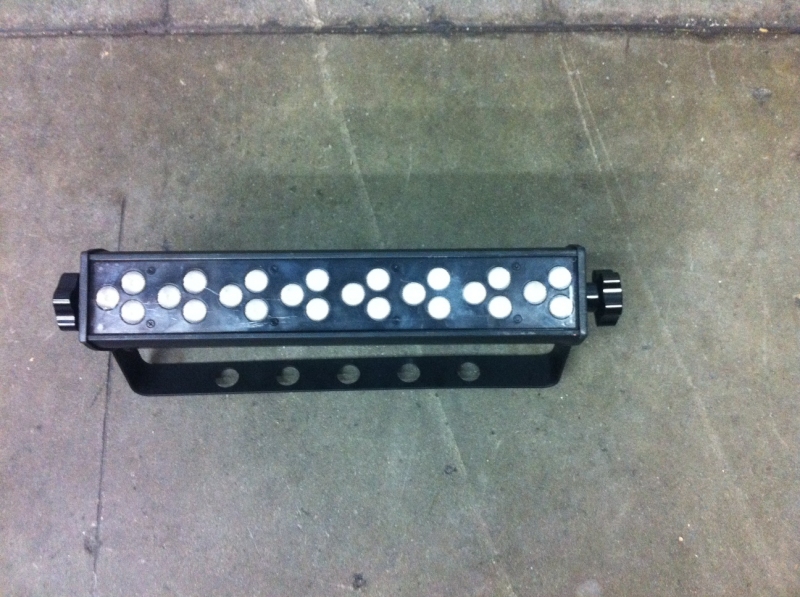

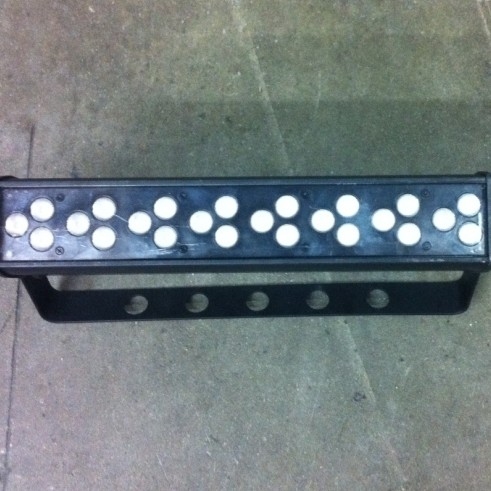

The COLORdash? Batten is a compact liner LED wash tailor made for washing applications where space is limited. Fitted with 24 high-power LEDs, the COLORdash? Batten makes for a perfect wall wash or accent light. Brackets are included to attach units in a linear array or stacked for different effects.
3, 4, 10, or 12-channel RGB LED linear wash light
Operating modes
3-channel: RGB control
4-channel: RGB, dimmer
10-channel: RGB, ID, dim, macro, Strobe, auto / custom, module select
12-channel: RGB of 4 separate sections
RGB color mixing with or without DMX controller
Built-in automated programs via master/slave, DMX or COLOR-CON
Program and recall custom programs via master/slave, DMX or COLOR-CON
Adjustable fan speeds
High power, 1 W (350 mA) LEDs
Additional threaded hole on rear for mounting (size M 10)
Additional (IEC) power output: max 10 units @ 120 V (see manual for details)
Attach multiple units together with the included bracket
Includes 6.6 ft (2 m) power extension cable
LCD display with password protection
Transfer custom programs between fixtures
Double-bracket yoke doubles as floor stand
OPTIONS
COLORado Controller (COLOR-CON)
Optical systems: 15deg (CL20X15), 30deg (installed)
33 ft (10 m) power extension cable (EXT-2)
Installed Optics: 30deg
Beam angle: 29.5deg
Field angle: 55.4deg
Lux: 357 @ 2 m
Optional optics: 15deg
Beam angle: 14deg
Field angle: 29deg
Lux: 1,729 @ 2 m
Light source: 24 x 1 W LEDs, 50,000hrs (8 x 350 mA red, 8 x 350 mA green, 8 x 350 mA blue)
Power and current: 120 V, 60 Hz; 44.7 W, 0.7 A (operating), 0.3 A (inrush)
Power and current: 230 V, 50 Hz; 42 W, 0.4 A (operating), 0.4 A (inrush)
AC power: Auto-ranging 100 V ~ 240 V 50/60 Hz
IEC power cable with plug: 60 in (1,524 mm)
IEC power Linking cable: 82 in (2,083 mm)
Weight: 7.9 lbs / 3.6 kg
Size: 3.1 x 17.5 x 7.4 in / 80 x 444 x 188 mm
