DiGiCo SD11: Big things come in small packages.....
The SD11 is the smallest by far of all the DiGiCo consoles, though don't let that deceive you: this 19-inch rack mount or table top mixer is a very powerful solution that can be incorporated into pretty much any mixing environment; like its bigger brothers, the SD11 is also powered by Stealth Digital Processing and floating point Super FPGA technology, and transporting it couldn't be easier just pop it on the back seat of the car. This easy-to-use mixer delivers extremely high performance at a staggeringly competitive price point.
Scratching the surface

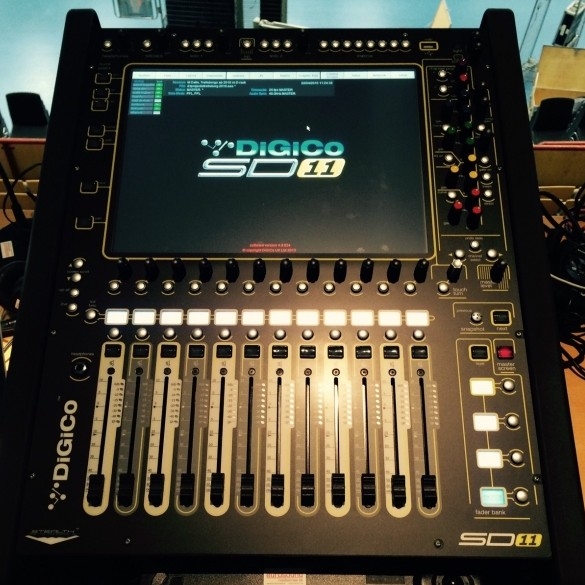

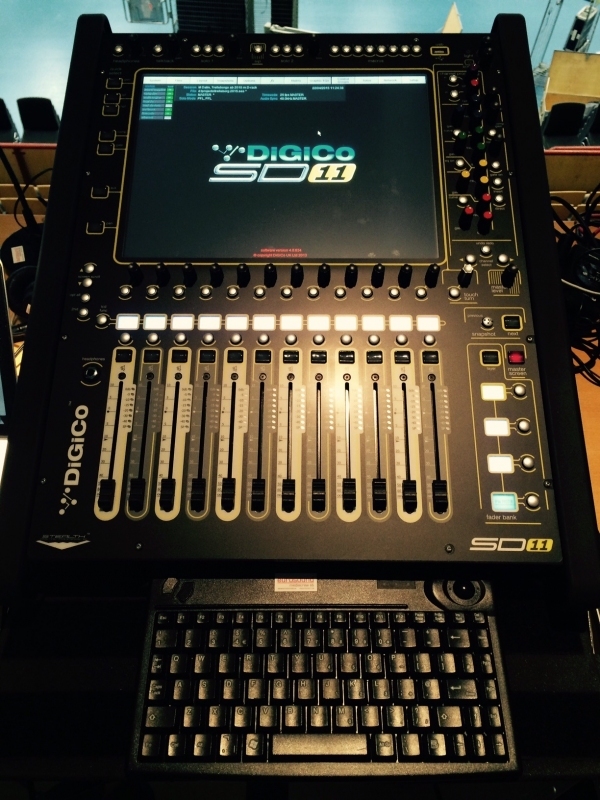

The SD11 is manufactured with a steel chassis and a polycarbonate-overlaid aluminium worksurface which makes it super-lightweight. Its user interface comes courtesy of DiGiCo's trademark 15-inch, High Resolution TFT LCD touch screen with backlit display; and its 12 touch sensitive moving faders guarantee a simple and intuitive workflow.
What's under the hood?
The SD11 boasts 32 processing channels (eight of which are Flexi channels, configurable as either mono or stereo) at 48kHz, which is the equivalent of 40 channels of full DSP processing.
Standard channel processing, whether inputs or outputs, includes Channel Delay, Single and Multi Channel Presets, Dual insert points, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, Dual insert points, DiGiCo's DYN 1 (Compressor, De-esser or assignable Multi Channel Compressor) and DYN 2 (Gate, Compressor or Ducker).
The console also benefits from four Dynamic EQ processors, all of which can be assigned to any of the input or output channels. These powerful processors offer dynamic processing on each of the four standard parametric bands, plus there are also four assignable Multiband Compressors; and no matter how the console is set up, the user won't lose any resources, as all channels are equipped to provide the same high quality signal path and feature set.
The master section incorporates 12 gangable 32-band graphic EQs, four stereo effects (selectable from a palette of 33), and eight control groups (VCAs); and using snapshots, engineers can now switch between complete configurations in any live environment easier than ever before, be it at rehearsals, during system setup, or even at a show.
In addition, we've included 12 Flexi busses (mono or stereo), all of which are assignable as mono/stereo groups or auxiliary busses; and in addition to these busses, for further configurability, we've provided an 8 x 8 output Matrix, dual solo busses, and a Master buss. Essentially, users have the equivalent of 39 busses of DSP at their disposal.
Unlike all other digital console manufacturers, you don't lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.
I/O
For a little console, the SD11's I/O section is monumental: Local I/O includes 16 mic/line inputs, eight line outs, two mono AES/EBU, one MADI port, and one dedicated D-Rack port.
The D-Rack is an optional 32-input, eight-output remote I/O rack which can be increased to accommodate 16 outputs if desired.
There is also a factory fit Optocore option which allows for connectivity to all DiGiCo racks and consoles in a redundant loop.
In addition, there is an optional DiGiCo SoundGrid module which, when linked to an external PC server such as SoundGrid or DiGiGrid, provides the user with instant access to 16 fully integrated low-latency Waves stereo Multi Racks, each with the ability to have up to eight plugins per rack. That's 64 I/O - and as you'd expect from DiGiCo, this is all additional I/O.
All Waves compatible plugins are pre-loaded, and as this is integral within the console, you have the added advantage of touch screen control; and all shapshots and session files are saved within the console. Click here for more info.
DigiCo
DiGiCo (UK) Limited brings together the design and development skills that have helped create some of the world's most popular, successful and ground-breaking live sound consoles, with the digital engineering expertise and manufacturing resources of Soundtracs.
The company was formed in 2002 to develop the D5 Live digital mixing system, a revolutionary approach to both the live sound console and the way it interfaces with both ends of the audio chain.
In basing a console around a powerful DSP engine using proven Soundtracs hardware and software, but with features dedicated to live sound mixing, DiGiCo created the worldâ??s first truly open-ended console system, for which additional features will be made available in new software versions. This design philosophy ensures your investment in state of the art audio technology today will remain state of the art in the future. The D5 Live from DiGiCo: science dedicated to advancing the art of live sound engineering.
Soundtracs was formed in the early 1980s by a group of recording engineers in search of a better studio console than those available at the time. The teamâ??s success led to two decades of audio innovation and, in 1992, its first development of a digital audio mixing console.
In 1996 this program led to the launch of the acclaimed Virtua console, followed a year later by the DPC, in 1998 the DS3 and in 2000 the D4. Since 2000 the companyâ??s product range has been based entirely on digital audio.
Along the way a host of new technologies has been introduced, including the first use by a console manufacturer of the revolutionary Sharc DSP from Analog Devices, a faster, more efficient processor than any then on the market, the first (and still the most comprehensive) use of multiple TFT LCD touchscreens, a pioneer in the use of a 96kHz sample rate, and the first to run multiple sample rates simultaneously.
This is just some of the experience that has gone into creating the D1 Live digital mixing system, the latest innovation from one of the pioneers of professional digital audio.
