Used Roe Evision HD101 Processor | For SaleItem# 53565

ROE
View more Sale Inventory

Buy It on UsedLighting.com

Description

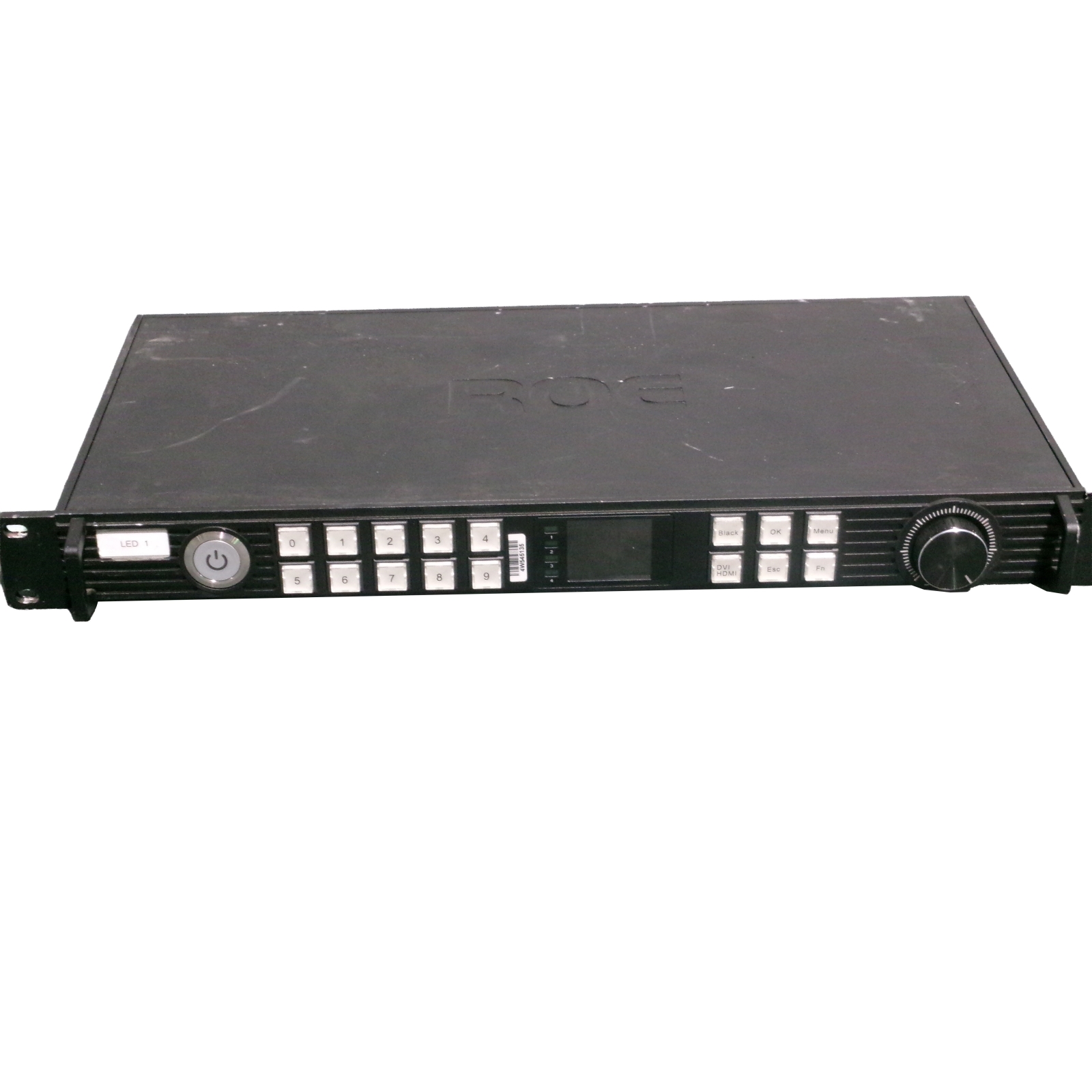

These units may show signs of heavy wear but are in good working condition.  The ROE Evision HD101 Processor is a compact LED display video processor designed to handle up to 1080p-class content (nominal pixel capacity of approximately 2.1M pixels, equivalent to 1920 x 1080 at 60 Hz) for LED wall and display system workflows. With DVI and HDMI inputs and four Gigabit Ethernet outputs, it is built for straightforward signal intake, processing, and distribution to LED receiving systems. Input and Output Connectivity For source connections, the HD101 provides 1x DVI and 1x HDMI input. Both support input/loop resolutions up to 2560 x 1600 at 60 Hz (within the listed max width and height limits), making it practical for feeding higher-resolution computer sources and scaling to your LED canvas as needed. DVI In/Loop: DVI-I (Dual-Link, Female), VESA standard (1080p input supported). Max input/loop width 2560 px (2560 x 810 @60 Hz), max input/loop height 1600 px (1296 x 1600 @60 Hz). HDMI In/Loop: HDMI 1.4 Type A, EIA/CEA-861 standard, HDCP 1.4 supported (HDMI In only). Max input/loop width 2560 px (2560 x 810 @60 Hz), max input/loop height 1600 px (1296 x 1600 @60 Hz). On the output side, four Gigabit Ethernet ports are available for Neutrik NE8MC RJ45 connector or RJ45 terminator. Each port supports up to 655,000 pixels at 60 Hz, helping you distribute your total pixel load across multiple runs for cleaner cabling and easier mapping. Max output per port: 655,000 px @60 Hz Max output width: 2,560 px Max output height: 1,600 px Control and System Integration Two USB 2.0 Type A ports support control and processor cascade, making the HD101 a practical fit for systems that require local management and expansion across multiple processors. Physical Specs for Rack Builds Designed for rack environments, the HD101 fits a 1U form factor (L485 x W240 x H45mm) and weighs 2.3 kg (5.1 lbs), making it easy to integrate into touring racks, fixed installs, or spare processor kits.
