Used MA Lighting NPU Network Processing Unit (8GB) | For SaleItem# 53532

MA Lighting
View more Sale Inventory

Buy It on UsedLighting.com

Description

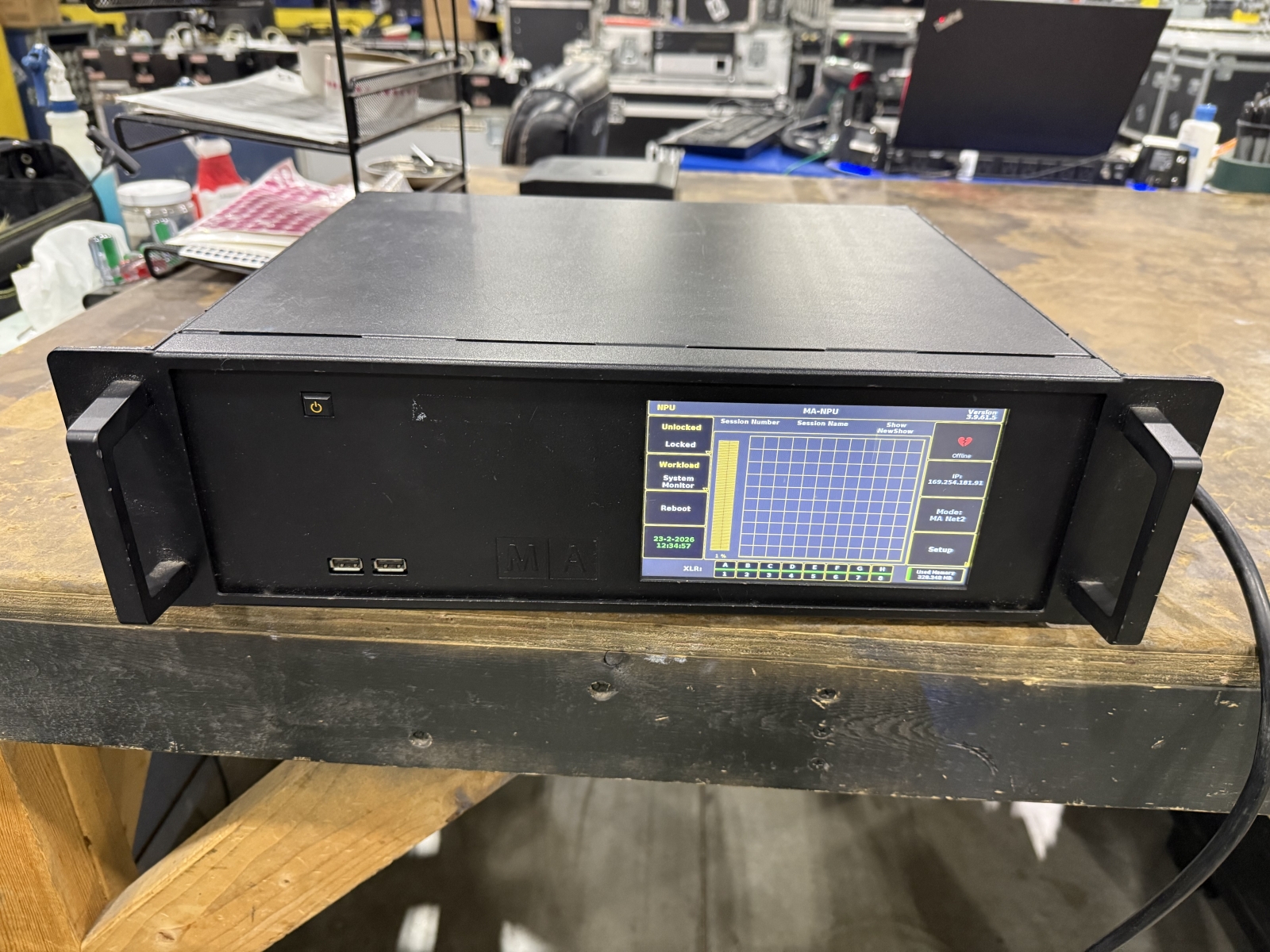

This MA Lighting NPU Network Processing Unit was previously used for rentals and tours. It shows signs of normal wear and tear, and is in good working condition. A power cable is not included. The MA Lighting NPU Network Processing Unit (8GB) adds dedicated processing power to a grandMA2 network and serves as the bridge between Ethernet-based control data and DMX-controlled fixtures. Designed for decentralized or centralized DMX workflows, it converts incoming network data to DMX and outputs it across eight independent DMX ports, making it a practical way to expand parameters, place DMX closer to stage locations, or build redundancy into a multi-console system. How It Fits Into a grandMA2 Workflow The MA NPU (Network Processing Unit) unites the calculation power in the network and offers the same performance as the grandMA2 consoles. The MA NPU offers and handles 4,096 parameters. With an easy to read touchscreen the MA NPU allows intuitive use and easy access to all the important information. 8 x DMX XLR 5-pin connectors on the rear side of the MA NPU allow a most flexible use within the network environment.  The MA NPU  is the link between Ethernet and DMX controlled devices. The MA NPU adds processing power and parameters to the MA system. For decentralized DMX networks, the MA NPU converts incoming Ethernet data into DMX data. The converted data are transmitted via 8 independent DMX connectors, which can be configured as DMX inputs or outputs. Within a network, several grandMA2 consoles share the available MA NPU devices. For parameter expansion the MA NPU shall be located in a centralized position, whereas MA xPort Nodes are used to distribute and output DMX data.This allows DMX devices being used by several consoles together, and it provides a redundant mode of operation without additional components such as DMX mergers. Key Features and Specifications 4,096 HTP-/LTP-parameters Real-time calculation for 65,536 parameters with a grandMA2 system (equivalent to 256 DMX universes) 8 x DMX XLR 5-pin connectors (configurable as DMX inputs or outputs) 1 internal command screen (touchscreen) 1 Ethercon connector 4 USB 2.0 connectors grandMA series 1 compatibility mode Converts grandMA2 onPC to full featured lighting control system Dimensions: 485 x 332 x 126mm (19 x 13 x 5inch) Weight: 9kg (19.9lbs)
