Used Klark Teknik DN7204 Delay | For Sale
Updated YesterdayItem# 53590

Klark Teknik
View more Sale Inventory

Buy It on UsedLighting.com

Description

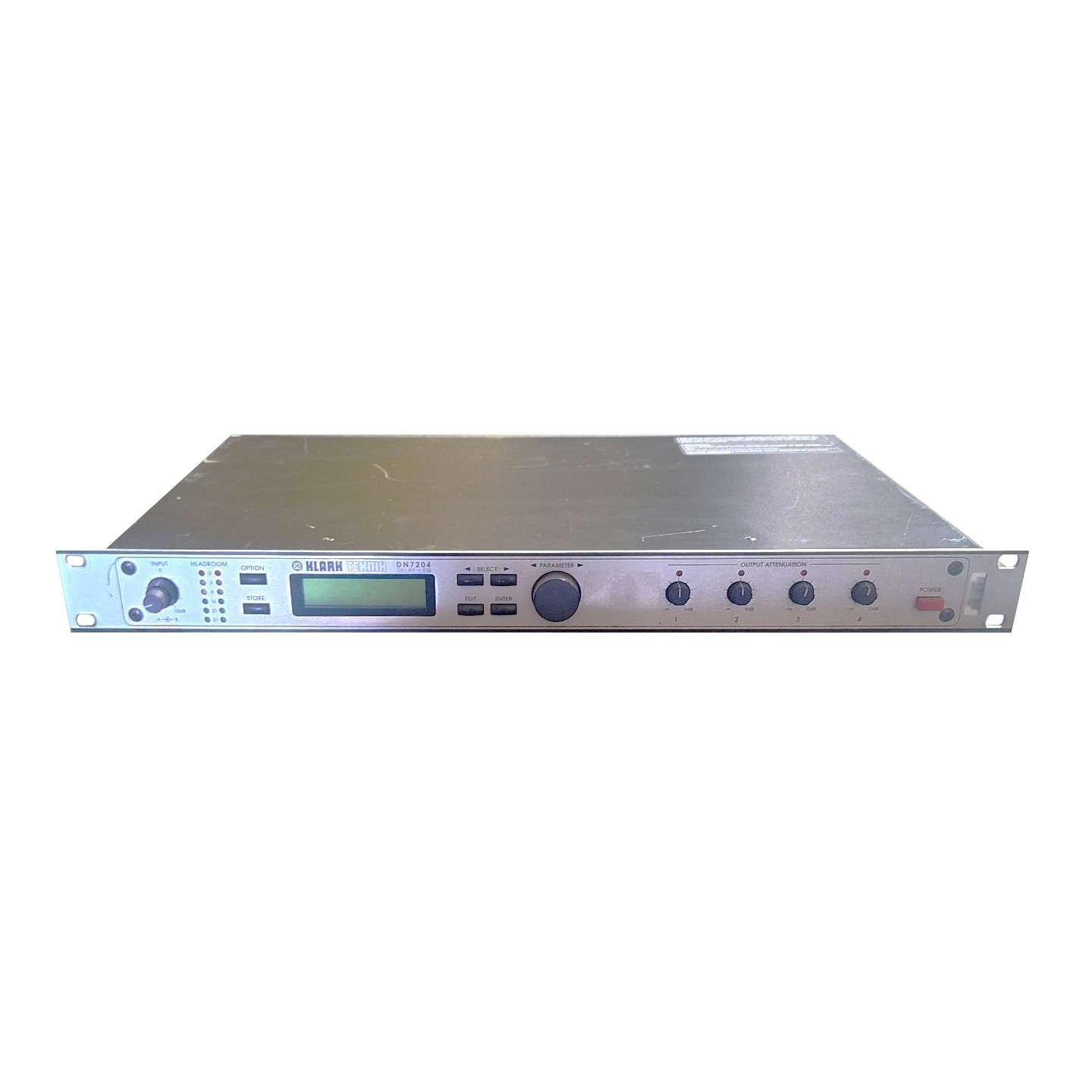

These units show signs of heavy wear but are in good working condition. Designed to meet and exceed the needs of the recording, broadcast, installation and live sound industries, the Klark Teknik DN7204 Programmable Delay Line is a high quality, 2-input, 4-output configurable audio delay line that combines state-of-the-art DSP performance with ease of use. With flexible input-to-output routing, each output can be fed from either input, making it easy to build practical configurations such as stereo delay distribution, dual mono zones, or a single input feeding multiple timed outputs for speaker alignment and multi-room installs. Flexible Routing for System Alignment The DN7204 supports multiple routing layouts, including Stereo 1-in, 2-out; two independent 1-in, 2-outs; 1-in, 3 out + 1-in 1-out: 1-in, 4-out. This configurability is well suited for time-aligning front fills, delays, and zones in installed systems, as well as managing timing relationships in broadcast and live sound rigs. Per-Output EQ for Clean, Controlled Results To further extend the flexibility of the Delay line, the unit also incorporates two bands of parametric equalization and a variable high frequency shelf on each output, allowing you to fine-tune each destination independently. This is useful when different speaker types, placement, or room acoustics require output-specific tonal correction. Connections, Levels, and Power Inputs: Two, balanced (electronically), impedance 20k ohm balanced / 10k ohm unbalanced, common mode rejection (1KHz) >70dB, max level +21dBu, analogue gain -¥ to +12dB Outputs: Four, balanced (electronically), min load impedance 600ohm, source impedance 50ohm, max level +21dBu into >2kohms, gain -¥ to 0dB Audio performance: Frequency response with EQ flat +/-0.3dB (20Hz to 20kHz), distortion @ +4dBu: 100dB Power: 90 to 250v @ 50 to 60Hz AC, consumption < 25VA Physical: 483mm (19 inches) W, 43.6mm (1.75 inches) H, 295mm (11.6 inches) D, weight 8.8lbs / 4kg
