Used City Theatrical PDS-750 TR | For Sale
Updated YesterdayItem# 53395

City Theatrical
View more Sale Inventory

Buy It on UsedLighting.com

Description

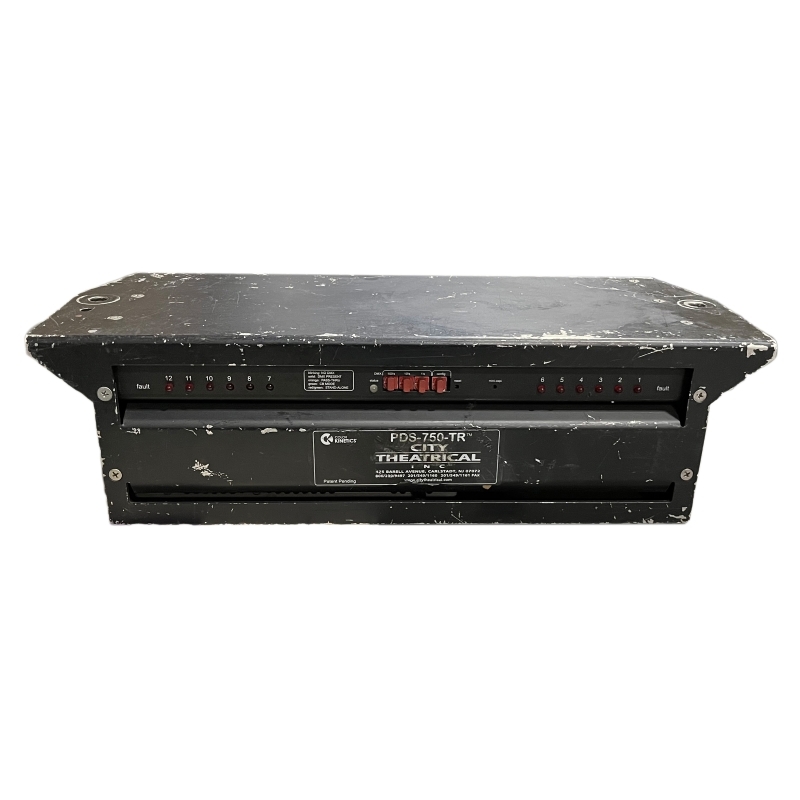

These units show signs of heavy wear but are in good working condition.  The City Theatrical PDS-750-TR Touring CB Power Supply provides power and DMX control capability for up to 12 Color Kinetics ColorBlast 12 or 24 ColorBlast 6 luminaires (or other CK fixtures), while eliminating the need for field address programming with a Zapi. Built for rental and touring environments, it combines a rugged enclosure with standard entertainment-industry hanging and mounting options, making it well suited for temporary installs and frequent load-ins. Power and Control for Color Kinetics ColorBlast Systems Designed to streamline deployments of CK-compatible fixtures, the PDS-750-TR converts DMX 512 to the Color Kinetics control protocol and distributes +24VDC power and data across 12 outputs. It supports 100-240 VAC, 50/60 Hz mains power (auto-ranging) and includes a 750W internal power supply for reliable operation across common touring power environments. Addressing and Stand-Alone Operation For faster setup, the PDS-750-TR includes a one-touch Mini-Zapi feature for reconfiguring fixtures with the correct starting DMX address, plus a DMX address interface using three rotary BCD switches for straightforward DMX address configuration. When a console is not available, seven user-configurable fade and chase routines enable stand-alone operation, and in Stand-Alone Mode the selected routine is also output to DMX Pass-Thru to help synchronize multiple CB Supply systems. Connectivity, Modes, and Touring-Ready Hardware (12) 4P XLRF CK Data/24V power output connectors for fixture connections DMX input via 5P XLR male, isolated and repeated DMX pass-thru via 5P XLR female 24VDC 3A current limited per circuit output with LED fault indication Selectable output behavior: CB Mode (DMX converted to CK protocol and output selectively to each port per BCD address setting) and Pass-Thru Mode (all 512 DMX values converted to CK protocol and output on all ports) Heavy duty NEMA 1 steel and aluminum enclosure, with mounting points for C-clamps and a safety cable Physical Specifications Dimensions: 18.50”W x 5.22”H x 8.50”D Weight: 13.5 lbs
