Used TCM-1821 | For Sale Item# 37230

TAD
TAD
View more TCM-1821
View more Cabinet Speakers

Quantity 2
Condition Excellent / Few Scratches
Year 1993
Location Europe
Case Type Cardboard
Previous Use Demo/Refurb
Warranty 60 Day

Description

Previously used in a demo. Cleaned, maintained, and tested by in house technicians.

Passive speaker 2 way 1600W RMS

What's Included

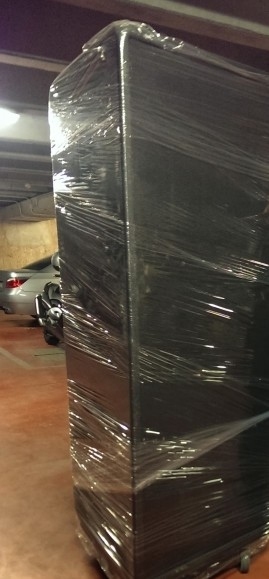

(1) TCM-1821 Enclosure, containing:
(1) TD-4002
(2) TL-1801

Featured & Other Cabinet Speakers

Featured & HOT Deals

TAD | Solaris

Product Information

TCM-1821

TCM-1821

What makes the TD-4002 from TAD (Technical Audio Devices) so well suited for professional applications is its wide 600Hz to 20kHz frequency response and high 110dB/W output efficiency. There's more of course. The TD-4002 also features a pure beryllium diaphragm, an aluminum edge-wound voice coil, a 5-slit phase plug, a rear compression system which suppresses cavity resonance, and a lightweight neodymium magnetic circuit.
Dependability is ensured by the tremendous care and precision which goes into the manufacture of TAD products. The TD-4002 is assembled using only selected parts and materials under strictly controlled conditions. All products are tested by experienced engineers utilizing the latest in computerized evaluation techniques. Whatever your audio needs, you can depend on TAD for unequaled performance and reliability.
*TD-4002Z does not include throat adaptor.

The TL-1801 from TAD (Technical Audio Devices) is a low-frequency loudspeaker featuring an 18-inch (460mm) driver. It features a high power maximum capacity of 800W thanks to the combined use of a 100mm diameter x 23mm winding depth, edgewise-wound, oxygen-free copper voice coil, a ferrite magnetic circuit with a high flux density of 11,200G, a lightweight transducer system using a cone made of highly rigid pulp and Kevlar fibers, and an advanced heat radiation design. As a result, powerful sound reproduction with a minimum of distortion is possible, even with high-power input.
The frame for the driver is made of rigid die-cast aluminum alloy to support the magnetic circuit and to allow the transducer system to reproduce powerful, accurate bass. Frame resonance is suppressed by the seven frame arms. The cone is laminated with macromolecular film, and its surface specially treated to make it water-repellent and to prevent cone breakup from degrading sound quality.
Lightweight moving parts are employed and the voice coil is of the long-travel design, to ensure a high sensitivity of 96.5dB/1W, an exceptionally high figure for its size. The large input terminal permits direct connection of speaker Cables up to 14mm (6 Gauge) in diameter.
