KEY FEATURES:
? Ideal digital substitute of the analog
par can
? World's #1 truss toner
? 75% to 82% energy saving compared
to traditional technology at the same
brightness
? Cosmetic design for hi-end
installations, only 3 kg (7 lbs)
? Thick aluminum, long lasting light
source in long lasting body
? Variable light projection angles via
quick lens change (standard: 12deg;
optional: 30deg, 13degx40deg, 110deg)
? No fan, no maintenance, no noise
? Can be transformed in IP 65 at any time
? ETL approved
? Internal/external gel frame (standard
size for lighting industry)
? Auto-sensing power 90v-250v
? Smart build ??Quick Stand tucked
into yoke
SPECIFICATIONS: ? RGB color mixing
? Standard lens 12deg
? Electronic Dimmer (2 different curves selectable)
? Electronic Strobe, synchronized, random, Pulse
effect
? Flicker free
? Double yoke for easy ground standing or truss
hanging
PHYSICAL SIZE:
? Length: 208 mm (8.2 in)
? Width: 162 mm (6.4 in)
? Height: 256 mm (10.0 in)
? Weight: 3.5 kg (7.7 lbs)
LIGHT SOURCE:
? 36 Luxeon leds, 1.2 W each, 12 Red, 12 Green, 12
Blue
CONTROL PROTOCOL AND PROGRAMMING:
? USITT DMX512/1990
? Dmx channels: 6
? Setting and addressing: binary dip switch or
remotely
? 4 Internal automatic programs
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
? AC power: 90-250 V, auto sensing, 50/60 Hz,
2m (6.6 ft) integral cable without power plug
? Power consumption: 0.2 A at 230 V, 0.5 A at 115 V
? DMX data in/out: 3 pin locking XLR
OPTIONS: ? 30deg lens kit (# 9167)
? 40degx13deg elliptical lens kit (# 9167/2)
? 110deg flood reflector (# 9168)
? Frame for internal frost filter (# 9169)
? Frame for external frost filter (# 9169/1)
? 4 leaf barndoor (# 9164)
? IP 65 rear panel (black: # 08E, silver: # 08/1E)
? 5 pin locking XLR (# 9189)
AVAILABLE VERSIONS:

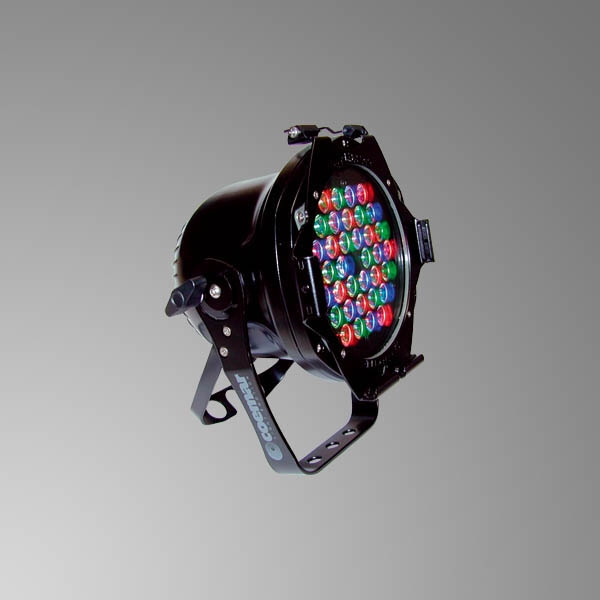

ParLite Led - # 9165
argento/silver
ParLite Led - # 9165/1
nero/black
Coemar
Founded in 1933, Coemar Spa is a developer, manufacturer, and seller of lighting products and industry innovation for entertainment, architectural, and commercial applications, guaranteeing unique professional pre-sale and post-sale services. Coemar, whose headquarters are based in Castel Goffredo (MN), Italy, has grown to over 400 employees/associates around the globe, with distribution throughout almost 70 countries.
COEMAR USA (formerly Tracoman Inc.) was formed for its second run in 1999 by industry veteran GERARD COHEN, who initially struck gold with Tracoman Inc. the first time around.
Used LED Lighting
LED lighting is a specialized kind of stage lighting which is highly valued by technicians due to its high light output and low power consumption. Used as an alternative to traditional stage lighting such as halogen lamps, LED stage lighting is a more than capable alternative for just about any kind of application, although it is primarily used for lighting cycloramas, and for side, back and top lighting.
In addition to these uses, LED lighting can be used to ??blind the audience?, a nice special effect which involves briefly exposing the audience to a direct light beam from the LED stage lighting at crucial moments of the concert or show. LED wash lights are also great for applying a technique known as ??wall washing?, thanks to the high intensity of their light beam.
LED wash lights can provide the full spectrum of light colors, despite usually only being fitted with green, blue and red LEDs. The operator simply needs to adjust the intensity of the various colored beams of light, manipulating them to achieve the desired color spectrum.
LED lighting is provided by three pieces of equipment. The most common are LED Pars, which imitate traditional stage lights and have a number of LEDs mounted onto them. Striplights, which are basically a long length of LED wash lights, are also very common, while the versatility of moving LED lights is also becoming an increasingly preferred option for many stage lighting technicians.
Besides its higher light output and lower power consumption, LED lighting has a number of other advantages. One is that they have an exceptionally high heat tolerance, which means they can be used almost anywhere without worrying about them becoming damaged due to overheating. Another advantage of LED lighting is that it has a much longer shelf life than traditional lighting.
