Used EL210 with ELS212 Sub - PA System from VTC — Complete System

Used EL210 with ELS212 Sub - PA System | For Sale Item# 32472

VTC
VTC
View more EL210
View more Line Array Speakers

Quantity	1
Condition	Normal Wear & Tear
Year	2007
Location	North America
Case Type	Covers
Previous Use	Rentals
Warranty	2 Day

Description

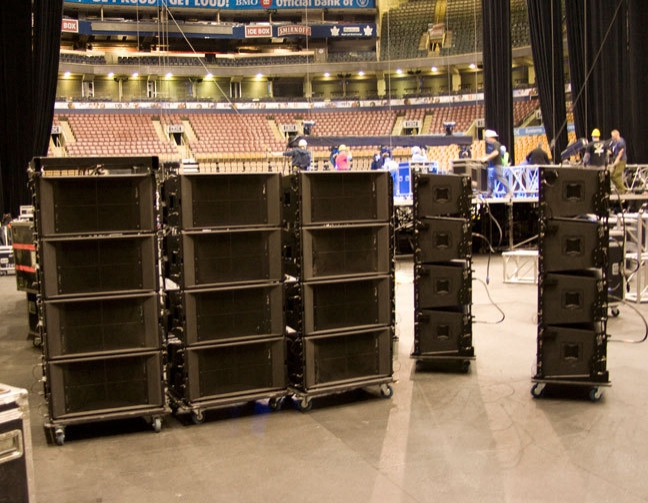

Professionally maintained VTC EL210 and ELS212 PA system. Contains twenty-four EL210 mid-hi line array and sixteen ELS212 sub elements. The both the EL210 and ELS212 are equipped with fly hardware. Amplification is provided by NEW VTC V42, VTC V44 and VTC V64 power amplifiers. The system is processed by a VTC DLMS4080system processor. Comes complete with racks, speaker covers, cabinet dollies and power and speaker cables.Age is approximate as this package has different parts from various years.

What's Included

(24) VTC EL210
(16) ELS212
(16) ELS118
(10) Vertical Directivity Adjustable in 1 Steps
(90) Horizontal Directivity
5/8 Baltic Birch Cabinet Construction
Integrated Rigging
LF Components: 600 watt, 16 ohm 10-inch woofer w/ 2.5-inch voice coil Neodymium magnet assembly (x2)
HF Components: 80 watt, 16 ohm driver - 1.75-inch annular polyester diaphragm w/1-inch exit - Neodymium magnet assembly (x2)

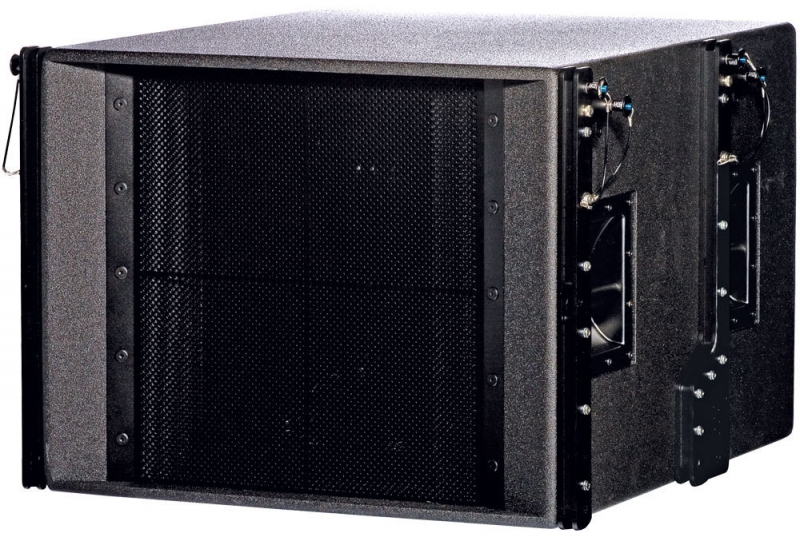

VTC ELS212
Tapped Horn Subwoofer Design (patent pending)
Extremely High SPL for Cabinet Size
Low Distortion Down to 35Hz
Solid Marine Grade Plywood Cabinet Construction
Driver Components: 800 watt, 8ohm 12-inch Long Excursion Neodymium Woofers (x2)
DLMS4080 System Processor
4 Inputs / 8 Output Configuration
Complete Independent Gain, Delay & Phase Control of

Each Input & Output
2 Tunable Crossovers on each Input & Output (24 Total)
8 Tunable Parametric EQ Filters on each Input (32 Total)
31-band Graphic EQ on each Input
8 Additional Tunable EQ Filters on each Output
(Selectable Parametric, Hi/Low Shelving, All Pass - 64 Total)

USB, RS232 and Ethernet Connectivity
Pro Control PC Based Visual Editing Software Included
Full Front Panel Parameter Control
Security Lockout
VTC Amplifiers V42/V44/V64
Continuous Average Power @ 8 Ohms 475/750/1250 Watts (x2) Both Channels Driven
Continuous Average Power @ 4 Ohms 750/1200/2000 Watts (x2) Both Channels Driven
Front panel power, Protect, Activity and Clip LED's
Speakon outputs
Balanced XLR & 1/4" TRS balanced inputs & parallel thru-puts
