Used EL210 and ELS118 PA System from VTC — Complete System

Used EL210 and ELS118 PA System | For Sale Item# 32451

VTC
VTC
View more EL210
View more Line Array Speakers

Quantity	1
Condition	Normal Wear & Tear
Year	2007
Location	North America
Case Type	No Case
Previous Use	Rentals
Warranty	7 Day

Description

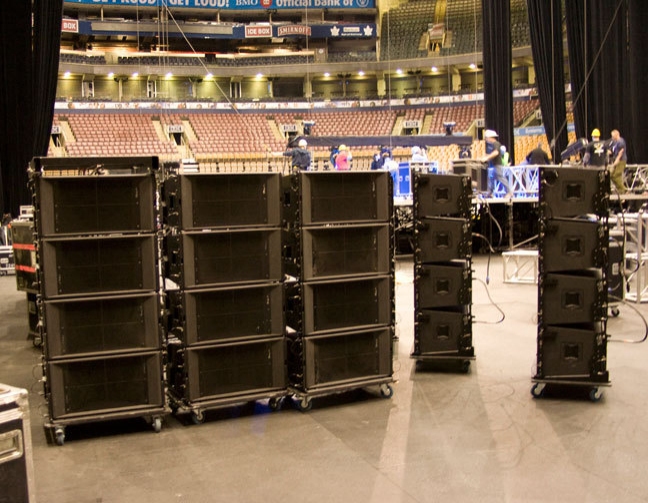

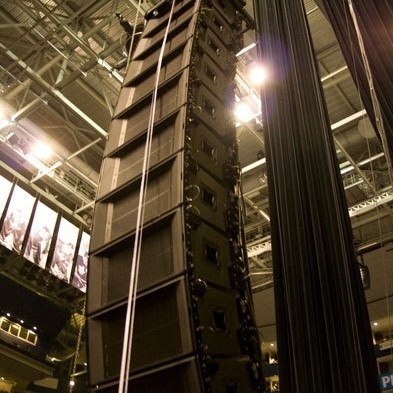

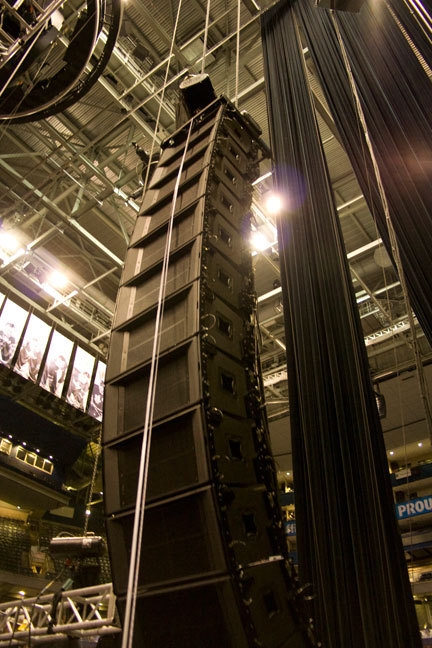

Contains 24 EL210 mid-hi line array and 16 ELS118 sub bass elements. The EL210 is equipped with integrated fly hardware and two ELDB8 bumpers. Amplification is provided by new VTC V42, VTC V44 and VTC V64 power amplifiers. Is processed by a VTC DLMS4080 system processor. Comes complete with racks, speaker covers, cabinet dollies and power and speaker cables. Age is approximate as this package has different parts from various years.

What's Included

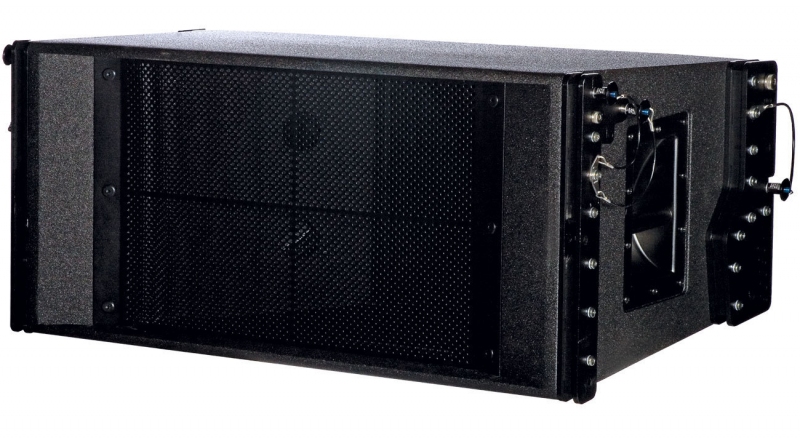

(24) VTC EL210
(16) ELS118
(10) Vertical directivity adjustable in 1 steps
(90) Horizontal directivity
(1) 5/8 Baltic birch cabinet construction
Integrated rigging
LF components: 600 watt, 16 ohm 10-inch woofer w/ 2.5-inch voice coil Neodymium magnet assembly (x2)
HF components: 80 watt, 16 ohm driver - 1.75-inch annular polyester diaphragm w/1-inch exit - Neodymium magnet assembly (x2)

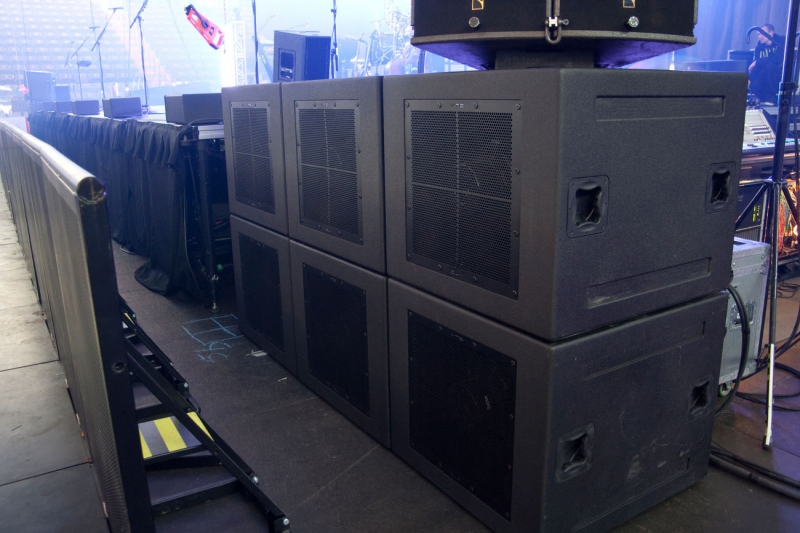

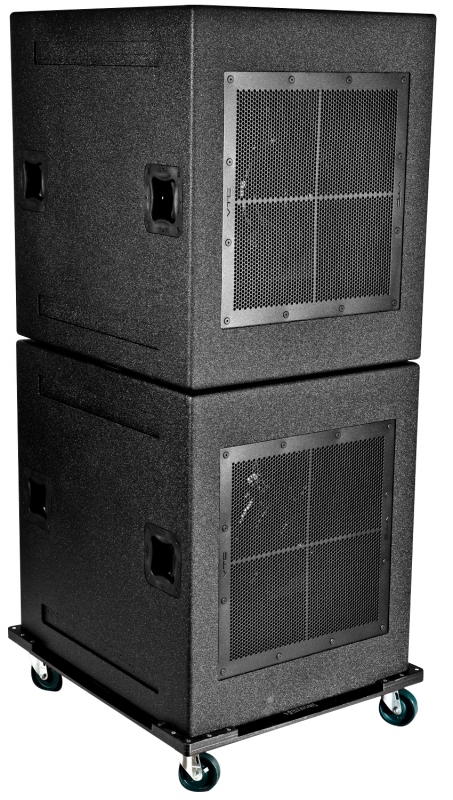

VTC ELS118
Tapped Horn Subwoofer Design (patent pending)
3600 watt, 4ohm Long Excursion High Power 18-inch Woofer (with 5.3-inch Voice Coil)
Low Distortion Down to 35Hz
Maximum SPL 140dB
Solid Marine Grade Plywood Cabinet Construction

DLMS4080 System Processor
4 Inputs / 8 Output Configuration
Complete Independent Gain, Delay & Phase Control of
Each Input & Output
2 Tunable Crossovers on each Input & Output (24 Total)
8 Tunable Parametric EQ Filters on each Input (32 Total)
31-band Graphic EQ on each Input
8 Additional Tunable EQ Filters on each Output
(Selectable Parametric, Hi/Low Shelving, All Pass - 64 Total)
USB, RS232 and Ethernet Connectivity
Pro Control PC Based Visual Editing Software Included
Full Front Panel Parameter Control
Security Lockout

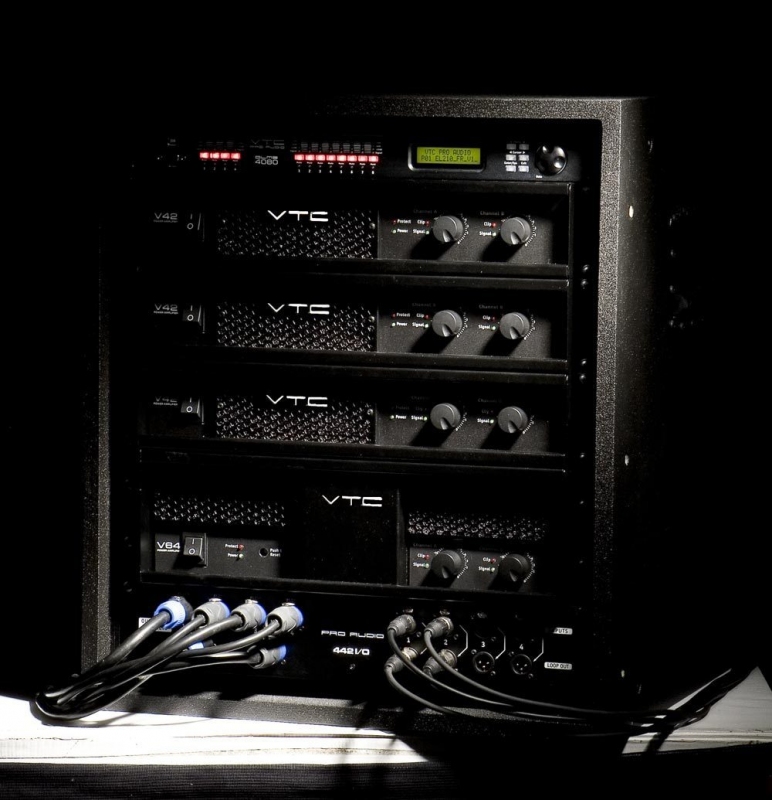

VTC Amplifiers V42/V44/V64
Continuous Average Power 8 Ohms 475/750/1250 Watts (x2) Both Channels Driven
Continuous Average Power 4 Ohms 750/1200/2000 Watts (x2) Both Channels Driven
Front panel power, Protect, Activity and Clip LED's
Speakon outputs
Balanced XLR & 1/4 inch TRS balanced inputs & parallel thru-puts
