Used DL.2 | For Sale Item# 44958

High End Systems
High End Systems
View more DL.2
View more Intelligent Lighting Projectors

Find It on UsedLighting.com

Quantity 4 (Minimum Order 4)
Condition Normal Wear & Tear
Year 2003
Location North America
Case Type Cased
Previous Use Touring
Warranty 30 Day

Description

Find It on UsedLighting.com

What's Included

(1) DL.2 with LX55
(1) Flight Case

Used DL.2 | For Sale | High End Systems

Featured & Other Intelligent Lighting Projectors

Featured & HOT Deals

High End Systems | Solaris

High End Systems

High End Systems

Buy High End Systems

From Ani di Franco to ZZ Top concerts. From Super Bowl half time to popular music award shows. From trade shows and talk shows to Olympic ceremonies or church sanctuaries.At High End Systems Inc., we innovate and create the lighting products...

Product Information

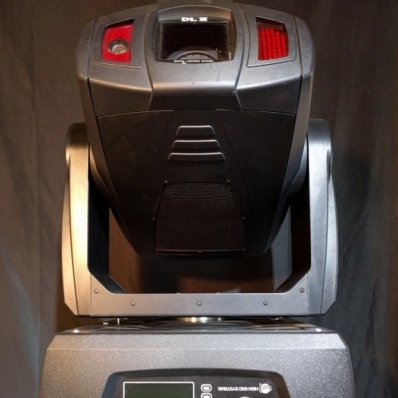

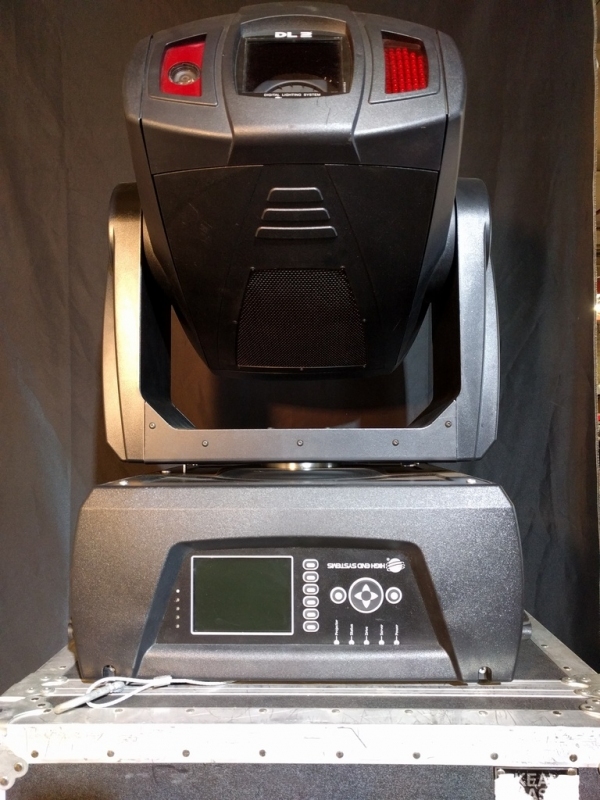

DL.2

DL.2

Features

Full-Motion 5000 Lumen Digital Video Projection System

Integrated Media Server with 3D workspace

Loaded with over 950 stock media files

Loaded with almost 100 stock 3D objects

Built-in Camera for Live Video

Accepts custom content

Remote content management via PC and MAC

240 degrees tilt and 400 degrees pan

DL2 ships standard with a Super HAD sensor camera

The DL2 is 115lbs or 52.3kgs.

There are RGBHV, VGA, and S-video inputs. While the graphics engine will not process the RGBHV and VGA inputs (i.e. they are passed through directly to the projector), the S-Video input can be routed and manipulated through the graphics engine as another media source.

The DL2 has digital dimming as a graphics engine feature as well as an iris for total black out.

Intel Pentium 4 w/HT technology

2GB DDR2 RAM

It's a Seagate SATA drive

ATI Radeon X850 XT, this card is also the video capture card for the Sony camera.

Window XP embedde

Christie Digital LX50

5000 ANSI lumens

1200:1 Ratio full on/full off

Throw Ratio 1.8 2.4:1

Lamp 300 W NSH

4:3 native Aspect ratio with 1024 x 768 resolution

Built in Camera with Super HAD sensor technology

Resolution 768 x 494 pixels

Optical Zoom range18x

The camera has infrared (night vision) capabilities. Video captured using the Night Vision system is a monochrome image but can be colorized if a DL2 graphic engine filter is chosen. The IR illumination system is dim-able and controlled from the lighting console.

High End Systems

From Ani di Franco to ZZ Top concerts. From Super Bowl half time to popular music award shows. From trade shows and talk shows to Olympic ceremonies or church sanctuaries. At High End Systems Inc., we innovate and create the lighting products and control systems that illuminate some of the world's biggest artists on the largest stages, as well as film and television sets, cruise ships, theme parks, restaurants and retail spaces. Now entering our fourth decade, we're one of the world's largest entertainment lighting manufacturers, a pioneer in new digital lighting technology and producer of the industry-preferred lighting controller technology. We attribute our success to staying in touch with the needs of the entertainment lighting community. Product research and development at our Austin, TX headquarters is an ongoing collaboration between in-house engineers and lighting designers in the field. This collaboration is largely to thank for our status as a major industry innovator and intellectual property holder. We're not only keeping pace with industry developments - we're guiding them. We're constantly pushing the creative and technological envelope to meet customer needs and stay ahead of the curve. As members of the entertainment community, we know reliability is paramount. We maintain rigorous manufacturing standards, while providing industry-leading customer support services.

Used Intelligent Lighting Projectors

Intelligent projectors are a special type of lighting equipment used in theatre and concerts, which are used to project a beam of light onto a specific location on the stage. Intelligent projectors, also called moving head projectors, and a unique kind of digital lighting?? they have no actual lens, and so the spread of the light beam is always very narrow. Moving digital luminaires such as these intelligent projectors are very popular with lighting technicians, as the narrow beam of light allows them to define a very small portion of the stage, while leaving the rest of the performance area in darkness. This effect is referred to as a ??godspot effect?. They are often combined with special effects such as fog or haze in order to create very atmospheric conditions on the stage. Intelligent projectors use two reflectors ?? a parabolic reflector for organizing the light into beams that are virtually parallel, and a spherical reflector at the front of the digital lighting, which reflects the light beam onto the parabolic reflector, thus lessening the amount of spill. This design results in intelligent projectors producing an extremely intense and very narrow light beam, which is neither easily modified or controlled.
