Used AE-9 | For Sale Item# 42612

Apogee
Apogee
View more AE-9
View more Cabinet Speakers

Quantity 1
Condition Normal Wear & Tear
Year 1995
Location North America
Case Type No Case
Previous Use Installation
Warranty 7 Day

Description

Previously used on an installation. Cleaned, maintained, and tested by authorized technicians.

What's Included

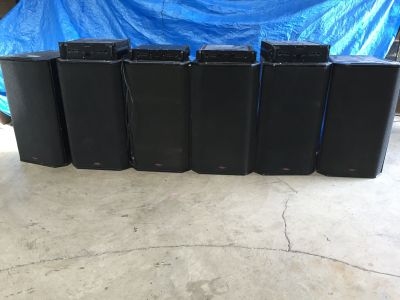

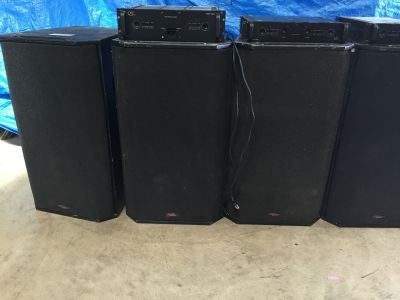

(4) AE-9

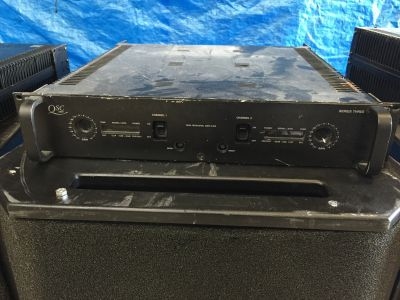

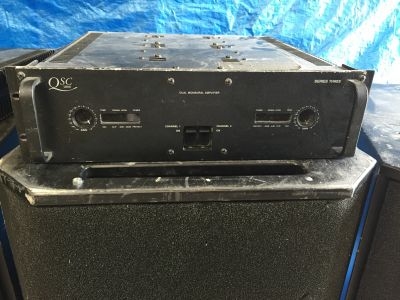

(2) Series 3 3800 Power Amplifier
(2) Series 3 3500 Power Amplifier

Featured & Other Cabinet Speakers

Featured & HOT Deals

Apogee | Solaris

Apogee

Apogee

Buy Apogee

Apogee Sound was founded in 1985, with the highly-focused goal of manufacturing professional audio equipment to the finest possible professional standards. Beginning with professional loudspeakers for the sound reinforcement market, the company...

Product Information

AE-9

AE-9

Driver Complement:
Low Frequency: One Apogee 15"(381mm) permanent magnet conetype
driver is treated with a waterproofing compound, providing
resistance to moisture, and enabling long-term stability of cone
resonance and cone mass parameters
Mid Frequency: One Apogee 10"(254mm) midrange cone driver is
treated with a waterproofing compound (SX only*)
High Frequency: One Apogee 1"(25mm) Compression Driver
tweeter is treated with Ferrofluid for greater power handling
capability, lower distortion, and control of short-term impedance rise
Compatible Processors:
DLC24 Digital Controller

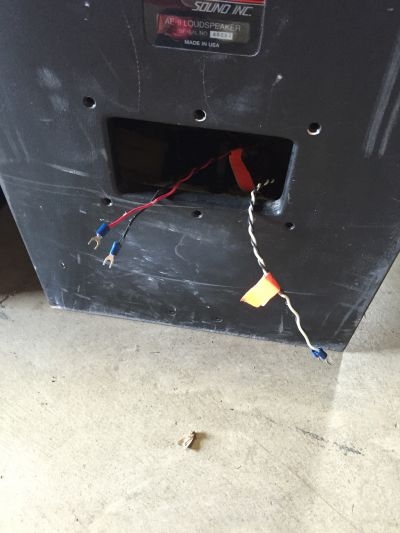

Input Connectors:
Neutrik NL4MP Speakon connectors standard; Cannon EP series
and gas-tight barrier strips optional
Handles:
Ten handles designed as an integral part of the enclosure (no
moving parts)
Grille:
Powder-coated, diamond-punched steel with acoustic foam covering
Trim:
Optional protective steel pieces on top and bottom ends; powdercoated
for durability
Rigging Hardware:
Six 12-gauge steel nutplates, mounted three on top and three on
bottom, recessed, nominally flush; accepts 3/8"-16 thread (10mm
nutplate or Aeroquip Pan fittings optional); nutplates are backed
with 12-gauge steel internal brackets
Finish:
Textured high-strength black epoxy paint; other colors optional
Enclosure Type:
20 trapezoidal, fully horn-loaded, vented bass
Cabinet Construction:
Multi-ply birch with stainless steel fasteners
Concert
Loudspeaker System
Engineering Data:
Description:
Format:
Bi-amped/Three-way/Electronically-coupled
Dispersion:
H: 60 x V: 40
Frequency Response (1m on axis):
44 Hz to 17 kHz 3 dB
Max. SPL (@1m):
126 dB cont./132 dB peak
PTML (peak transient mechanical limit):
144 dB
Sensitivity (1W @ 1m):
LF: 98 dB/44 Hz to 300 Hz
MF & HF: 101.5 dB/300 Hz to 17 kHz
Nominal Impedance:
8 ohms, each driver
Max. Power Handling:
LF: 500W cont./1800W peak
MF: 300W cont./1200W peak
HF: 75W cont./300W peak
Dimensions:
front: 22"(559mm) W x 38"(965mm) H
rear: 15"(381mm) W x 38"(965mm) H
depth: 23"(584mm) D
Weight:
145 lb. (65.8 kg)
The AE-9 is a bi-amped, three-way
system offering exceptional power
handling, smooth frequency response,
and predictable directional control. It
can be easily positioned in spaces that
are too small for other horn-loaded
systems, and is fully arrayable.
AE-9
* SX weather treatment for harsh environments
Specifications subject to change without notice. 55-0027-01B 2006 Bogen Communications, Inc. 06/12
Polar Measurements AE-9 (6 dB/division, normalized) Frequency Response AE-9 (with controller)
20 50 100 200 500 1K 2K 5K 10K 20K
dB/
DIV
0 30
60
90
120
150 180 210
240
270
300
330 0 30
60
90
120
150 180 210
240
270
300
330 0 30
60
90
120
150 180 210
240
270
300
330
0 30
60
90
120
150 180 210
240
270
300
330 0 30
60
90
120
150 180 210
240
270
300
330 0 30
60
90
120
150 180 210
240
270
300
330
0 30
60
90
120
150 180 210
240
270
300
330 0 30
60
90
120
150 180 210
240
270
300
330 0 30
60
90
120
150 180 210
240
270
300
330
62.5 Hz 125 Hz 250 Hz
500 Hz 1,000 Hz 2,000 Hz
4,000 Hz 8,000 Hz 16,000 Hz
H
Measured in a free-field anechoic environment using a swept one-third octave input.
All polar measurements obtained in a freefield
environment at 10 increments.
Dimensional Drawings AE-9 (dimensions in inches and millimeters)
Processor Notes:
The DLC24 Digital Loudspeaker Controller is a digital engine with an analog
surface. It combines the most advanced technology available with intuitive
interfaces to provide the key Elements that ensure optimal loudspeaker
system performance and management in a variety of live sound and fixed
installation applications.
The controller provides factory-set equalization curves to smooth the
response, protective limiting, and active crossovers (for bi-amplified models
and subwoofers). 10 dB
