|Condition||Normal Wear & Tear|
|Case Type||No Case|

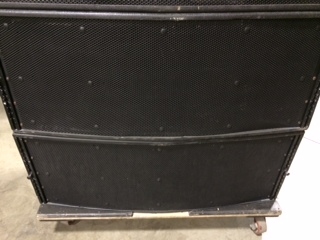

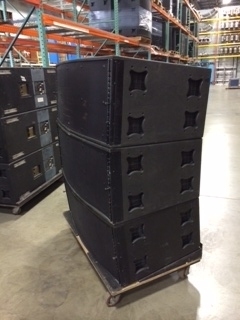

Previously used on various tours. Cleaned, maintained, and tested by authorized technicians.Find It on UsedLighting.com
Development of the new EV X-Line? system was driven by the need for a high-level concert touring enclosure that combines the sonic impact and vocal intelligibility of the renowned X-Array? system with the uniform, predictable coverage that only a line-array configuration can deliver. The EV engineering team set out to develop the next generation of line-array systems, combining their years of experience in the development of X-Array? with the absolute latest state-of-the-art technologies. As a matter of course, X-Line? features the essential acoustical advantage of RMD?.
The X-Line? system was designed to provide wide horizontal dispersion (90 degrees) from a single vertical line array while providing exceptionally coherent wavefront summing in the vertical plane. At the heart of X-Line? is a proprietary high-frequency wavefront alignment and summation device - the Hydra? -- that provides Planar and time-coherent signal addition. The broad bandwidth vertical Planar summing provides uniform sound field distribution throughout the listening area.
Stereo imaging is improved by the X-Line's full-bandwidth mid-bass loading. Extended low-frequency polar control produces more uniform power response, further enhancing overall system intelligibility. The overall power response of the X-Line? is very uniform across a wide frequency spectrum, thus enabling the system's very musical sonic character.
High-output, 2000 watt, 3-way LF/MB/HF linear array technologysystem, 5deg trapezoidal cabinet design for the lower "J" section of the linear array, typically for medium throw assignment l 120deg horizontal coverage, approximate 8deg vertical coverage angle l HF section comprised of 3 neodymium ND5A HF compression drivers, dual 8-in. neodymium ND08 MB woofers mounted on a wide midbass horn, and dual 15-in. EVX 155RMDDP (plate) LF woofers l New EV Hydra? time synchronized HF vertical plane wave generator provides excellent far-field summing. HF section is asymmetrically loaded providing flexibility to configure systems with HF placed on or off stage l Ring Mode Decoupling (RMD) provides level independent fidelity, greater mid bass clarity and high frequency accuracy l New proprietary rigging allows for rapid Venue load-in and load-out, linking hardware included l One of four application specific X-Line? models
Electro-Voice Prominent maker of microphones; also loudspeaker systems, amplifiers.
