Performance Audio
View more Truss
View more Pre-Rig Truss
| Quantity | 1 |
| Condition | Normal Wear & Tear |
| Location | North America |
| Previous Use | Rentals |
| Warranty | 2 Day |

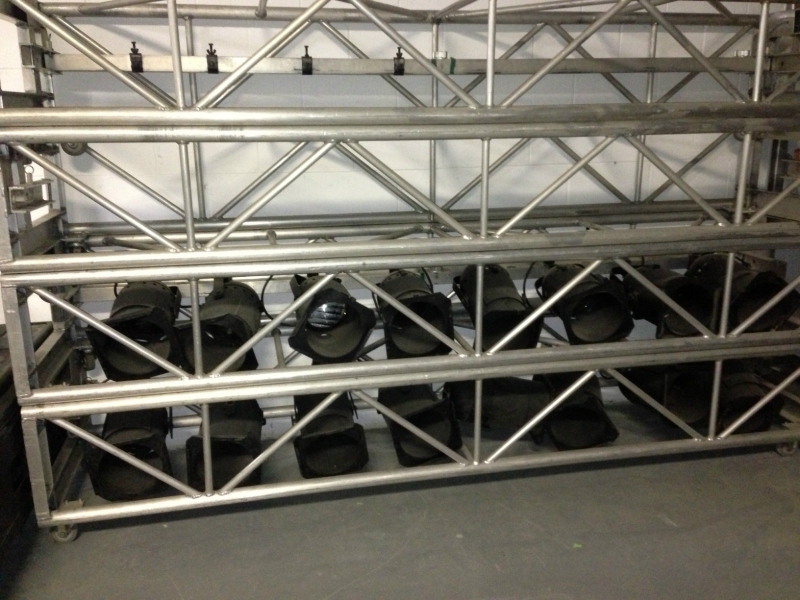

Consist of 5 loaded 10 feet truss each with 8 par 64 lights and has 2 soca inputs feeding 12 L5-20 panel mount connectors. You can add 4 other fixtures which are available on each loaded truss. 4 empty 5 feet truss and 2 empty 10 foot truss complete the package. This system can be deployed as a downstage truss with 2 loaded 10 feet , one 10 feet empty in middle ( use circuits in loaded truss for lekos other fixtures) and two 5 feet truss for the ends. The upstage truss can be three loaded 10 feet truss with another 12 extra available L5-20 panel mount connectors.
The internal bars are extruded aluminum I-beam style with Twelve (12) L5-20 outlets and two 19pin socapex. They are so strong because of their design. They use a special quick clamp (included) to hold the fixture to the bar. This also allows the fixtures to glide along anywhere on the bar and then lock down in position. You may hang fixtures from either side of these bars (top/bottom). Are wired as 6 circuit using standard 19pin socapex, Lots of flexibility. Bars are just shy of 10 feet long. The internal bars were made to fit into 10 feet Petes Lights prerig box truss.

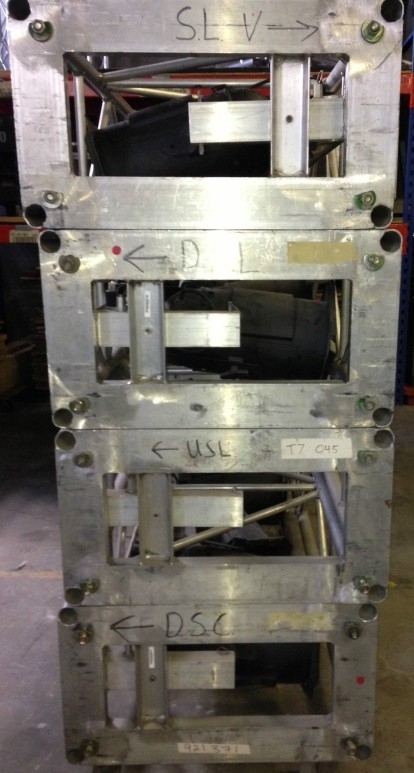

The truss can travel 5 high stacked if need be . The fixture bar pivots and drops once you fly it off ground by simple pull pins. There is also room to have drop down bars at back of truss to put in other fixtures. Age is approximate as this package has different parts from various years.
5 -10 foot truss loaded with 8 par 64 fixtures, 2 soca panel mount connectors feeding 12 L5-20 circuit

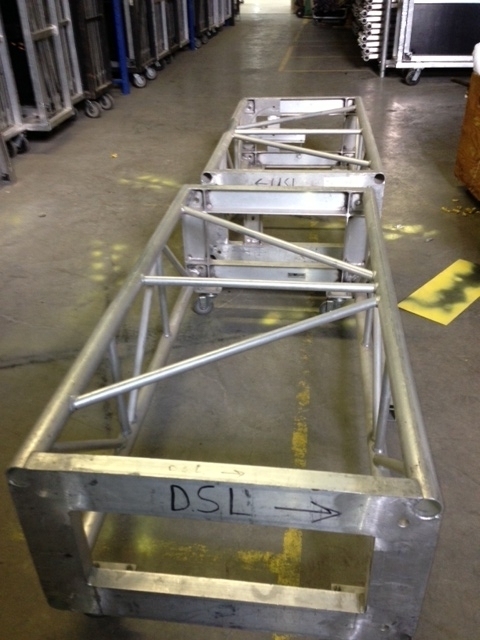

4 5 foot truss unloaded
2 10 foot truss unloaded
Grade 8 bolts and washers for connection
Manufacturer Petes Lights (Performance Lighting)
Additional fixtures lekos,fresnels, pars are also available as well as cabling and dimmers - sold seperate
