This item is no longer available for sale
d&b audiotechnik
View more Q1
View more Line Array Speakers
Quantity | 1 |
Condition | Excellent / Few Scratches |
Location | North America |
Previous Use | Corporate |
Warranty | 3 Year |

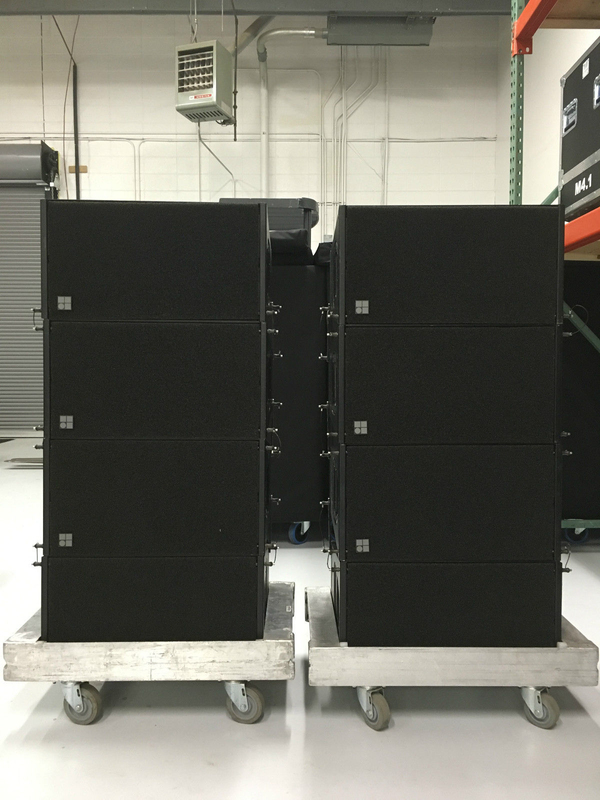

This package is a complete Turn-Key system consisting of (8) Q1's, (6) B2's, and (3) D20 Amplifiers. The subs come with lids and covers and the arrays come in their touring carts.
These unit's have only been deployed by trained personnel and used mostly in corporate events. When not in use, these units are kept in an environmentally controlled shop.
The system consists of the following:

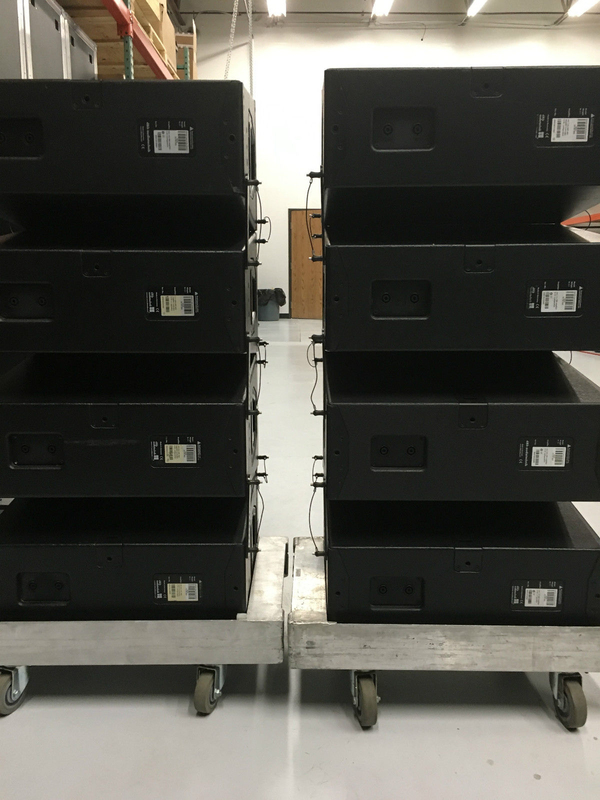

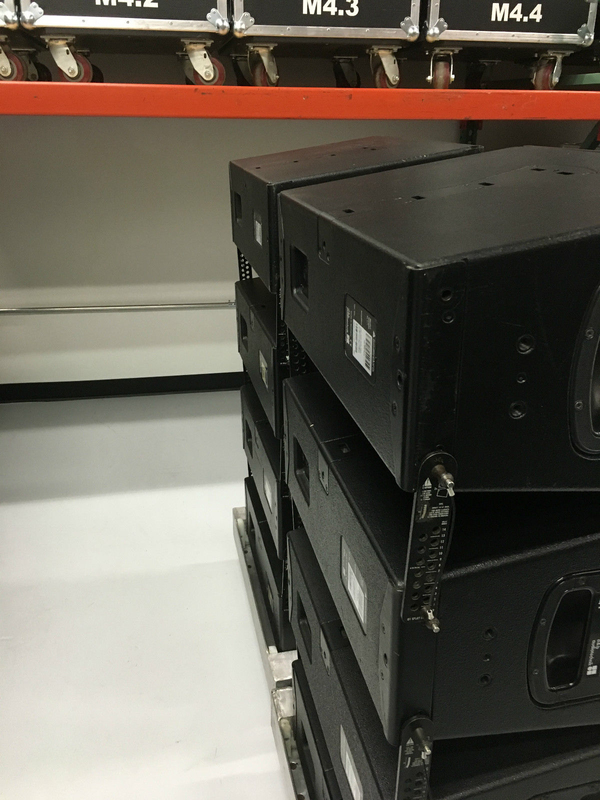

8 x Q1 from 2012/2013
2 x Q flying frames
2 x Q hoist connector chains
2 x 4-way touring carts

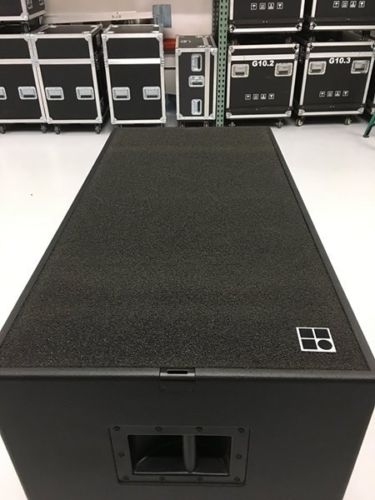

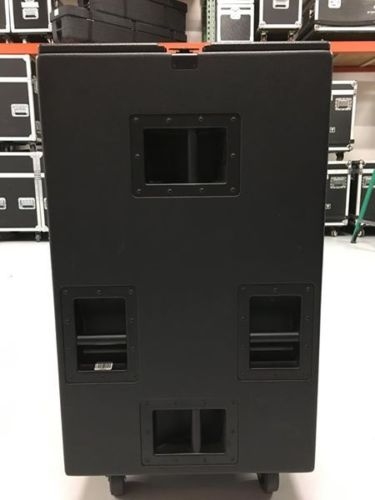

6 x B2 from 2014/2015
6 x B2 lid

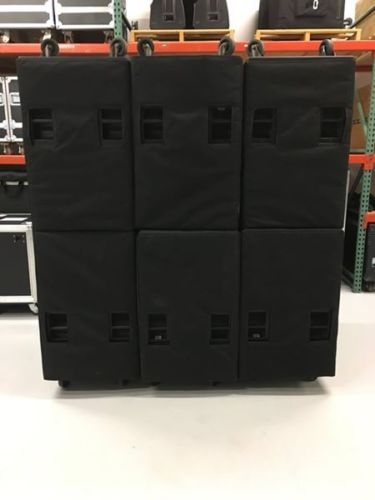

6 x B2 padded covers
3 x D20
d&b audiotechnik has been developing, manufacturing and distributing loudspeaker systems since 1981. The company operates internationally in the field of electroacoustics to produce high quality products for reinforcement of speech and music....
The Q1 is a passive two-way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 1.3" HF Compression Driver fitted to a toroidal wave shaping device. The 75deg constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15deg allows the Q1 to be used to construct vertical columns that produce a curved coherent wave front. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0deg and 14deg. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15deg to 30deg dispersion, up to twenty cabinets with a fully user and Venue defined vertical profile. The Q1 cabinet is constructed from marine plywood, incorporates a pair of handles and has an impact resistant paint finish. The front of the loudspeaker is protected by a rigid metal grill covered with replaceable acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.
Amplifiers
The Q1 can be driven either by d&b's D6 or D12 dual channel power amplifiers configured for the Q1. More detailed information on specific loudspeaker setups with d&b amplifiers is available either in the relevant loudspeaker or amplifier manuals.
d&b audiotechnik has been developing, manufacturing and distributing loudspeaker systems since 1981. The company operates internationally in the field of electroacoustics to produce high quality products for reinforcement of speech and music. Through the amalgamation of technological developments, system integration principals, quality of construction and standards of service, d&b pursues a systems approach that includes all aspects of design, development, manufacture and support. d&b's loudspeakers are used globally in rental and installation markets for events, multimedia, musicals, concert halls, theatres, opera houses, broadcast and everything from the smallest conference room to the largest stadium.
