|Condition||Normal Wear & Tear|

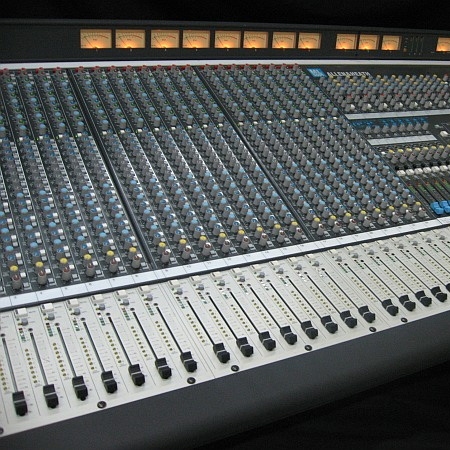

48 channels. Console was used as a FOH/monitor board. Throughout its' use, it has been subject to routing maintenance and cleaning (most recently in July 2008). It is in excellent working order.
This unit has been fully tested and is 100% functional.

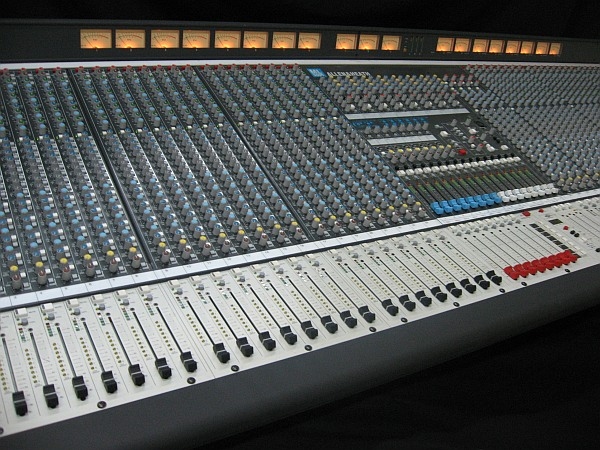

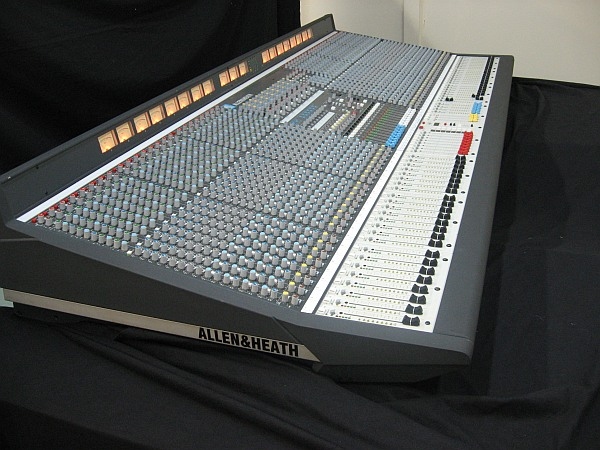

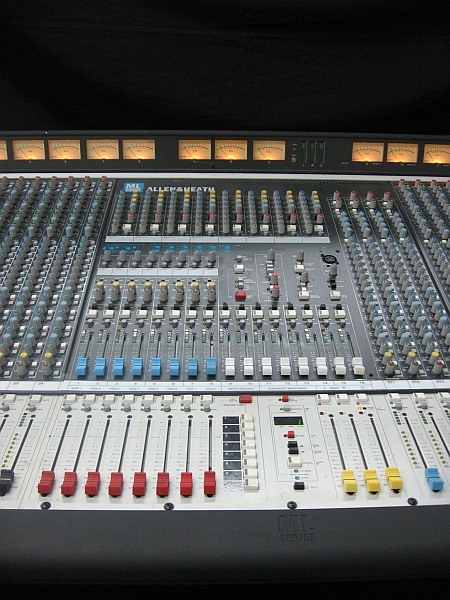

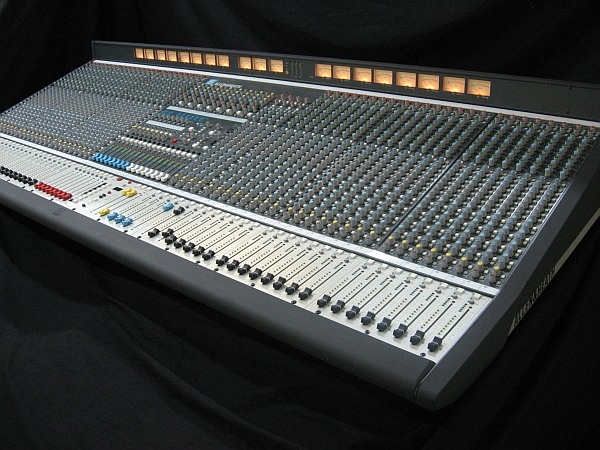

27 buss live sound VCA console
The ML5000 is a fitting flagship for our range, satisfying those loyal ALLEN&HEATH customers who wanted a console with the complete professional tool set.
We really set out to change the rules for VCA desks with this console, forever raising the pro audio industry's price / performance expectations. From its enhanced P/AFL facilities to its sidecar and dual Power Supply options, ML5000 is clearly capable of competing for touring work against old-style large format desks costing far, far more.
NEW: There is now a 'B' Option available with first 4 mono channels replaced with 4 stereo channels
The ML5000 embodies the professional sound engineer's ideal tool set ??a versatile, feature-packed and rider-friendly console, in an intuitive, walk-upand-go format. ML5000 is a dual function, LCRplus, 8 group, 16 aux, 12x8 Matrix, VCA console. Frame sizes range from 32+4 to 48+4 channels, with sidecar expansion to 96+4 channels. With such exceptional sound quality,
it's an engineer's dream!
? 32+4, 40+4, 48+4, plus up to 2x 24 input sidecars, total 96+4 channels
? 4 extra dual input stereo channels fitted as standard
? B option for 4 extra dual stereos in place of mono channels
? 8 VCA groups with mute and PAFL functions
? Dual functionality for mixing front-of-house, stage Monitors or both
? Monitor mode provides 16 auxes with pre switching, faders, inserts, mutes,bus and output meters
? FOH mode provides 8 groups with individual routing and 16 auxes
? LCRplus panning available from channels and groups.
? Stereo switching for up to 4 true stereo sends from pairs of auxes
? 12x8 Matrix with inserts and external inputs
? 8 mute groups
? 4 band, full sweep EQ with variable Q on midrange
? Swept 20-400Hz HPF
? Stereos can mix two balanced sources into one channel, includes L, R L+R mono switching
? Balanced inserts with separate send and return sockets
? 128 snapshot memories for recall of VCA assignments and mutes
? MIDI/RS232 ports for remote archiving and show control
? ALLEN&HEATH ML Archiver software available for PC control of the memories
? Single press clear or set all mutes or VCA assignments functions
? Talkback to any of the fader masters, Matrix, LR and C
? ClearComTM compatible intercom works with console headphones and TB mic
? Intelligent PAFL system PFL override AFL for quick multi-mix output/source monitoring
? Intelligent PAFL system AFL cancel PFL, all clear, auto-cancel or add modes
? Intelligent PAFL system Input PFL or stereo-in-place AFL
? Intelligent PAFL system mono or stereo AFL of masters and Matrix
? Solo-in-Place with last solo toggle and channel solo safes

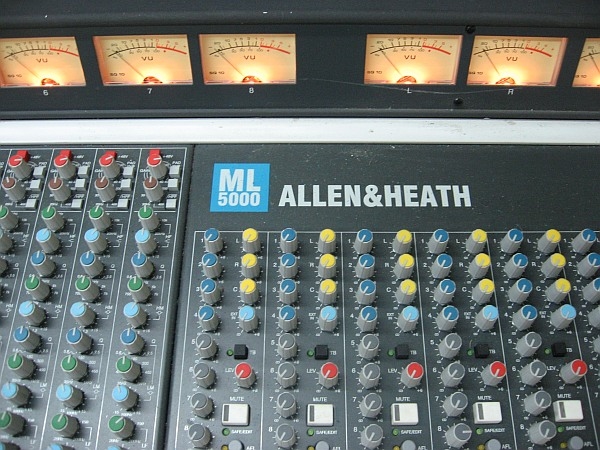

? Simultaneous LED bar and moving coil VU metering of all main outputs and P/AFL
? Fader driven engineers Listen wedge feed with insert in monitor mode
? Separate stereo headphones and local monitor control
? LCR to stereo engineer's monitor capability
? 1kHz oscillator / pink noise generator
? Preamp input capability for mic or line up to +30dBu
? Main, group, aux and Matrix outputs on balanced XLR
? 4-pin XLR lamp sockets ALLEN&HEATH LEDlamp available

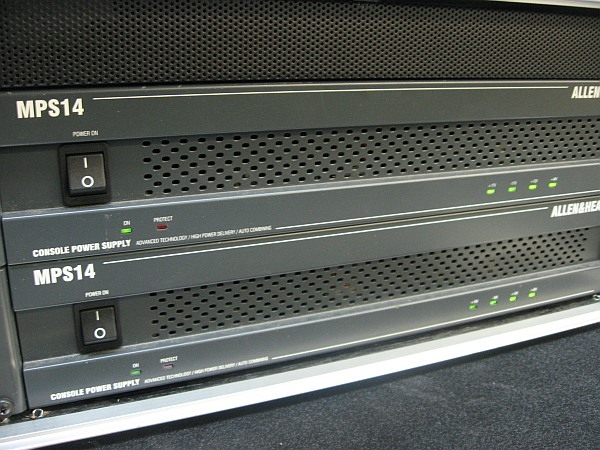

? Uses RPS14 external Power Supply with built-in combiner for a backup supply
? Internal aux jumper options for pre-insert, pre/post-EQ, pre/post-mute settings and direct output
We've built a lot of mixers in the last 35 years or so (over 160,000 at the last count) and we still get a huge buzz out of doing it well. It's an unbeatable feeling to know that at any time of day or night, right across the globe, there is an Allen & Heath mixer out there working hard, sounding great and making life a little easier for the guy at the controls.
ML5000 - 48 channel. In mint condition.
ML5000 - 32 Ch. Desk in Like New Condition w/2 PSU

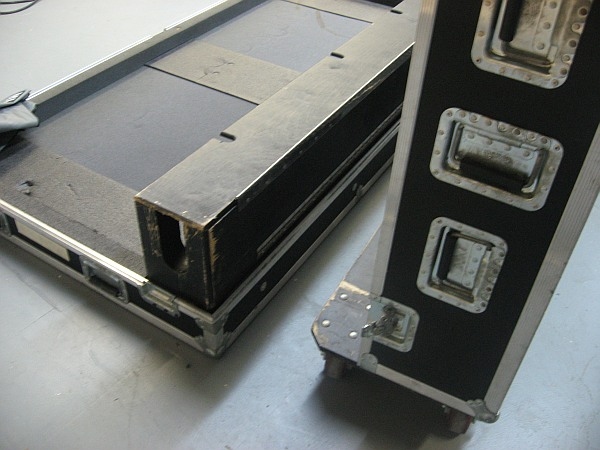

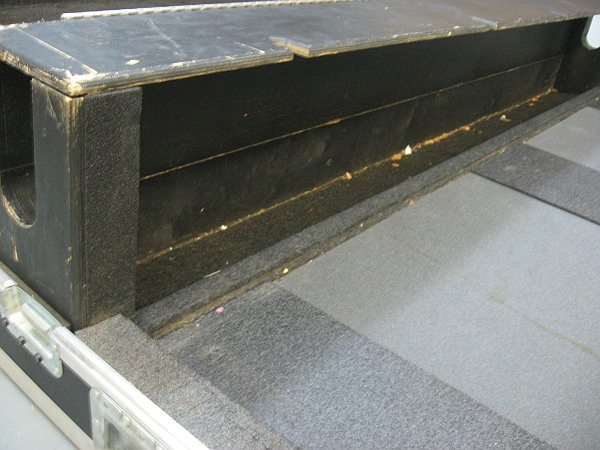

ML5000 - New (Full Manuf Warranty)+Doghouse Case + (2)PSU
ML5000 - (40)-CH console in Flightcase with (2)-PSUs.
ML5000 - From installation. 48 mono. 7 stereo. 16 aux.
ML5000 - Corporate used ML5000 with flight case in mint condition.
ML5000 - 32 channel console with case and PSU. Used on various rentals.
ML5000 52 Channel - This ML5000 is a 52 Channel Console and Comes with a Doghouse.
ML5000 - 40 Channel Version
