Used MAC 550 | For Sale Item# 13873

Martin

View more MAC 550
View more Moving Lights

Find It on UsedLighting.com

Description

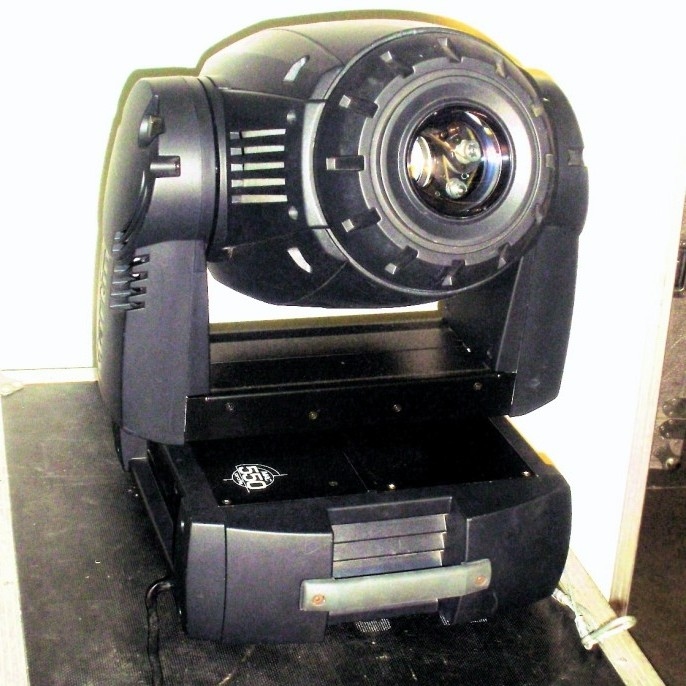

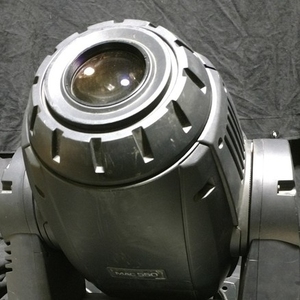

For sale are (8) Martin MAC 550 moving fixtures. All are in great working order, and have had light use. Price includes (1) dual Martin road case specifically built for this product. They have been meticulously cared for by our staff, who is certified for Martin maintenance and repair. Sold in Pairs only. Specifications are as follows:

Features

* 400 W short arc discharge lamp
* 2 x 8 position color wheels plus open
* Motorized zoom and focus
* Mechanical dimming
* Gobo animation wheel with full movement / direction control
* 9 static and 6 indexable rotating gobos plus open
* Interchangeable rotating prism
* Motorized iris
* Strobe effect up to 10 Hz, random strobe, pulse effects, instant open and blackout
* Pan and tilt range of 540deg/246deg
* Variable fan control for quieter operation
* Modular design for easy maintenance and servicing
* Electronic ballast with hot lamp restrike and flicker free light


Physical
Length: 450 mm (17.7 in.)
Width: 365 mm (14.4 in.)
Height: 636 mm (25.0 in.), head straight up
Weight: 31 kg (68.3 lbs.)

Lamp
Type: 400 W short-arc discharge
Fitted as standard: Osram HTI 400 W/D3
Color temperature: 7500 K
CRI (Color rendering index): 80
Average lifetime: 750 hours
Hot restrike: Yes
Socket: Double-ended SFc 10-4 with key
Ballast: Electronic

Dynamic Effects
Color wheel: Two wheels, each with 8 filters + open, indexing, continuous rotation
Rotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shake
Static gobos: 9 interchangeable gobos + open, continuous scrolling, random gobo
Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
Iris: 10 - 100% diameter, pulse effects
Mechanical dimmer: 0 - 100%
Shutter: Strobe effect up to 10 Hz, random strobe, pulse effects, instant open and blackout
Focus: 2 m (6.6 ft.) to infinity
Zoom: 14deg - 30deg
Pan: 540deg
Tilt: 246deg

Control and Programming
DMX channels: 21/27
Setting and addressing: Control panel with LED display
16-bit control: Color wheels 1 + 2, rotating gobo wheel, dimmer, iris, focus, zoom, pan & tilt
Movement control options: Tracking and vector
Protocol: USITT DMX512/1990
Receiver: Opto-isolated RS-485
Firmware update: Serial upload via DMX link

Construction
Color(s): Black
Housing: UV-resistant fiber-reinforced composite
Reflector: Glass, cold light
Protection rating: IP20

Gobos
Outside diameter: 27.9 mm (1.1 in.) +0/- 0.3 mm (0.01 in.)
Maximum image diameter: 23 mm (0.9 in.)
Maximum thickness: 1.1 mm (0.04 in.) in static slots, 4 mm (0.2 in.) in rotating slots
Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating
Recommended metal: 0.5 mm (0.02 in.) aluminum

Gobo Animation Wheel
Outside diameter: 116 mm (4.6 in.) +0/- 0.25 mm (0.01 in.)
Image outer diameter: 112 mm (4.4 in.)
Image inner diameter: 32 mm (1.3 in.)
Construction: 0.5 mm (0.02 in.) aluminum, magnetic mounting

Installation
Mounting points: 2 pairs of 1/4-turn locks
Orientation: Any

Connections
AC power input: 3 m (9.8 ft.) integral cable without power plug
DMX data in/out: 3-pin and 5-pin locking XLR

Electrical
AC power: 100-120/208-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 6.3 AT (for 200-240 V power)
Main fuse: 10 AT (for 100-120 V power)

Thermal
Cooling: Filtered forced air (temperature-regulated)
Maximum ambient temperature (Ta max.): 40deg C (104deg F)
Maximum surface temperature, steady state, Ta=40deg C: 160deg C (320deg F)
Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 2200 BTU/hr.
