Used Kiva | For Sale Item# 47786

L-Acoustics
L-Acoustics
View more 8XT
View more Custom Speakers

Quantity 5
Condition Excellent / Few Scratches
Year 2012
Location Europe
Case Type No Case
Previous Use Rentals
Warranty 7 Day

Description

Old color

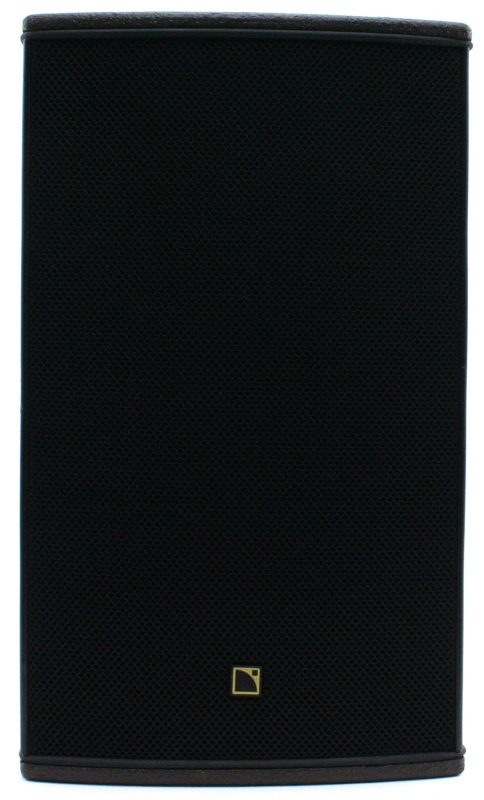

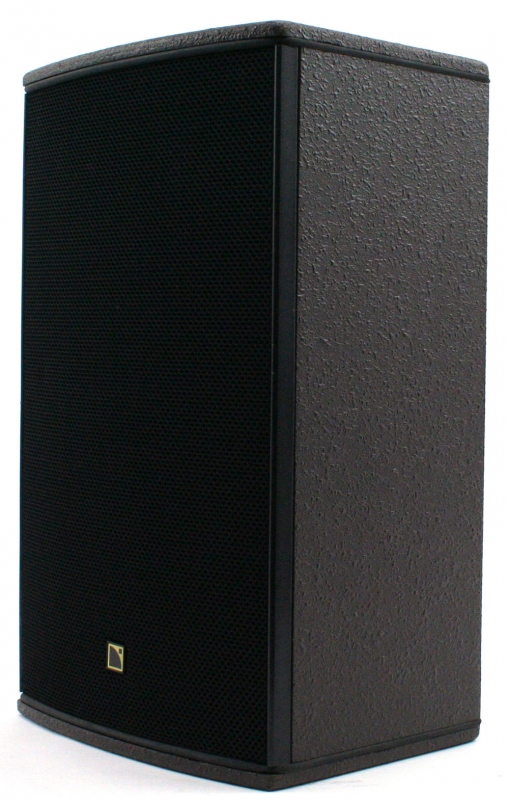

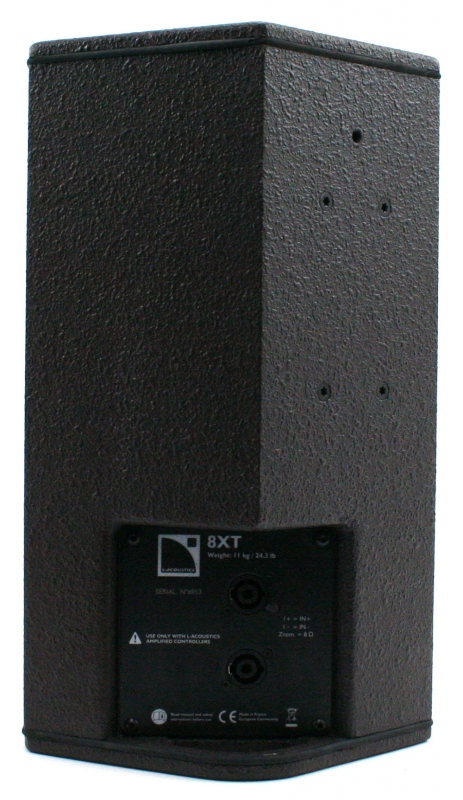

The 8XT cabinet is the most compact model of the L-ACOUSTICS® XT coaxial series and operates on a frequency bandwidth of 65 Hz to 20 kHz. This response can be lowered to 32 Hz with the addition of the SB18 subwoofer.

The 8XT enclosure contains a 1.5’’ diaphragm compression driver coaxially-loaded by an 8’’ low frequency transducer mounted in a bass-reflex tuned enclosure. The internal passive crossover network uses proprietary third order filters. The linearization and protection of the transducers is defined by the drive parameters contained in the amplified controllers.

The coaxial transducer arrangement produces a 100° axi-symmetric directivity output along with a smooth tonal response free of secondary lobes over the entire frequency range.

Made of high-grade Baltic birch plywood, the cabinet design makes the 8XT perfectly suited to all multi-purpose sound reinforcement applications. Its wedge-shape allows short or long throw monitoring use with two fixed angle settings of 30˚ and 40° from vertical. The 8XT can also be pole-mounted using the integrated socket or flown using the complementary ETR8-2 bracket or a 3rd party Omnimount® fixture.

What's Included

checked and serviced by official L-acoustic technical department

Used Kiva | For Sale | L-Acoustics

Featured & Other Custom Speakers

Featured & HOT Deals

L-Acoustics | Solaris

L-Acoustics

L-Acoustics

Buy L-Acoustics

Founded by Dr Christian Heil in 1984, L-ACOUSTICS has revolutionized the Pro Audio industry with its legendary Line Source Systems.For the past two decades, L-ACOUSTICS has developed a reputation for creating innovative solutions to the most...

8XT | News, Articles & Services

L-Acoustics XTi at Smithton-Culloden Nairn Free Church

Nov 4, 2011

Specialist installation engineers have completed theinstallationof a a new L-Acoustics XTi sound system at theSmithton-Culloden & Nairn Free Church, a newly-built chapel in Inverness, Scotland.The chapel, which frequently sees 400+worshippersin attendance, was mapped using the L-ACOUSTICS Soundvision software in order to co...

Korea D-Cube Art Center Equipped with XTi Series

Oct 10, 2011

The state-of-the-art D-Cube Art Center in Seoul, Korea, has been equipped with a top of the line XTi Architectural Series, comprising aK1 WST line source and XTi coaxial system in what is the first permanentinstalmentinside a K1 theatre system anywhere in the world.The 1,250 seat art center, situated in the futuristic D-Cub...

Nomads Istanbul Gets L-ACOUSTICS Coaxial System Vibe

Jun 16, 2011

A new branch of the famous Nomads Club has opened its doors in the Turkish capital Istanbul, boasting a new L-ACOUSTICS coaxial sound system installation.Nomads Istanbul, as the club is known, closely follows the original Amsterdam venue concept, doling out an exotic fusion of Eastern and European cultures in both its cuisi...

Christ Fellowship Church Gets First KARAi System in US

Nov 11, 2011

The 16,500 capacityChrist Fellowship Church in Palm Beach County, Florida, has been outfitted with a new L-ACOUSTICS amplifier andloudspeakersystem, it was reported yesterday.The new system was designed totake theexperienceof worshippers at the church to a whole new level - and that's exactly what the SOUNDVISION-designed s...

Product Information

8XT

8XT

The 8XT cabinet is the most compact model of the L-Acoustics XT coaxial series and operates on a frequency bandwidth of 65 Hz to 20 kHz. This response can be lowered to 32 Hz with the addition of the SB18 Subwoofer.

The 8XT enclosure contains a 1.5'' diaphragm Compression Driver coaxially-loaded by an 8'' low frequency transducer mounted in a bass-reflex tuned enclosure. The internal passive crossover network uses proprietary third order filters. The linearization and protection of the transducers is defined by the drive parameters contained in the amplified controllers.

The coaxial transducer arrangement produces a 100deg axi-symmetric directivity output along with a smooth tonal response free of secondary lobes over the entire frequency range.

Made of high-grade Baltic birch plywood, the cabinet design makes the 8XT perfectly suited to all multi-purpose sound reinforcement applications. Its wedge-shape allows short or long throw monitoring use with two fixed angle settings of 30˚ and 40deg from vertical. The 8XT can also be pole-mounted using the integrated socket or flown using the complementary ETR8-2 bracket or a 3rd party Omnimount fixture.

The 8XT is driven by the L-Acoustics amplified controllers in the following modes:

* ''FULL RANGE'' mode for standalone use of 8XT at nominal bandwidth ([8XT_FR], [8XT_FI] and [8XT_MO] presets)
* ''HIGH-PASS'' mode with 100 Hz high-pass filter to possibly associate the complementary SB18 Subwoofer ([8XT_FR_100], [8XT_FI_100] and [8XT_MO_100] presets)

For each mode a distinction is drawn between [FRONT], [FILL] and [MONITOR] presets as they respectively match front of house, distributed applications and half-space loading operating conditions.

The performances of the 8XT enclosure depends upon the choice of preset and physical system configuration.
