Used JBLed A7 Zoom RGB | For Sale Item# 42023

JB Lighting
JB Lighting
View more JBLed A7 Zoom RGB
View more Moving Lights

Find It on UsedLighting.com

Quantity 2
Condition Normal Wear & Tear
Year 2004
Location North America
Case Type No Case
Previous Use Touring
Warranty 30 Day

Description

Previously used on tours. Cleaned, maintained, and tested by authorized technicians.

Find It on UsedLighting.com

What's Included

(1) JBLed A7 Zoom RGB

Used JBLed A7 Zoom RGB | For Sale | JB Lighting

Featured & Other Moving Lights

Featured & HOT Deals

JB Lighting | Solaris

JB Lighting

JB Lighting

Buy JB Lighting

In the southern part of Germany, located right in the middle between Stuttgart and Munich, JB-lighting creates, develops and produces intelligent lighting equipment since 1987. The range of lighting equipment features moving-light profiles and...

Product Information

JBLed A7 Zoom RGB

JBLed A7 Zoom RGB

With the JBLed A7 Zoom, JB-lighting presents an Innovation in the field of LED
equipped moving heads, and the successful follow-up to the VaryLED 3*84.

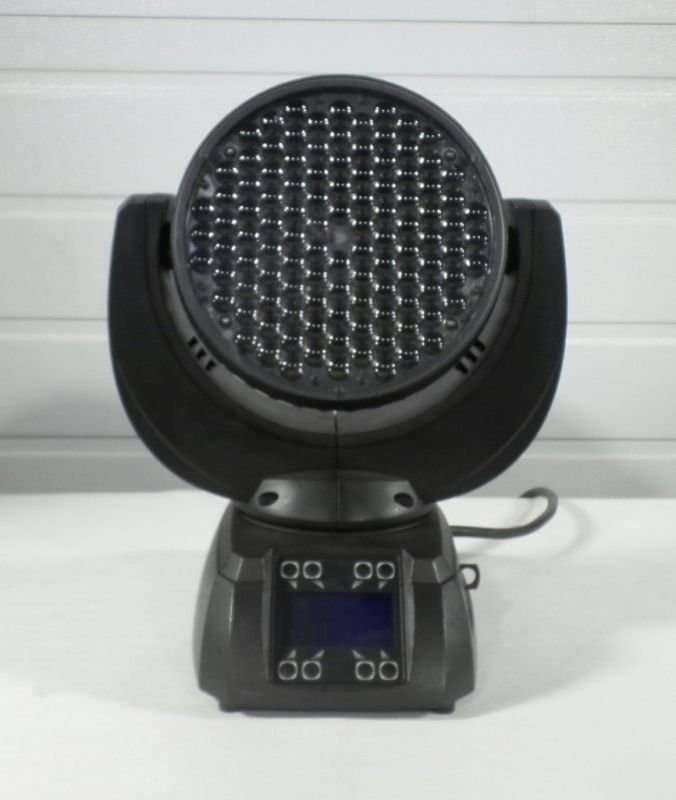

The JBLed A7 Zoom features 108 Luxeon high-power LEDs, which are packed with
higher density than already existing designs and therefore enable an even mixing of
colours.
With the selection and number of LEDs used, it's possible to present the maximum
colour range. A maximum light yield is achieved for light colours and even for white.
The JBLed A7 Zoom performs in the brightness range of a washlight with 700W
discharge lamp.
JB-lighting has achieved a major success with the improvement of the optical system.
It was necessary to develop a customized, innovative and highly efficient lens system,
as the optics currently available are not suitable for a zoom system. The front lens
system is shaped as an array. It covers all 108 LEDs, thus ensuring that there are no
unpleasant rattling noises during zooming and movement.
The zoom range of the JBLed A7 Zoom covers a remarkable 8deg-28deg.

Optics and light source
? Zoom optics 8deg-28deg radiation angle, motorised
? Highly efficient lens system
? 108 Luxeon high-power LEDs
(Lifetime approx. 50.000h manufacturers rated)

Effects
? Additive colour mixing
? Optimised colour mixing performance through LEDs
packed in higher density
? Smooth electronic dimmer, 0-100%
? Dimming without colour shifting
? Electronic Strobe with Pulse and random effects

Movement
? High-resolution three-phase stepper motors
? Precise and fast movements
? Extremely quiet, suitable for noise-sensitive applications

Control
? DMX-512
? Prepared for the attachment of a wireless DMX PCB
? Illuminated graphics display, electronically revolvable
? Stand-alone mode

Power consumption
? Max. 300VA, 115V, 230V; 50-60 Hz

Construction
? Compact diecast aluminium housing

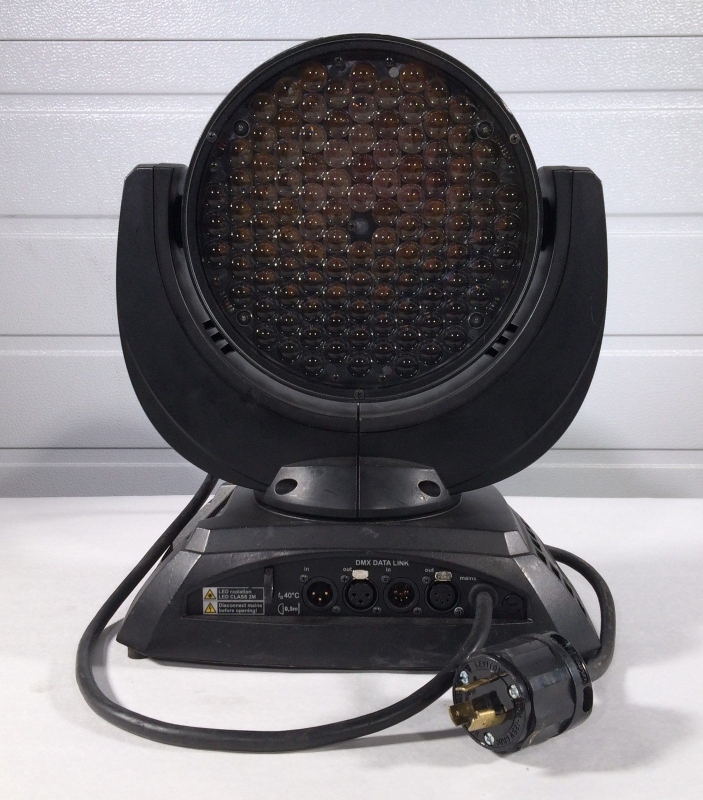

? 3-pin and 5-pin XLR connections
? Silent, temperature-controlled additional fans
? Camloc connectors, installation in any position
? Dimensions: 320 x 370 x 200mm
? Weight: 8kg


JB Lighting

In the southern part of Germany, located right in the middle between Stuttgart and Munich, JB-lighting creates, develops and produces intelligent lighting equipment since 1987. The range of lighting equipment features moving-light profiles and washlights, wellknown by the brand name Varyscan and Varycolor. The moving-heads feature state-of-the art technology and high light output. They are used in TV-Studios, Theatres and for live-touring business. In addition to the lighting equipment JB-lighting offers a range of lighting control consoles for different applications. JB-lightings philosophy is not only to create and develop reliable products, but to produce the products ecologically. To achieve this aim, JB-lighting installed a photovoltaic installation which produces more electrical power than is actually required for the production of JB-lightings products.
