Used ColorSpot 700E AT | For Sale Item# 38822

Robe
Robe
View more ColorSpot 700E AT
View more Moving Lights

Find It on UsedLighting.com

Quantity 6 (Minimum Order 6)
Condition Normal Wear & Tear
Year 2008
Location Middle East
Case Type Dual
Previous Use Rentals
Warranty 7 Day

Description

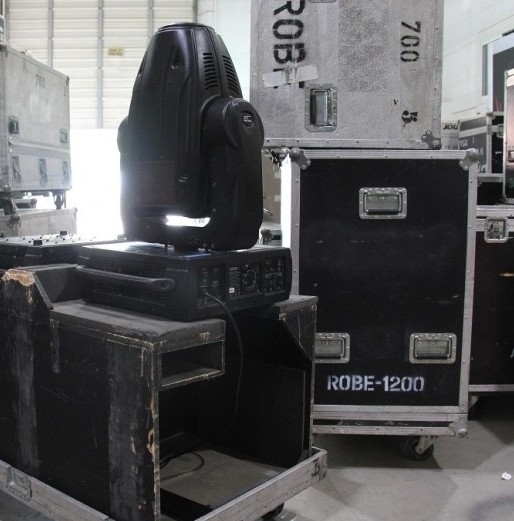

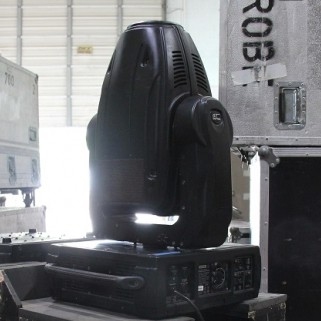

Robe ColorSpot 700E AT, operated by official distributor of Robe, 100% working condition.

Find It on UsedLighting.com

What's Included

(1) ColorSpot 700E AT
(2) Omega Brackets

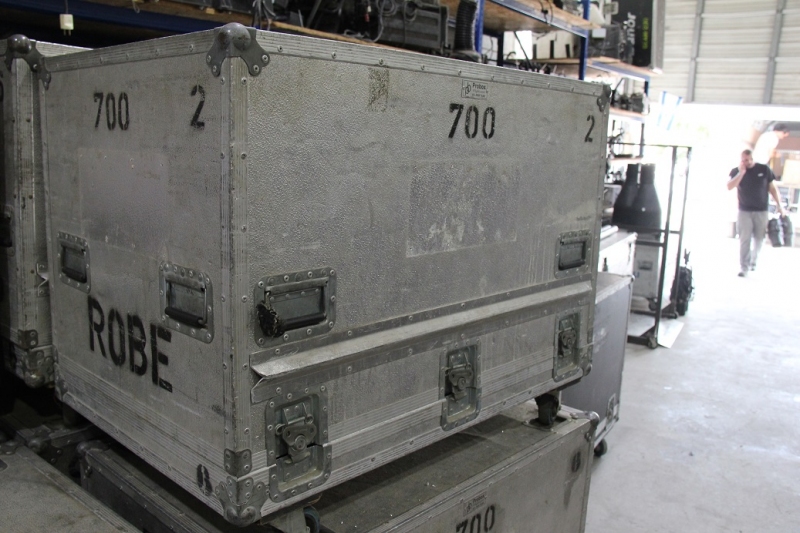

(1) Dual Flight Case with the purchase of (2) units.

Featured & Other Moving Lights

Featured & HOT Deals

Robe | Solaris

Robe

Robe

Buy Robe

Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products.ROBE Lighting, Inc. Headquarters: 13807 N.W. 4th Street, Sunrise, Florida 33325Tel.: (954) 615-9100Fax: (954) 615-9105

Product Information

ColorSpot 700E AT

ColorSpot 700E AT

The ColorSpot 700E AT marks a new series of Robe 700W moving head fixtures. Featuring the MSR GOLD 700 FastFit lamp, it is ideal for all professional applications and installations. It also offers a full CMY and CTO colour mixing systems, a colour wheel with 7 replaceable ??SLOT&LOCKdichroic filters; a static gobo wheel with 9 replaceable ??SLOT&LOCKgobos and a rotating gobo wheel with 7 replaceable ??SLOT&LOCKgobos; a replaceable animation wheel and a rotating 3-facet prism. The zoom range is 15deg - 51deg and there's also dimmer, shutter, Strobe effects.


Source
Lamp: Compact high-presure metal halide lamp
Base: PGJX50
Approved model: Philips MSR Gold 700? FastFit
Control: Automatic and remote on/off
Ballast: Electronic

Optical System
Dichroic glass reflector for maximising the light efficiency
Beam angle: 15deg - 51deg

Electrical Specification
Power Supply: Electronic auto-ranging
Input voltage range: 100-240V, 50/60Hz
Power consumption: 930VA at 230V/50 Hz

Mechanical Specification
Height: 597 mm (23.5") - head in horizontal position
Width: 514 mm (20.2")
Depth: 499 mm (19.7")
Weight: 32 kg (70.6 lbs)
Fixation option: Pan/Tilt-lock mechanism

Thermal
Maximum ambient temperature: 40 degC (104degF)
Maximum surface temperature: 120 degC (248degF)

Rotating Gobos
Outside diameter: 26.8 mm
Image diameter: 22 mm
Thickness: 1.1 mm (max. thickness=4mm)
Recommended glass: High temperature borofloat or better glass

Control and Programming
Setting & Addressing: Robe Navigation System (RNS)
Protocol: USITT DMX-512, RDM support
Control channels: 26, 28, 31, 34 or 36
5 DMX protocol modes
3-editable programs, each up to 99 steps
Stand-alone operation
Display: Blue/white LCD graphic
Pan/Tilt resolution: 16-bit
Movement control: Tracking and vector
Colour wheel positioning: 8- or 16-bit
Static gobo wheel positioning: 8- or 16-bit
Rotating gobos: 8- or 16-bit
Iris: 8- or 16-bit
Frost: 8- or 16-bit
Focus: 8- or 16-bit
Dimmer: 8- or 16-bit
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyser for easy fault finding

Electromechanical Effects
Cyan: 0-100%
Magenta: 0-100%
Yellow:0- 100%
CTO: 0-100%
Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open
Static Gobo wheel: 9 replaceable "SLOT&LOCK" gobos + open
Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
Animation wheel: Replaceable, variable rotation angle,continuous rotation in both directions at different speeds
Iris: Motorized, stepless
Prism: 3-facet indexable prism rotating in both directions at different speeds
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable Strobe effect, Electronic strobbing ??ZAP
Motorized zoom and focus
Pan: 530deg
Tilt: 280deg

Rigging
Mounting points: 4 pairs of -turn locks
2 x Omega bracket with -turn quick locks
Safety chain/rope attachment point

Remote Control IR
Animation Wheels

Robe

Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products. ROBE Lighting, Inc. Headquarters: 13807 N.W. 4th Street, Sunrise, Florida 33325 Tel.: (954) 615-9100 Fax: (954) 615-9105

Used Moving Lights

Moving lights, or intelligent lighting as they are sometimes called, are basically a type of stage lighting that is able to move due to its integrated mechanical elements, which go beyond the moving parts that are found in more traditional, non-moving lighting. Automated lighting such as moving lights is highly valued by stage lighting technicians as through them, it is possible to create highly complex special effects that simply cannot be made using standard, non-moveable lights. It should be noted however, that when it comes to intelligent lighting, the real intelligence lies with the programmer of the show, rather than the lighting equipment or any operator. Moving head lights, also called moving head luminaires, are highly versatile lighting instruments capable of performing multiple lighting functions at once. They have largely superseded the use of multiple non-moving lights to create special effects, which required many lights and a large amount of skill on behalf of the operators. Moving lights are hooked up to a lighting control console and send data to it in one of three ways ?? through an Ethernet control (a relatively new technology), analogue control (now almost obsolete), or DMX, (which is now the industry standard). So long as they have been properly programmed, the optics of wiggly lights can be altered in many ways, allowing for the ??personality? of the lights to be adapted almost instantaneously, depending on the requirements of the operator. Typically, moving lights will be pre-programmed before a production and controlled using simple commands, although some more experience operators may prefer to control them ??live?, if they have the experience to do so.
