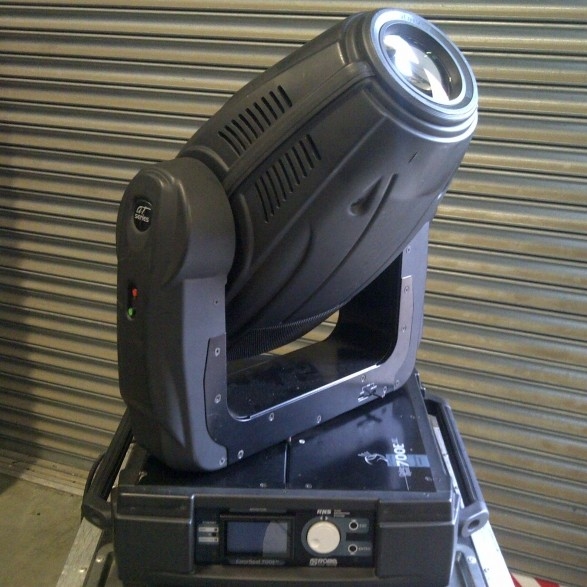

Used ColorSpot 700E AT | For Sale Item# 32347

Robe
Robe
View more ColorSpot 700E AT
View more Moving Lights

Find It on UsedLighting.com

Quantity 36
Condition Normal Wear & Tear
Year 2007
Location Europe
Case Type Dual
Previous Use Rentals
Warranty 2 Day

Description

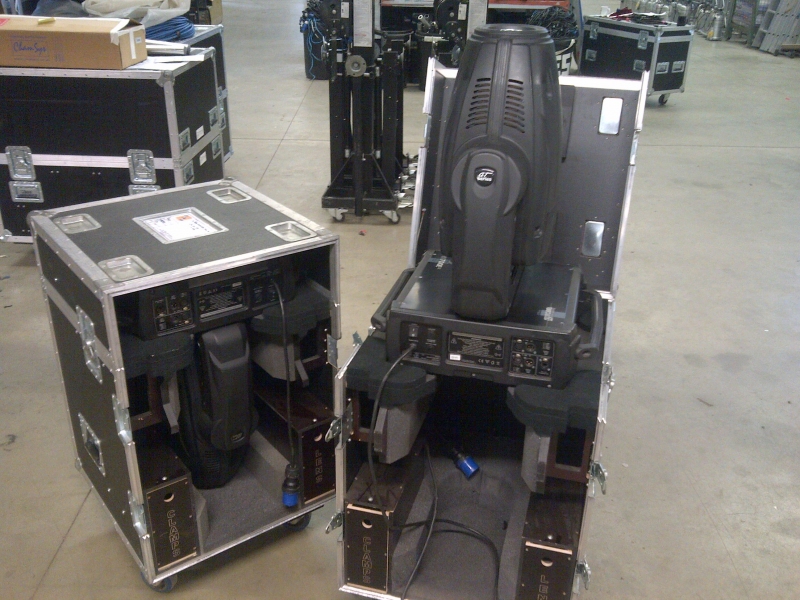

Sold in pairs. Will include an original Robe flight-case. The price is for one light and a dual flight-case is free with each pair.

Find It on UsedLighting.com

What's Included

Omega brackets
Power lead
Used lamp
Case with each pair

Used ColorSpot 700E AT | For Sale | Robe

Featured & Other Moving Lights

Featured & HOT Deals

Robe | Solaris

Robe

Robe

Buy Robe

Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products.ROBE Lighting, Inc. Headquarters: 13807 N.W. 4th Street, Sunrise, Florida 33325Tel.: (954) 615-9100Fax: (954) 615-9105

Product Information

ColorSpot 700E AT

ColorSpot 700E AT

The ColorSpot 700E AT marks a new series of Robe 700W moving head fixtures. Featuring the MSR GOLD 700 FastFit lamp, it is ideal for all professional applications and installations. It also offers a full CMY and CTO colour mixing systems, a colour wheel with 7 replaceable ??SLOT&LOCKdichroic filters; a static gobo wheel with 9 replaceable ??SLOT&LOCKgobos and a rotating gobo wheel with 7 replaceable ??SLOT&LOCKgobos; a replaceable animation wheel and a rotating 3-facet prism. The zoom range is 15deg - 51deg and there's also Dimmer, shutter, strobe effects.


Source
Lamp: Compact high-presure metal halide lamp
Base: PGJX50
Approved model: Philips MSR Gold 700? FastFit
Control: Automatic and remote on/off
Ballast: Electronic

Optical System
Dichroic glass reflector for maximising the light efficiency
Beam angle: 15deg - 51deg

Electrical Specification
Power supply: Electronic auto-ranging
Input voltage range: 100-240V, 50/60Hz
Power consumption: 930VA at 230V/50 Hz

Mechanical Specification
Height: 597 mm (23.5") - head in horizontal position
Width: 514 mm (20.2")
Depth: 499 mm (19.7")
Weight: 32 kg (70.6 lbs)
Fixation option: Pan/Tilt-lock mechanism

Thermal
Maximum ambient temperature: 40 degC (104degF)
Maximum surface temperature: 120 degC (248degF)

Rotating Gobos
Outside diameter: 26.8 mm
Image diameter: 22 mm
Thickness: 1.1 mm (max. thickness=4mm)
Recommended glass: High temperature borofloat or better glass

Control and Programming
Setting & Addressing: Robe Navigation System (RNS)
Protocol: USITT DMX-512, RDM support
Control channels: 26, 28, 31, 34 or 36
5 DMX protocol modes
3-editable programs, each up to 99 steps
Stand-alone operation
Display: Blue/white LCD graphic
Pan/Tilt resolution: 16-bit
Movement control: Tracking and vector
Colour wheel positioning: 8- or 16-bit
Static gobo wheel positioning: 8- or 16-bit
Rotating gobos: 8- or 16-bit
Iris: 8- or 16-bit
Frost: 8- or 16-bit
Focus: 8- or 16-bit
Dimmer: 8- or 16-bit
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyser for easy fault finding

Electromechanical Effects
Cyan: 0-100%
Magenta: 0-100%
Yellow:0- 100%
CTO: 0-100%
Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open
Static Gobo wheel: 9 replaceable "SLOT&LOCK" gobos + open
Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
Animation wheel: Replaceable, variable rotation angle,continuous rotation in both directions at different speeds
Iris: Motorized, stepless
Prism: 3-facet indexable prism rotating in both directions at different speeds
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing ??ZAP
Motorized zoom and focus
Pan: 530deg
Tilt: 280deg

Rigging
Mounting points: 4 pairs of -turn locks
2 x Omega bracket with -turn quick locks
Safety chain/rope attachment point

Remote Control IR
Animation Wheels

Robe

Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products. ROBE Lighting, Inc. Headquarters: 13807 N.W. 4th Street, Sunrise, Florida 33325 Tel.: (954) 615-9100 Fax: (954) 615-9105
