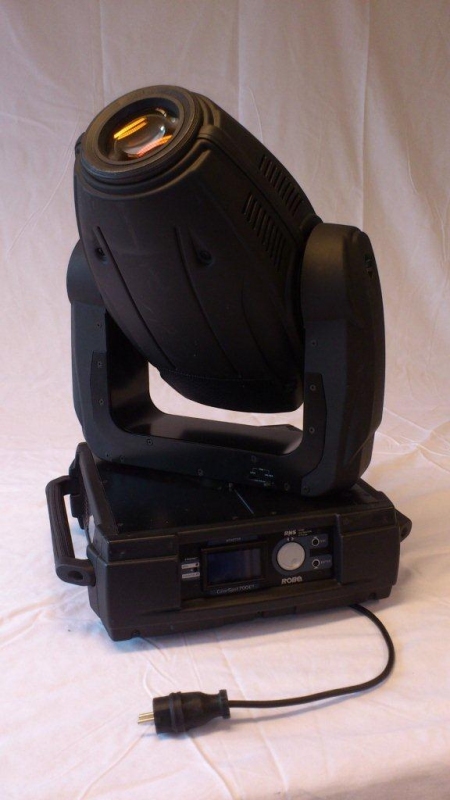

The ColorWash 700E AT is the first Wash fixture using the MSR Gold 700? FastFit lamp in the Robe range. This powerful moving head offers a full CMY + CTO colour mixing system, a colour wheel with 7 replaceable "SLOT&LOCK" dichroic filters, a rotating beam shaper and a linear zoom range of 6deg - 45deg.
Source
Lamp: Compact high-presure metal halide lamp
Base: PGJX50
Approved model: Philips MSR Gold 700? FastFit
Control: Automatic and remote on/off
Ballast: Electronic
Optical System
Dichroic glass reflector for maximising the light efficiency
Front Fresnel lens of diameter of 200 mm
Beam angle: 6deg - 45deg
Electrical Specification
Power Supply: Electronic auto-ranging
Input voltage range: 100-240 V AC,50/60Hz
Power consumption: 890VA at 230V/50 Hz
Mechanical Specification
Height: 597 mm (23.5") - head in horizontal position
Width: 514 mm (20.2")
Depth: 499 mm (19.7")
Weight: 30.4 kg (67 lbs)
Fixation option: Pan/Tilt-lock mechanism
Thermal
Maximum ambient temperature: 40 degC (104degF)
Maximum surface temperature: 120 degC (248degF)
Control and Programming
Setting & Addressing: Robe Navigation System (RNS)
Protocol: USITT DMX-512, RDM support
Control channels: 18, 20, 21, 22, 23, 24
6 DMX protocol modes
3-editable programs, each up to 99 steps
Stand-alone operation
Display: Blue/white LCD graphic
Pan/Tilt resolution: 16-bit
Movement control: Tracking and vector
Colour wheel positioning: 8- or 16-bit
Beam shaper: 8- or 16-bit
Zoom: 8- or 16-bit
Dimmer: 8- or 16-bit
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyser for easy fault finding
Electromechanical Effects
Cyan: 0-100%
Magenta: 0-100%
Yellow: 0-100%
CTO: 0-100%
Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open
Beam shaper: Indexable, continuous rotation in both directions at different speeds
Dimmer/Shutter: Full range dimming and variable strobe effect, electronic strobbing "ZAP"
Motorized zoom
Pan: 530deg
Tilt: 280deg
Rigging
Mounting points: 4 pairs of -turn locks
2x Omega bracket with -turn quick locks
Safety chain/rope attachment point
Optional Accessories
Module of front wide-angle lens D200
Remote Control IR
Top Hats
