Used SX1 | For Sale Item# 22376

Ramsa
Ramsa
View more SX1
View more Analog Mixing Consoles

Quantity 1
Condition Normal Wear & Tear
Year 1998
Location North America
Case Type Single
Previous Use Rentals
Warranty 2 Day

Description

Never Toured. No Known Problems.

What's Included

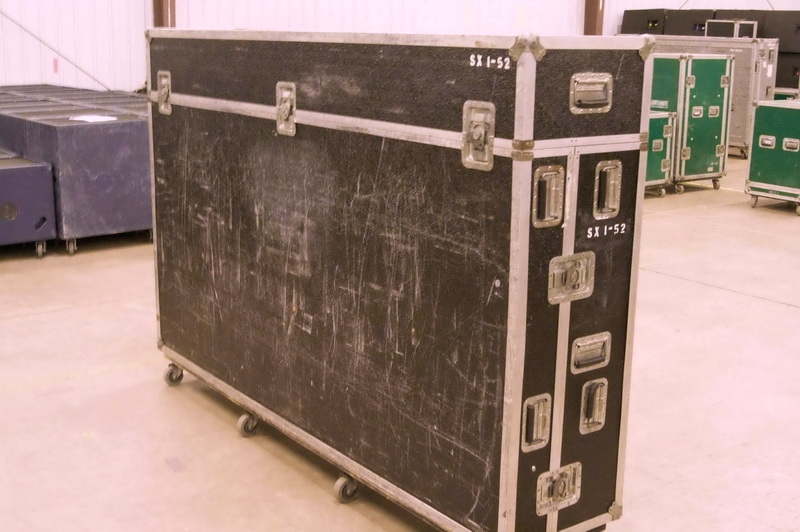

Includes Case with Doghouse, 3 Power Supplies, Main PSU Cable, Console Lights

Featured & Other Analog Mixing Consoles

Featured & HOT Deals

Ramsa | Solaris

Ramsa

Ramsa

Buy Ramsa

Since its debut in 1979, Matsushita Electric Industrial's professional audio systems RAMSA (Research for Advanced Music Sound and Acoustics) has continually applied state-of-the-art technology to creating better audio spaces

Product Information

SX1

SX1

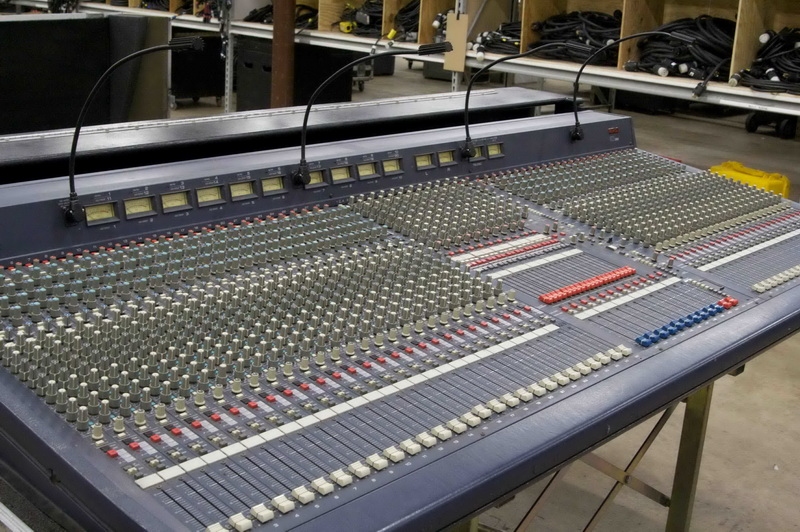

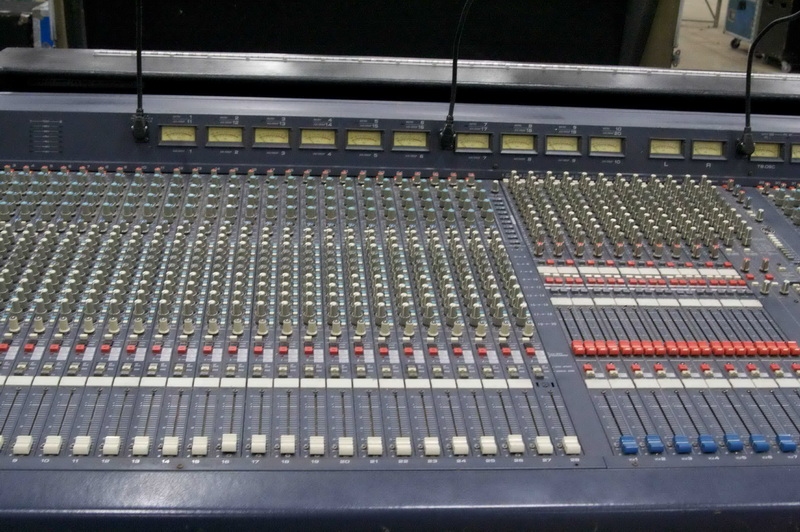

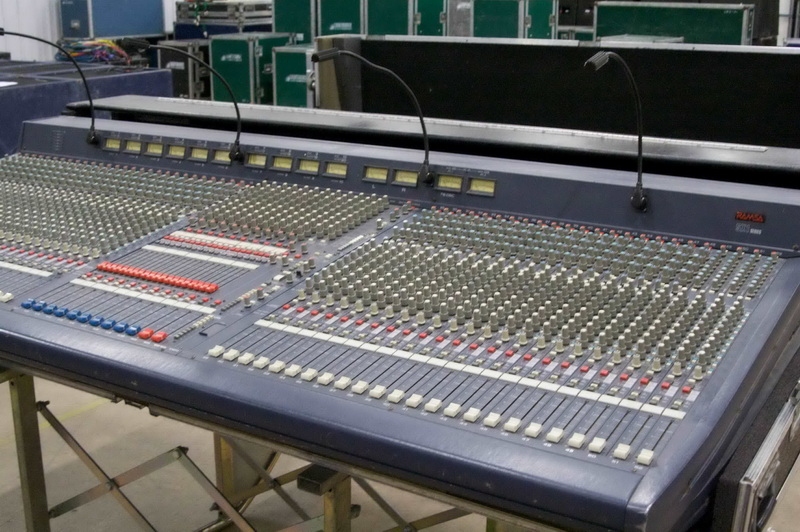

Ramsa SX1 Console
? Universal mixer in an integrated console which formerly used to be divided into two parts: house and monitor
? Equipped with 22 bus outputs: 20 AUX/Group bus outputs and L/R master bus outputs. Also provided with 10 Matrix outputs and Submaster outputs. Offers high flexibility for diverse mixing applications as a monitor desk with numerous bus outputs or as a house desk.
? Thanks to the 10-MUTE group function incorporated, the MUTE settings can be controlled to suit different 10-MUTE grouping patterns and scenes in correspondence with each input channel and 20 AUX/Group main bus outputs.
? The 128-pattern memory function allows the Ramsa XS-1 to store the fader level settings of all inputs or settings of the 10 MUTE groups and 10 VCA groups to a maximum of 128 patterns.
? Scene control can be exerted by the ADVANCE switch and external control, by the MIDI.
? The separate grounding system, effectiveness of which was already proven by the WR-S840 Series, has further been enhanced.
? Comes equipped with a 4-band full-parametric equalizer of original design intended to greatly suppress noise by all monaural inputs.
? Employs an original head amplifier. Designed to provide a high input resistance of +24dB, and a low equivalent input noise of -126dB.
? The trim control allows adjustment from -60dB over to +4dB without any pad involved.
? The Ramsa SX-1 incorporates a differential type summing amplifier with noise level improved by as much as 8 to 9dB from that of conventional monolithic IC amplifiers.
? The Ramsa SX1 is provided with a computer-control function capable of supporting complex operations.

Ramsa

Since its debut in 1979, Matsushita Electric Industrial's professional audio systems RAMSA (Research for Advanced Music Sound and Acoustics) has continually applied state-of-the-art technology to creating better audio spaces

Used Analog Mixing Consoles

SX1 - SX1 with 48 channels and flight case in good condition. Previously used on rentals.
