Source
* Lamp: Compact high-pressure metal halide lamp
* Base: GY-9.5
* Approved model: Philips MSD 250W/2
* Control: Automatic and remote on/off
* Ballast: Magnetic
Optical System
* Standard objective: 15deg
* Optional objectives: 12degand 18deg
Electrical Specification
* Wiring options - EU-model: 208/230/240V AC, 50/60Hz
* Wiring options - US model: 100/120/208/230/240V AC, 50/60Hz
* Power consumption: 500 VA at 230V/50Hz
Mechanical Specification
* Height: 476 mm (head in horizontal position)
* Width: 428 mm
* Depth: 379 mm
* Weight - EU model: 18.5 kg, US model: 21.5kg
Thermal
* Maximum ambient temperature (Ta): 40degC (104degF)
* Maximum surface temperature: 80degC (176degF)
Gobos
* Outside diameter - metal Gobos: 26.9 mm, dichroic and glass Gobos: 26.8mm
* Thickness - metal Gobos: 0.15mm (steinless steel); dichroic Gobos: 1.1mm (high temperature borofloat or better glass); glass Gobos: Max. thickness Lighting 4mm (high temperature borofloat or better glass)
Control and Programming
* Protocol: USITT DMX-512
* Control channels: 16
* Bilt-in demo sequences
* Display: 4-digit LED display
* Pan/Tilt resolution: 8- or 16-bit
* Master/slave operating
* Controllable speed of fans
* Movement control: Tracking and vector
* Buit-in analyzer for easy fault finding
* Data in/out: Locking 3-pin XLR
Electromechanical Effects
* Colour wheel: 11 dichroic filters + open
* Gobo wheel: 6 rotating, indexable, replaceable Gobos + open
* Prism: 3-facet -prism rotating in both directions at different speeds
* Dimmer/Shutter: Full range dimming and variable strobo effect
* Focus: motorized focus
* Pan: 530deg
* Tilt: 280deg
* Maximum Pan-movement 530deg in 2.65s
* Maximum Tilt-movement 280deg in 1.68s

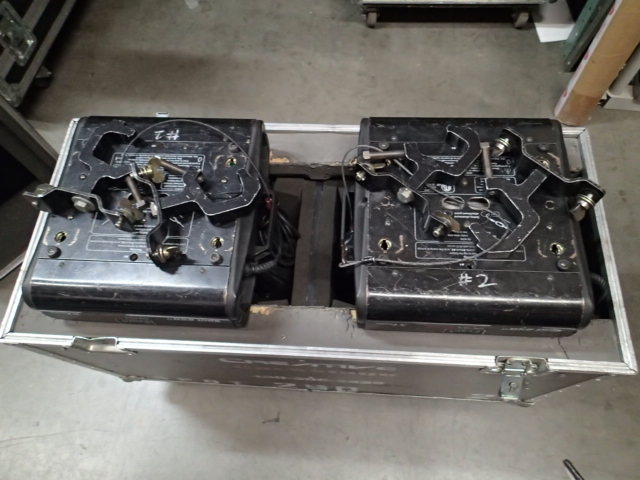

Rigging
* via 2 pairs of mounting holes for clamps with M10 thread
* via mounting bracket
Robe
Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products.
ROBE Lighting, Inc.
Headquarters:
13807 N.W. 4th Street,
Sunrise, Florida 33325
Tel.: (954) 615-9100
Fax: (954) 615-9105
Used Moving Lights
Moving lights, or intelligent lighting as they are sometimes called, are basically a type of stage lighting that is able to move due to its integrated mechanical elements, which go beyond the moving parts that are found in more traditional, non-moving lighting.
Automated lighting such as moving lights is highly valued by stage lighting technicians as through them, it is possible to create highly complex special effects that simply cannot be made using standard, non-moveable lights. It should be noted however, that when it comes to intelligent lighting, the real intelligence lies with the programmer of the show, rather than the lighting equipment or any operator.
Moving head lights, also called moving head luminaires, are highly versatile lighting instruments capable of performing multiple lighting functions at once. They have largely superseded the use of multiple non-moving lights to create special effects, which required many lights and a large amount of skill on behalf of the operators.
Moving lights are hooked up to a lighting control console and send data to it in one of three ways ?? through an Ethernet control (a relatively new technology), analogue control (now almost obsolete), or DMX, (which is now the industry standard).
So long as they have been properly programmed, the optics of wiggly lights can be altered in many ways, allowing for the ??personality? of the lights to be adapted almost instantaneously, depending on the requirements of the operator. Typically, moving lights will be pre-programmed before a production and controlled using simple commands, although some more experience operators may prefer to control them ??live?, if they have the experience to do so.
