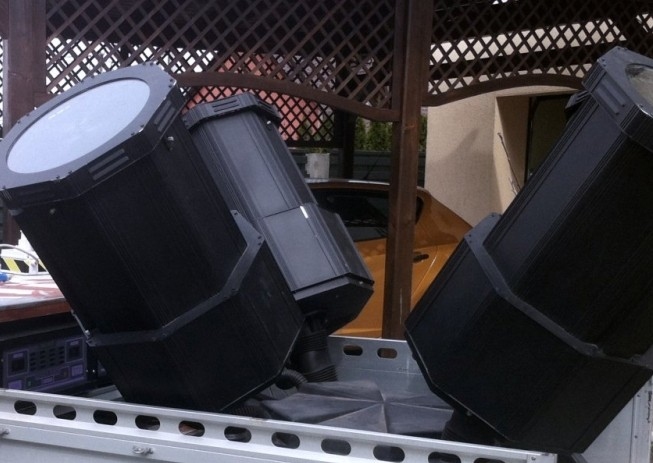

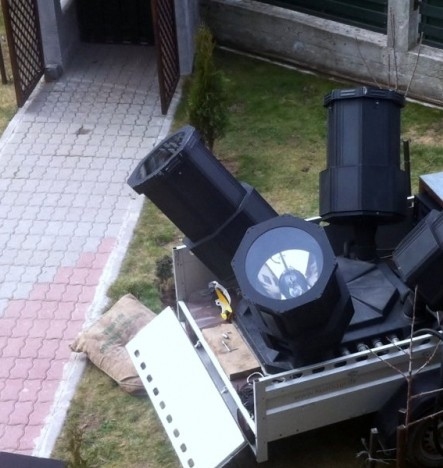

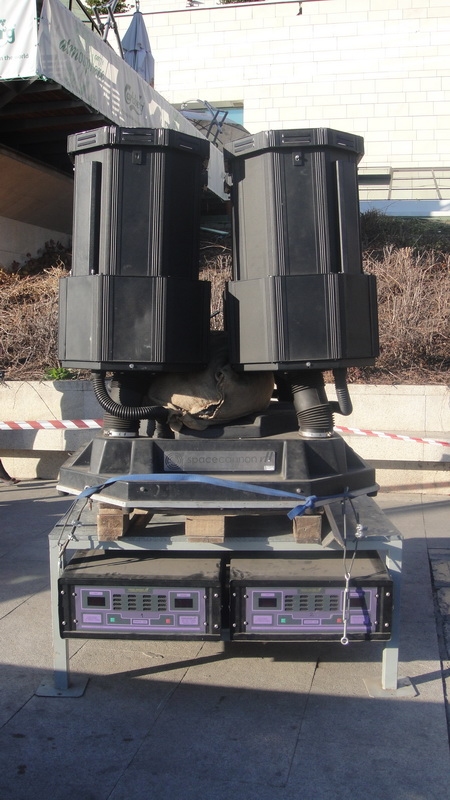

High luminosity group searchlights.
White Xenon light.
Synchronised and no-stop rotation of each head, outwards inclined.
Adjustable speed.
For outdoor applications.
Housing
Aluminium; resistant ABS shell. Black finishing.
Protection factor: IP 44.
Lamp
All the models are fitted with a Xenon lamp.
(Luminous flux / Rated lifetime)
2.500 W 100.000 lm / 1.500 h
3.000 W 130.000 lm / 1.500 h
4.000 W 155.000 lm / 1.000 h
7.000 W 350.000 lm / 500 h
8.000 W 360.000 lm / 500 h
Reflector
Very high precision electro-shaped Nickel-Rhodium coating reflector.
Diameter 405 mm / 15,94 inch
Lenses
Flat transparent lens, 3,5 mm / 0,14 inch. Shock and thermal jumps resistant (Test UNI 7142 - English Standard 3193)
Control
ON / OFF of each single lamp.
Rotation speed ruling.
Movement
Rotary motion with direct traction.
Maximum tilt angle: 22.5 deg.
Focusing
Electronic focusing system by a Soft Touch. Keyboard to adjust the beam width.

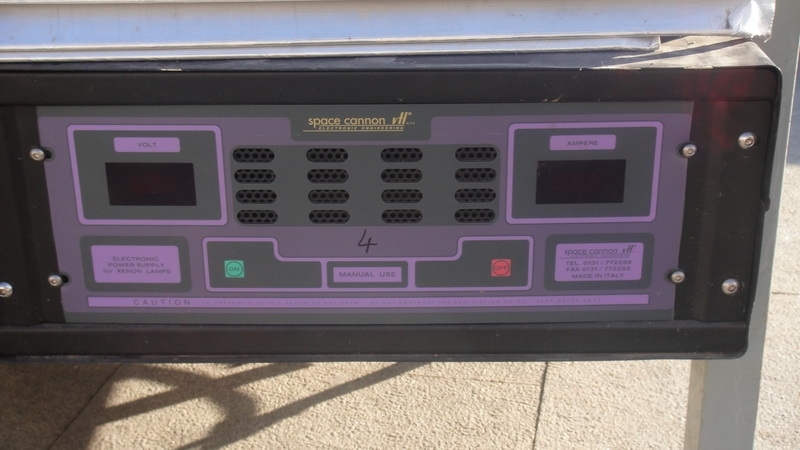

Power Supply
2.500/3.000/4.000 W electronic integrated
7.000/8.000 W electronic separated
(connected to the lamphead by 5m Cable.
A longer Cable is available by request).
Power requirements
200~210 V AC, 50/60 Hz three phase
or
220~240 V AC, 50/60 Hz three phase
or
380~415 V AC, 50/60 Hz three phase + neutral
Patents
US6486621 Electronic system for AT219619T generating and controlling light effects
ITAL960018U DMX channels re-addressing
ES2068483T Device for moving the AT115255T luminous beam in a projector
Operating Temperature
-15deg'C +48degC
+5deg'F +118degF
Weight
2.500/3.000/4.000 W 322 Kg / 710 lb
7.000/8.000 W 446 Kg / 983 lb
