Used Show Designer 3 | For Sale Item# 27896

Elation

View more Show Designer 3
View more Lighting Consoles

Find It on UsedLighting.com

Description

Seller already upgraded to other lighting controllers. This console is in like new condition. Excellent working order with just a few scratches.

This advanced lighting board is based on the successful and easy-to-use Elation Professional Show Designer 1 & 2. The Show Designer 3 expands on the existing features and adds several others. The approach of this controller is to try to simplify the programming process as much as possible while still offering a high level of control at an affordable cost. This full size universal DMX controller offers you both power and flexibility for all your programming applications. The Show Designer 3 makes programming simple and fast. A Compact Flash drive makes backing up programs, adding fixture profiles and software updates a snap. The latest fixture profiles can be downloaded off the Elation Professional website. Experience the power and take control with Show Designer 3 today!

SHOW DESIGNER 3 ADVANTAGES:
�?� Easy-to-use operation
�?� Large moving light fixture library available
�?� Software updates available at www.elationlighting.com
�?� Compact Flash drive on rear for memory back-up, loading fixture profiles and software updates

MAIN CONTROL FEATURES
1536 DMX Channels
3 DMX Universe, 3 & 5 Pin connectors on each output
Control 48 moving light fixtures up to 32 channels each
Control 128 Conventional dimmers
Playback scenes using buttons or playback faders
Effect generator to create chase effects
Conventional dimmers can be included in scene memory or be independent.
Factory ready color, gobo, focus & effect presets
Large moving light fixture library available (same profiles as Show Designer 2)
Scene preview with �??Go�?� button
Solo feature allows scenes to track through or play solo
Scenes can be combined and recorded as new scenes
Scenes, shows, chases and presets can be assigned to the playbacks.
Playbacks can manually fade channels (LTP mode) or trigger timed fades while manually controlling dimmer levels (HTP mode)

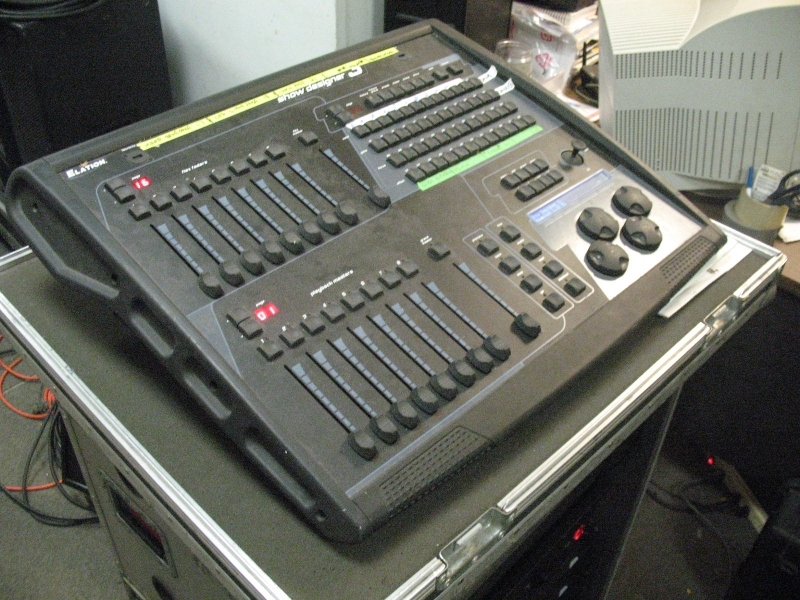

FRONT PANEL

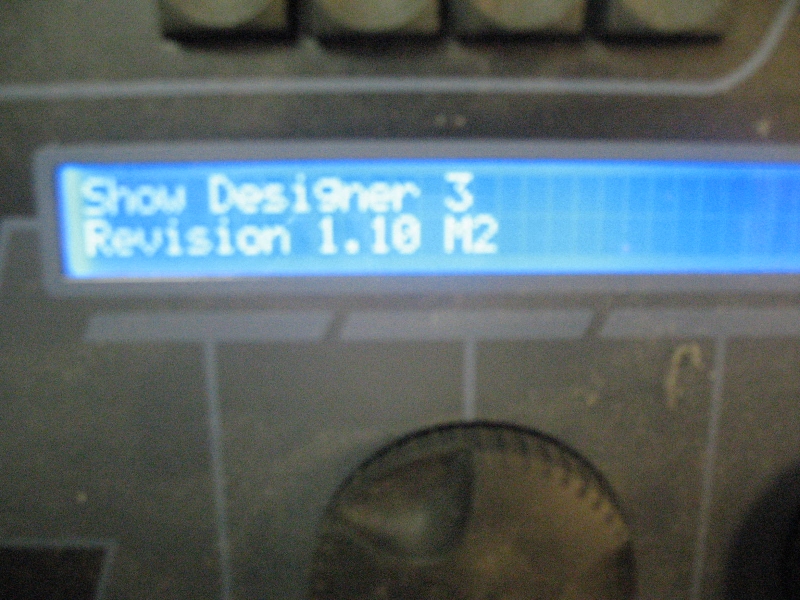

80 Character backlit display for easy programming
4 menu and control data wheels
48 Multi function Quick access buttons
100mm faders
8 dedicated playback faders with 32 pages
8 flex faders with page selection for moving light channels, conventional dimmers or additional playbacks.
Pan/tilt joystick with coarse/fine control
Grand master fader
Flex master fader
Go, stop and back buttons
Blackout, audio and beat buttons
2 USB LITE connectors (for gooseneck lamps)

REAR PANEL CONNECTIONS
3 (3 Pin) DMX Outputs
3 (5 Pin) DMX Outputs
Midi-In port
CF-drive for memory back up, loading fixture profiles and software updates.
PS2 Keyboard input
RS-232 Port, for PC interface
RCA Audio input for Chases
Voltage selection switch

CAPACITY
4752 programmable scenes
1152 programmable chases
1152 programmable shows
1152 programmable presets
48 fixture groups
Fade times up to 90 minutes
Run 16 chases simultaneously
Run 17 shows simultaneously
