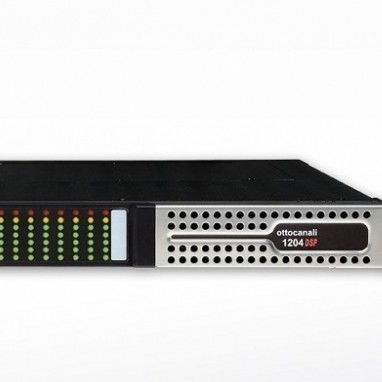

Used OTTOCANALI 1204 DSP | For Sale Item# 44016

View more OTTOCANALI 1204
View more Amp Rack Units

Quantity 12
Condition Brand New
Year 2014
Location North America
Case Type No Case
Previous Use Other
Warranty 30 Day


Brand new unit.

What's Included

(1) OTTOCANALI 1204 DSP plus ETH
(1) Power Supply

Used OTTOCANALI 1204 DSP | For Sale | Powersoft

Featured & Other Amp Rack Units

Featured & HOT Deals

Powersoft | Solaris

Product Information



Power supply

Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains Cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Fully protected circuit design with:

Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, Strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 80 C (176 F)
Temperature controlled continous variable speed fan, front to back airflow

Fixed frequency switchmode output stage for high grade sound accuracy
Compact 1 RU for reduced rack cost and space
Light weight - for easier racking and shipping: 5-11 kg (11-24.3 lbs) depending on number of BatFormers

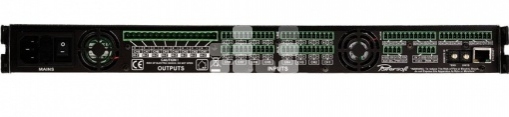

Standard Phoenix connectors: analog and digital input, audio outputs, aux supply, alarms and GPIO
Remotely switchable inputs (main and aux) per channel
Loudspeaker system configuration

Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
Switchable 35Hz / 70Hz high pass filter per channel
Mixed configuratio with Lo-Z/Hi-Z systems possible
Bridged mode low impedance per channel pair
Alarms and GPIO

General Purpose Input/Output alarm interfaces:
dangerous DC in the output power signal
thermal stress
Configurable alarm contact NC/NO per channel
Remote AUX input / MAIN input switch
Remote ON/OFF switch
PWS OUT connector providing up to 24VDC
Digital Signal Processing*

Analog Devices ADAU 1702 DSP architecture
AD/DA converter: dual 24bit @ 48 kHz Tandem architecture, 100 dB dynamic range, per channel
Input/output independent Equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 16 ms for time alignment
Active DampingControl for Cable compensation
Peak and RMS limiters
Remote management*

Control and monitoring through Armona Pro Audio Suite
Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems
