Robe
View more MSZoom 250XT
View more Moving Lights
| Quantity | 4 (Minimum Order 4) |
| Condition | Excellent / Few Scratches |
| Location | North America |
| Previous Use | Rentals |
| Warranty | 90 Day |

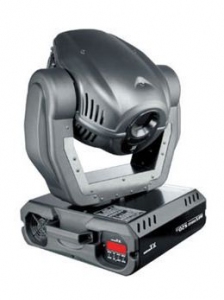

MSZoom 250 XT
The MSZoom 250 XT is a compact moving head, ideal for clubs installations. Features include multi-step motorised zoom with five different apertures ?? 15, 18, 21, 24 and 26 degrees, frost filter plus static and rotating gobo wheels.
Source
* Lamp: Compact high-pressure metal halide lamp
* Base: GY-9.5
* Approved model: Philips MSD 250W/2
* Control: Automatic and remote on/off
* Ballast: Magnetic
Optical System
* Multi-step zoom (15deg,18deg,21deg,24deg,26deg)
Electrical Specification
* Wiring options - EU-model: 208/230/240V AC, 50/60Hz,
US model: 100/120/208/230/240V AC,50/60Hz
* Power consumption: 500 VA at 230V/50Hz
Mechanical Specification
* Height: 476 mm (head in horizontal position)
* Width: 428 mm
* Depth: 380 mm
* Weight - EU model: 20.5 kg, US model: 23.5kg
Thermal
* Maximum ambient temperature (Ta): 45degC (113degF)
* Maximum surface temperature: 80degC (176degF)
Gobos
* Outside diameter - metal gobos: 37.3 mm, glass gobos: 37.2 mm
* Thickness - metal gobos: 0.15mm (steinless steel);
glass gobos: Max. thickness = 4mm (high temperature borofloat or better glass)
Control and Programming
* Protocol: USITT DMX-512
* Control channels: 16
* Bilt-in demo sequences
* Display: 4-digit LED display
* Pan/Tilt resolution: 8- or 16-bit
* Master/slave operating
* Controllable speed of fans
* Movement control: Tracking and vector
* Buit-in analyzer for easy fault finding
* Data in/out: Locking 3-pin XLR
Electromechanical Effects
* Colour wheel: 7 dichroic filters + open
* Colour/Gobo wheel: 3 dichroic filters, 3 dichroic gobos + open
* Rotating gobo wheel: 5 rotating, indexable, replaceable gobos + open
* Prism: 3-facet -prism rotating in both directions at different speeds
* Dimmer/Shutter: Full range dimming and variable strobo effect
* Focus: motorized focus
* Pan: 530deg
* Tilt: 280deg
* Maximum Pan-movement 530deg in 2.7s
* Maximum Tilt-movement 280deg in 1.7s
Rigging
* via 2 pairs of mounting holes for clamps with M10 thread
* via mounting bracket
