This item is no longer available for sale
BSS Audio
View more MSR 604
View more Mic Pre-Amp
| Quantity | 1 |
| Condition | Like New |
| Location | Europe |
| Previous Use | Demo/Refurb |
| Warranty | 30 Day |
Previously used on a demo. Cleaned and maintained by in house technicians.

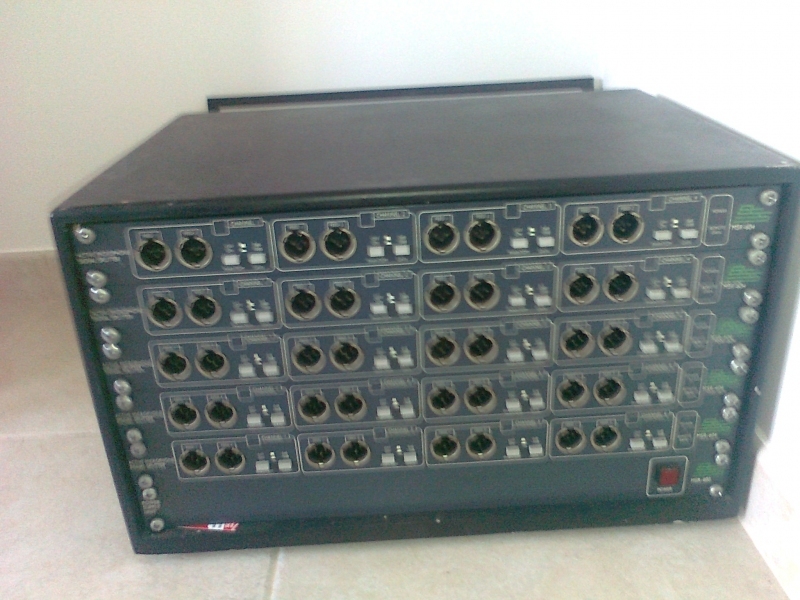

(5) MSR 604
(1) BSS 602
(1) Wooden Rack
Power cables included.
1788A- 8ch RC Microphone Pre... |
| Aphex Systems |
| All 1788A-RC Micro... |
| 15 Available |
| $18,844 USD |
| €16.366 EUR |
| View » |
HDQ-4K35 |
| Barco |
| All HDQ-4K35 |
| 3 Available |
| $34,000 USD |
| €29.529 EUR |
| View » |
MAC Quantum Profile |
| Martin Professional |
| All MAC Quantum Pr... |
| 26 Available |
| $3,812 USD |
| €3.150 EUR |
| View » |
VL4000 Spot |
| Vari-Lite |
| All VL4000 Spot |
| 60 Available |
| $3,795 USD |
| €3.296 EUR |
| View » |
MAC Viper Performance |
| Martin Professional |
| All MAC Viper Perf... |
| 30 Available |
| $7,395 USD |
| €6.423 EUR |
| View » |
J-Series |
| db audiotechnik |
| All J-Series |
| 1 Available |
| $302,200 USD |
| €249.750 EUR |
| View » |
WildBeam |
| Ayrton |
| All WildBeam |
| 100 Available |
| $990 USD |
| €860 EUR |
| View » |
VT4882 |
| JBL |
| All VT4882 |
| 4 Available |
| $1,000 USD |
| €868 EUR |
| View » |
KIVA |
| L-Acoustics |
| All KIVA |
| 60 Available |
| $1,597 USD |
| €1.320 EUR |
| View » |
BSS Audio is world renowned for outstanding sound quality and reliable equipment that satisfies the real demands of professional musicians and high-profile installations. Products from BSS Audio are used on major tours, in recording and broadcast...

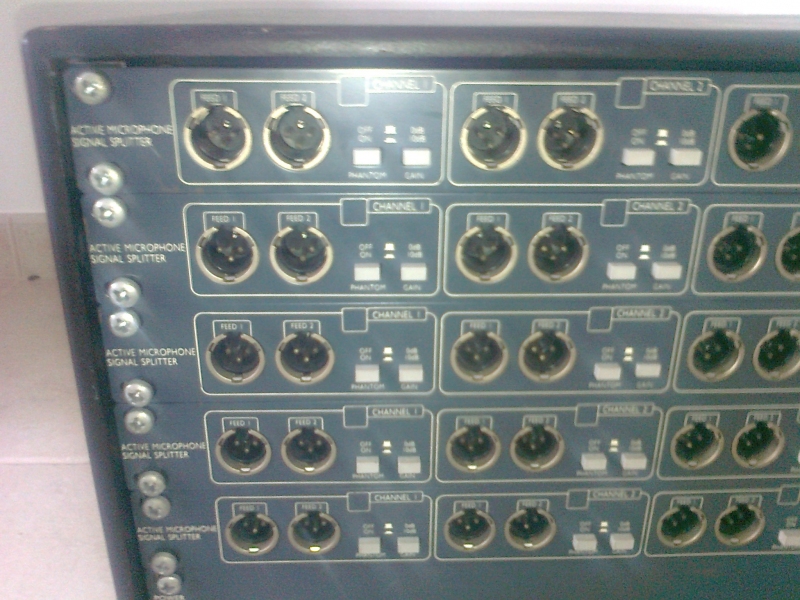

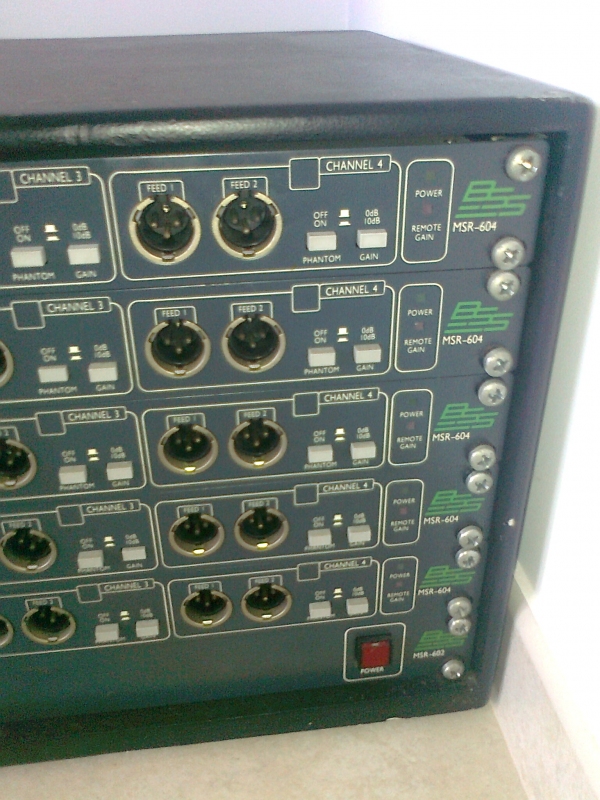

The MSR-604 II is a 4-Channel One by four, active microphone/line level distribution system, capable of supplying 4, 8, 12, or 16 outputs from a single input.
Each channel features:
Electronically balanced input with transformer option.
MIC/LINE switching, GAIN switching.
Listen facility for monitoring via the MSR-602 II PSU.
Phantom power.
Active outputs for main FOH and monitor consoles.
Two transformer-coupled feeds giving 2500V isolation for any application requiring isolation from the main PA system.
The system requires an MSR-602 II power supply, and is compatible with existing MSR-604 units (adapter Cables required).
Options:
MSR-TIXII Input balancing kit.
MSR-TOXII Output balancing for FOH and monitor outputs.
604-II-ADK PSU adapter cable for use with MSR-604 type 1 units.

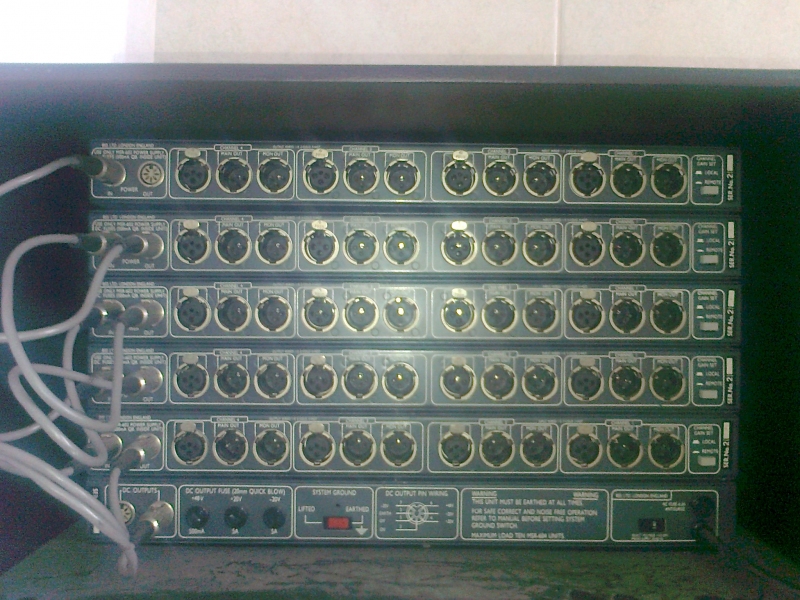

The MSR-602 II is the power supply for the MSR-604 II and will run 5 MSR-604 II units. The unit also provides the headphone monitor output and signal metering. Two MSR-602 II units may be linked for fail-safe operation.
BSS Audio is world renowned for outstanding sound quality and reliable equipment that satisfies the real demands of professional musicians and high-profile installations. Products from BSS Audio are used on major tours, in recording and broadcast studios, churches, casinos, arenas, and nightclubs on every continent. Why do so many sound industry veterans swear by BSS Audio? Because with every performance, installation, broadcast, and recording, these professionals put their reputations on the line. The pros demand superior sound quality and a proven track record. They can count on it with BSS Audio.
The mic pre-amp (also known as the microphone preamplifier) is an essential sound engineering device that allows the microphone signal to be easily processed by other devices. Usually, the microphone signals are not strong enough to penetrate units like the mixing consoles and recording equipment. Thus, the microphone pre amp heightens the signal so it can reach the required signal strength by the devices. For instance, the dynamic microphone has an output voltage within the range of 0-100 (microvolt). This is too low so the microphone pre-amp heightens the level approximately 70 dB or 0-100 volts. The result is a stronger signal that creates better sound quality. The mic pre-amp supplies ample gain and at the same time, it prevents the noise generated that could possible distort the signal. It also serves as a transducer that generates a kind of coloration or effects to an audio mix. Normally, sound engineers would emphasize the effect of the mic pre-amp to the overall quality of the sound of the audio mix. The pre amplifier usually charges the microphone with low impedance and this makes the microphone to work double time, resulting in the modification of the tone quality. The audio mixers already have built in preamplifiers but the mic pre-amp adds extra effects to the audio mixerâ??s effects. There are some types of microphones such as the condenser microphones that need the mic pre-amp to function. There are also pre-amps that comprise the channel strip together with the recording equipment like equalizers, compressors, noise gates, etc.
