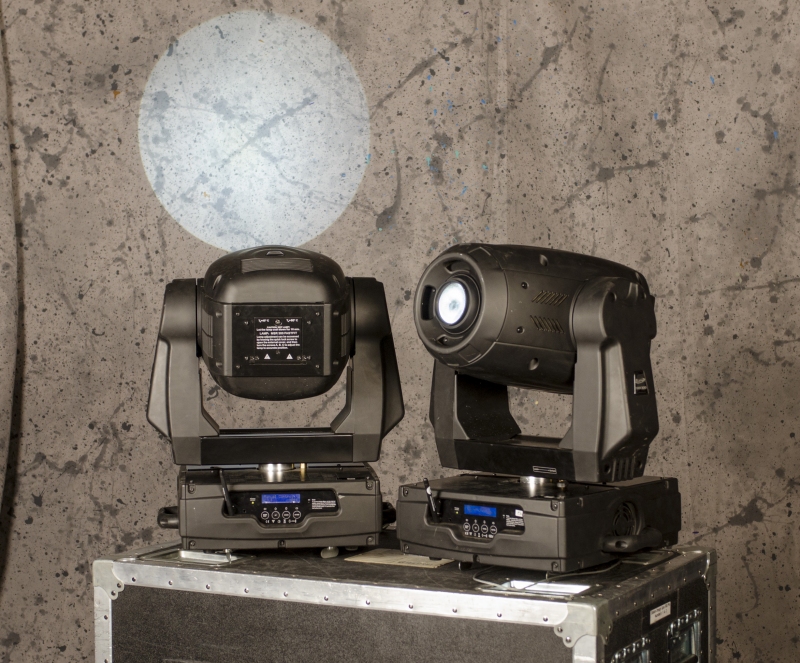

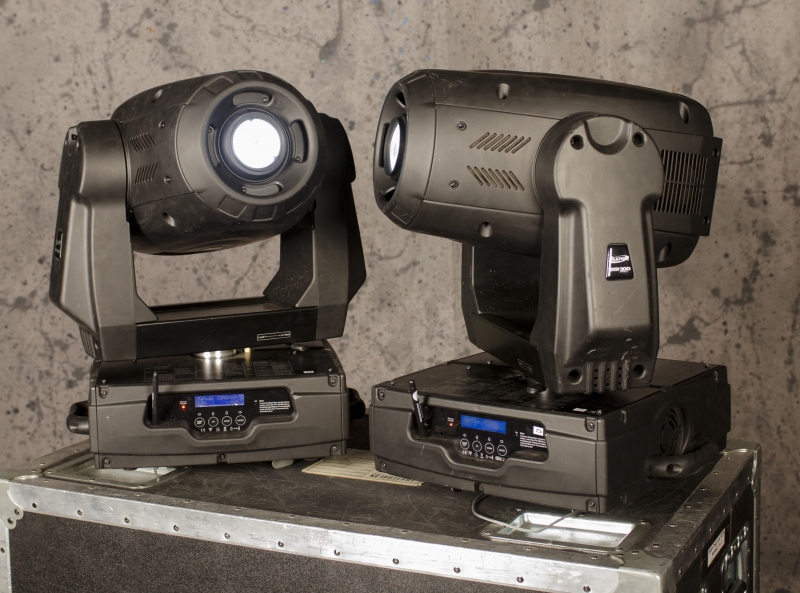

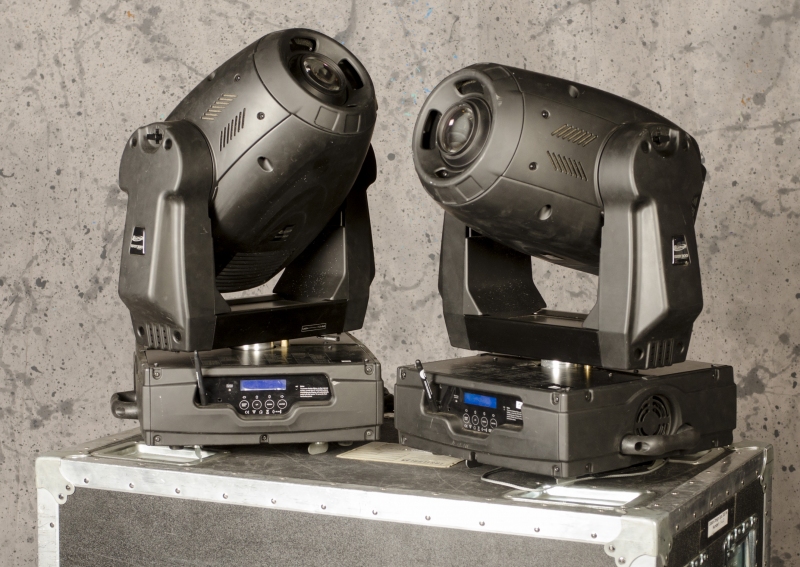

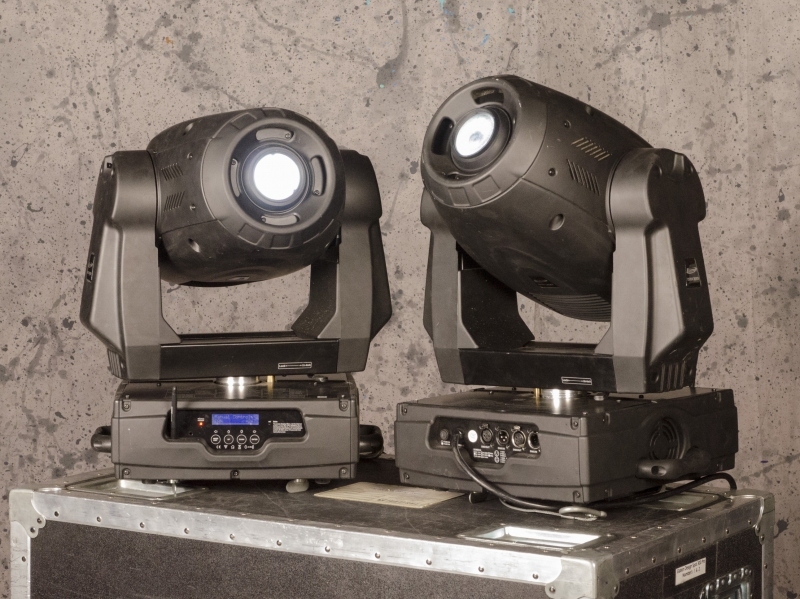

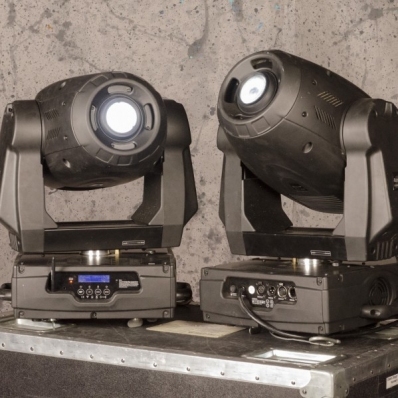

Design Spot 300 Pro -
300W CMY Spot w/Zoom & EWDMX Moving Head
COLORS
? CMY color mixing
? 8 interchangeable dichroic filters (including CTO, UV & CTB) plus white
? Continuous, variable speed, color scrolling in both directions (rainbow effect)
? More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
? 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass
? 6 Interchangeable, Indexable, Rotating Gobos plus open
? 7 Interchangeable, Static Gobos plus open
? Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
? Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter
? Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
? Variable speed strobe effect (1-13) flashes per second
? Pre-set variable/random strobe and dimming Pulse effect
? Dual Flag mechanical dimming system
? Flicker free
IRIS
? Beam narrow to wide (5% - 100%)
? Variable speed iris macros
? Small to large and large to small
FROST
? Hard edge to soft edge frost
PRISM
? Effect wheel with 3-facet & 3D Glass Prism rotating/Indexing Prism
? Both directions at variable speeds
? Macro-function for rotating gobos/rotating prisim combinations
ZOOM
? Motor driven Variable Zoom 16 to 25 Degrees
FOCUS
? Motor driven focus from near to far
Control Features
? 22 DMX Channels
? EWDMX Wireless DMX receiver built in
? RDMX - Remote DMX Addressing
? USITT DMX-512 (16-bit resolution)

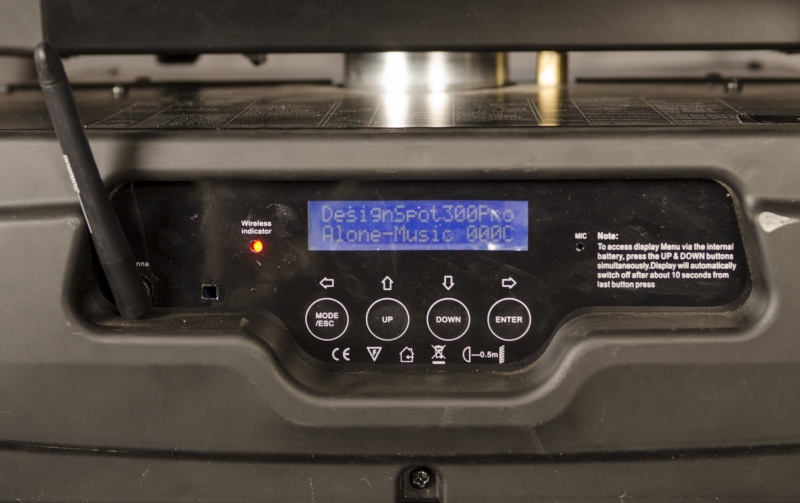

? Full Text LCD Display
? On board menu settings
? 3-pin & 5-pin XLR serial input/output
OPTICAL SYSTEM
? High output luminous-parabolic dichroic reflector
? Variable Beam Angle 16 41 degrees
? 5,300 Lux @ 5M
LAMP
? Lamp Source: MSR 300
? Type: Discharge
? Wattage: 300W
? Base: Fast Fit Gold
? Rated Average Life: 1,000
? Color Temp: 8,500k
PAN/TILT
? Automatic Pan /Tilt position correction
? Pan/Tilt Lock
? Maximum PAN-movement 630deg in 2.0 secs (default) or 540deg (user selectable) / 16 bit
? Maximum TILT-movement 265deg in 1.5 secs / 16 bit
? Vector Mode with blackout
POWER SUPPLY
? Electronic Power Supply - Multi-voltage: AC 98V ~ 240V 50/60Hz
? 4.1A or 490W
DIMENSIONS & WEIGHT
? (LxWxH): 15.83 x 17.68" x 20.11 - Head Level
? 58 lbs. 26.5 kgs.
? DB Rating 52db@ 3'
Elation
Elation Professional - Professional Lighting & Entertainment Products and Accessories!
Used Moving Lights
Moving lights, or intelligent lighting as they are sometimes called, are basically a type of stage lighting that is able to move due to its integrated mechanical elements, which go beyond the moving parts that are found in more traditional, non-moving lighting.
Automated lighting such as moving lights is highly valued by stage lighting technicians as through them, it is possible to create highly complex special effects that simply cannot be made using standard, non-moveable lights. It should be noted however, that when it comes to intelligent lighting, the real intelligence lies with the programmer of the show, rather than the lighting equipment or any operator.
Moving head lights, also called moving head luminaires, are highly versatile lighting instruments capable of performing multiple lighting functions at once. They have largely superseded the use of multiple non-moving lights to create special effects, which required many lights and a large amount of skill on behalf of the operators.
Moving lights are hooked up to a lighting control console and send data to it in one of three ways ?? through an Ethernet control (a relatively new technology), analogue control (now almost obsolete), or DMX, (which is now the industry standard).
So long as they have been properly programmed, the optics of wiggly lights can be altered in many ways, allowing for the ??personality? of the lights to be adapted almost instantaneously, depending on the requirements of the operator. Typically, moving lights will be pre-programmed before a production and controlled using simple commands, although some more experience operators may prefer to control them ??live?, if they have the experience to do so.
