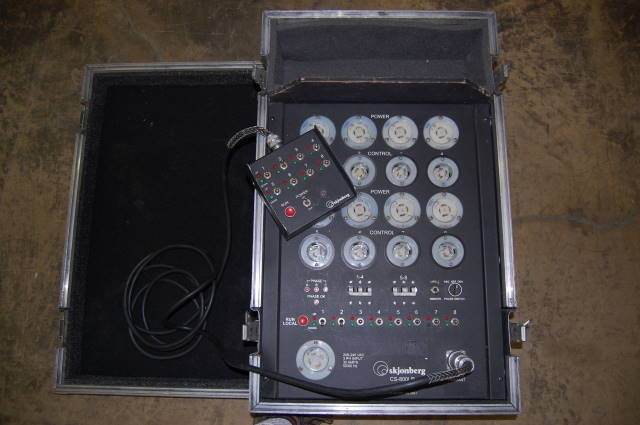

The CS-800 is the most economical member of our modular line of controllers. Ready to run eight individual hoists, both Power Distribution and relay control for the hoists reside in the same compact unit. Manual control is provided through a remote pendant with a 25 foot Cable. The remote has up/down select switches and LED indicators for each hoist, momentary run button, and an emergency stop switch that controls a disconnect contactor. Not only is the CS-800 a stand-alone unit, it can also be used with our line of controls. Add four CS-800's to the TR-3200 Manual Control and run 32 hoists manually or plug four CS-800's into our Computerized Hoist Control to run 32 hoists under computer control.
Skjonberg
"Our goal at Skjonberg Controls is to design and build safe, high quality motion control equipment at affordable prices."
We manufacture a full line of motion control equipment for theatrical, touring, theme park and industrial use.
Our product line includes:
* Manual chain hoist controls
* Programmable chain hoist control
* Power distribution
* Load monitoring
* Cabling
* Electrical parts and accessories
* Encoders for chain hoists, AC or DC motors
In our capacity as designers of custom control equipment, any of our standard designs can be modified or expanded to meet your individual requirements.
We build to order:
* Variable speed control equipment for AC or DC motors with winch and yoyo mechanical assembly
* Manual control packages for permanent installation
* Programmable control packages for permanent installation
* Servo control systems for touring or for permanent installation
Used Motor and Hoist Controllers
Any stage or theatrical production has some technical aspects which need to be operated by controllers. One of the most common of these is the theatrical rigging system or fly system, which refers to a system that enables a stage crew to fly components such as curtains, lights, scenery, stage effects, sound systems and even people. Lifting or lowering is performed by using controllers of a hoist which can be manually, electrically or pneumatically driven. Electric hoists are managed by the fly crew using a motor controller or a hoist controller. Manufacturers of these hoists as well as their controllers comply with specific industry standards for safety.
Hoist controllers vary by the type of motor control they provide. A hoist may have a low voltage, programmable, variable speed drive or direct control motor controller. Controllers for hoists also vary by the type of lifting medium supported. A chain hoist control system, for example, is a device for controlling hoists that use a chain as the lifting medium.
Some manufacturers offer hoists that do not have internal electrics or control for external control integration. This allows buyers or stage production venues to build the hoists into their own control system. Hoists and motor controllers are used in the touring, stage and theatre industry as important aspects of stagecraft. Use of industry-standard hoists and controllers are covered building, occupational safety, and fire codes for theaters and similar venues.
CS-800 - Corporate used CS-800.
CS-800 - CS800 in good condition.
CS-800 - Used on an installation. Normal wear.

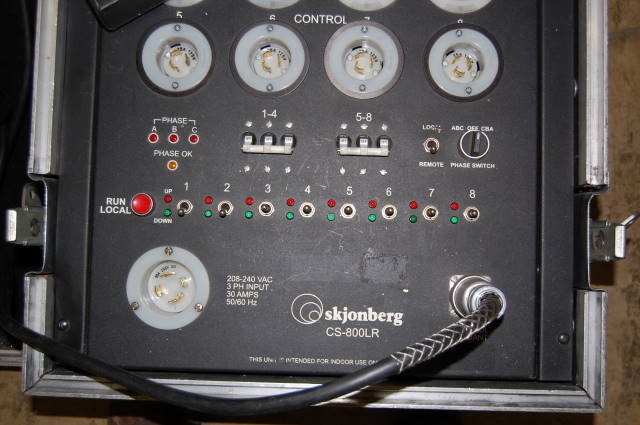

CS-800 - Motor Power and Control System
