Used ColorWash 2500E AT | For Sale Item# 38931

View more ColorWash 2500E AT
View more Moving Lights

Find It on

Quantity 4 (Minimum Order 2)
Condition Excellent / Few Scratches
Year 2007
Location North America
Case Type Dual
Previous Use Rentals
Warranty 7 Day


Previously used on various rentals. Cleaned, maintained, and tested by authorized technicians.

Find It on

What's Included

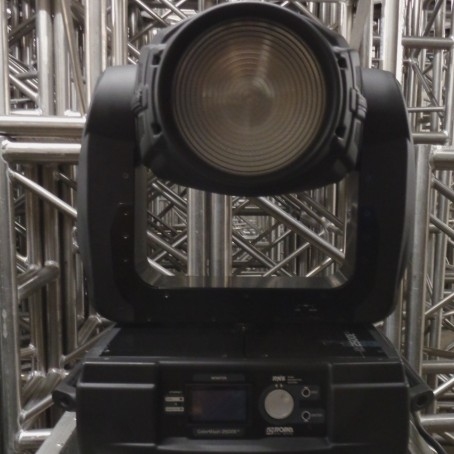

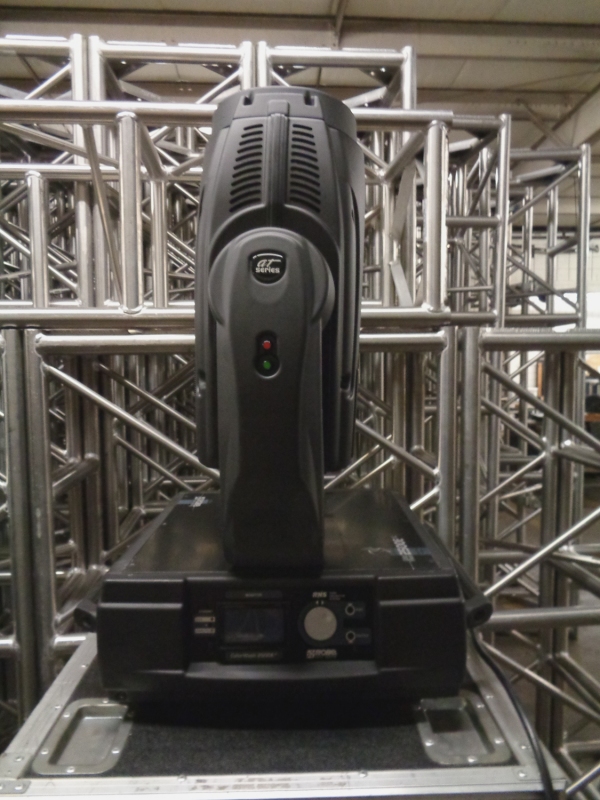

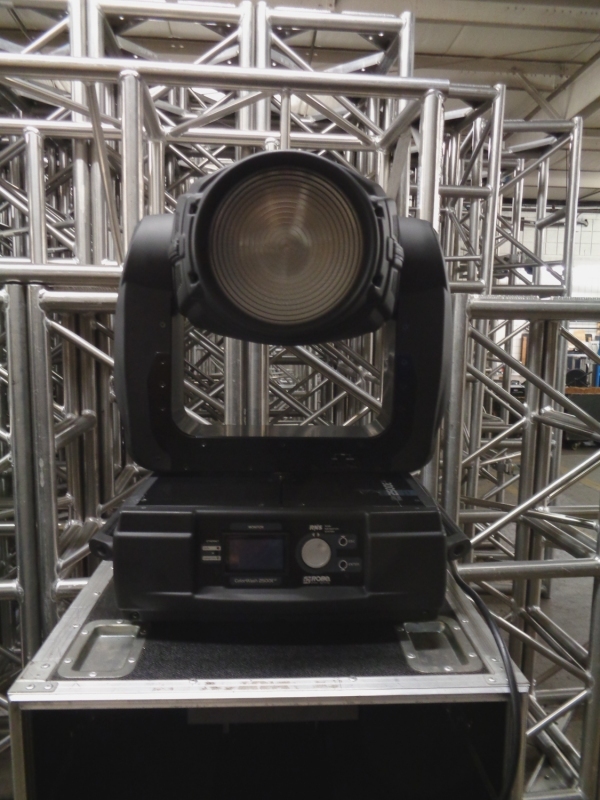

(1) ColorWash 2500E AT
(1) Dual Flight Case with the purchase of (2) units.
(2) Omega Brackets
(1) Safety Cable
(1) L6-20 Connection

Featured & Other Moving Lights

Featured & HOT Deals

Robe | Solaris



Buy Robe

Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products.ROBE Lighting, Inc. Headquarters: 13807 N.W. 4th Street, Sunrise, Florida 33325Tel.: (954) 615-9100Fax: (954) 615-9105

Product Information

ColorWash 2500E AT

ColorWash 2500E AT

Robe's new ColorWash 2500E AT moving light fixture is the sister of the ColorSpot 2500E AT and Robe's most powerful wash unit to date.

It is designed for use in large lighting rigs and for venues and installations of all types needing a really punchy moving light effect. It is also ideal for outdoor applications including washing large surface areas (like walls and buildings), and as a searchlight effect.

The ColorWash 2500E AT is fitted with the Phillips MSR Gold 1200 FastFit lamp and a 1400W electronic ballast for the flicker-free operation demanded by TV and fashion environments. The unique optical system maximises brightness and features a high luminous glass reflector.

The colour facility includes both CMY and CTO colour mixing systems and two colour wheels, each with 6 'slot+lock' colour options plus open, offering plenty of variety, from the richest saturates to the subtlest pastels, including 63 colour macros.

Each colour wheel rotates at variable speeds in both directions. There's an option for 'random colour' selection via audio input, or for straightforward 'auto random' colour selection.

The dimmer/shutter unit encompasses the full range of dimming and also produces a highly effective variable-speed strobe effect of 1- 12 FPS. Variable 'random pulse' effects can be activated via pre-programmable macros.

The unit's standard zoom range is 7 to 44 degrees. A front-fitting PC lens option gives a 6 - 35 degree zoom, and a front-fitting wide-angle lens offering a 75 87 degree range. All these options make the ColorWash 2500E AT one of the most dynamic fixtures in Robe's inventory.

The unit is controlled, set and addressed via Robe's Navigation System (RNS) which features a practical, easy-to-read graphic LCD display, two control buttons for the control wheel and comes complete with inbuilt demo sequences.

DMX operation offers the choice of 5 DMX protocol modes utilising 17, 21, 23, 24 or 30 control channels. In addition to standard DMX control, the fixture fully supports Remote Device Management (RDM) operation, and is ready for this ??out of the box with no additional installation required.

The CW 2500E AT has an Ethernet port, supports ArtNet and ACN protocols, and can also operate in 'stand alone' mode.

The colour wheel positioning, zoom function and dimmer shutter all have 8 bit or 16 bit resolution for the fine stepless operation of these effects, specially helpful for long fade-time cues.

The fans can be operated in both ??Auto or ??High modes and are virtually silent.

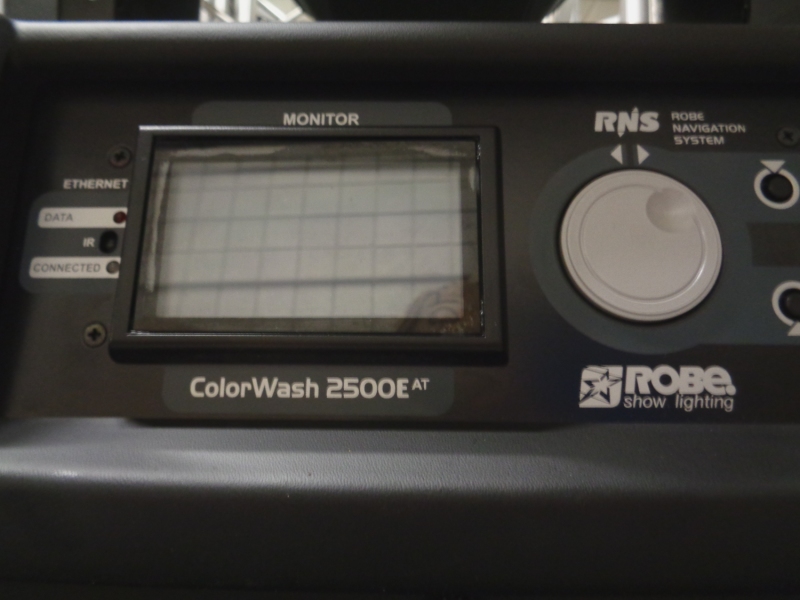

The LCD display on the unit's base is easy to read and understand, and Robe has included an inbuilt analyser to make fault-finding, pre-setting and diagnostics as simple and intuitive as possible. The ColorWash 2500E AT features 3 editable programs of up to 99 steps each, also easily programmed via the LCD display.

Lamp: MSR Gold 1200 FastFit
Base: PGJX 50
Control: Automatic and remote on/off
Ballast: Electronic

Optical System
High luminous glass reflector
Zoom angle from 7deg to 44deg

Electrical Specification
Wiring options: 208/230/250V, 50/60Hz
Power consumption: 1670 VA at 230V/50Hz

Mechanical Specification
Height: 641 mm (25,2??) (head in horizontal position)
Width: 542 mm (21,3??)
Depth: 545 mm (21,5??)
Weight: 41 kg (90,4 lbs)

Maximum ambient temperature (Ta): 40degC (104degF)
Maximum surface temperature: 130degC (266degF)

Control and Programming
Protocol: USITT DMX-512, RDM support
Control channels: 17, 21, 23, 24 and 30
DMX channels: 5 protocol modes
Setting & Addressing: ROBE Navigation System (RNS)
Built-in demo sequences
Display: Blue/white LCD graphic
Pan/Tilt resolution: 16-bit
Color wheel 1 positioning: 8- or 16-bit
Color wheel 2 positioning: 8- or 16-bit
Zoom: 8- or 16-bit
Dimmer: 8- or 16-bit
Controllable speed of fans
Movement control: Tracking or vector
Built-in analyzer for easy fault finding
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin XLR & 5-pin XLR
Stand-alone operation
3-editable programs, each up to 99 steps

Electromechanical Effects
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0- 100%
CTO: 0- 100%
Colour wheel 1: 6 replaceable "SLOT&LOCK" colours + open
Colour wheel 2: 6 replaceable "SLOT&LOCK" colours + open
Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobing ??ZAP
Zoom: 7deg - 44deg (standard front Fresnel lens), 87deg (wide-angle front lens),6deg - 35deg (front PC lens)
Pan: 530deg
Tilt: 280deg

Mounting points: 8 pairs of -turn locks
Fastening system: ROBE's own 2x Omega clamps
Fixation option: Pan/Tilt-lock mechanism

Optional Accessories
Remote Control IR
Module of lens D200 PC
Top Hats


Robe Show lighting . Manfuacturer of high quality Intelligent Lighting systems and products. ROBE Lighting, Inc. Headquarters: 13807 N.W. 4th Street, Sunrise, Florida 33325 Tel.: (954) 615-9100 Fax: (954) 615-9105
