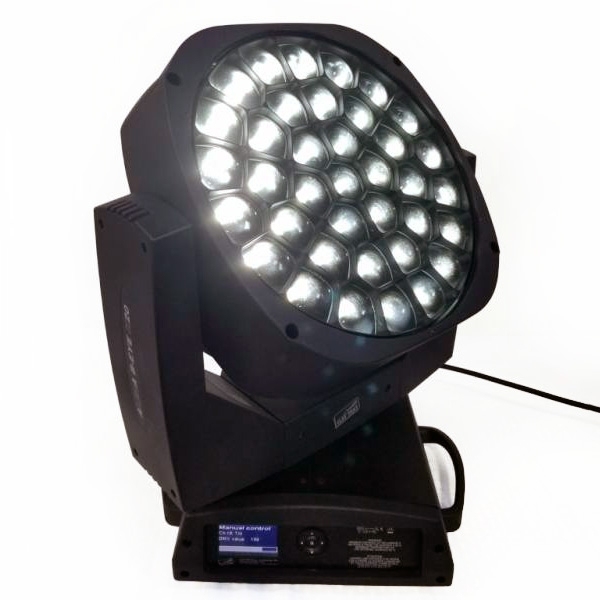

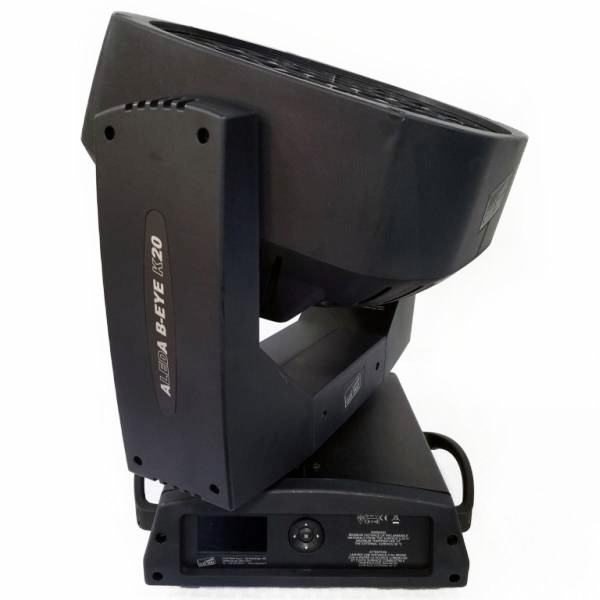

A.LEDA B-EYE K20
Perfect Wash, Amazing Beam, Spectacular Graphic Effects
The A.leda B-EYE K20 is a high performance wash light, a breathtaking beam light, and a creator of completely new spectacular Visual Effects. Its unparalleled versatility makes it an extremely interesting creative tool for all lighting designers.
The B-EYE is first and foremost an excellent quality wash light. It is able to wash surfaces with colors at any distance, making the most of its light source. The B-EYE is at least 20% brighter than any LED-wash with the same rated power, thanks to its special optical unit with a truly amazing lumen/watt ratio, designed and built by Clay Paky. The zoom ranges from 4 to 60 and it is therefore suitable both for environments with low ceilings (small theatres and TV studios, for example), where large angles are extremely useful, and for shows in arenas or large environments, where a tight zoom is perfect.

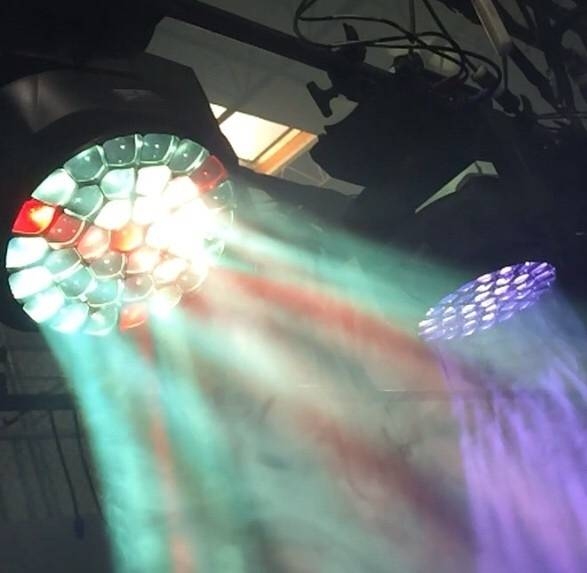

When the B-EYE beam is zoomed down to 4, the "wash" light turns into a "beam" fixture. The B-EYE therefore becomes a surprising mid-air parallel effect light, capable of generating a pulsating beam of micro-rays, which may be controlled individually, each with its own colors and shades. All the parameters of each LED can be completely controlled.
Lastly, the B-EYE K20 introduces a completely new feature: the front lens may be rotated to create lots of small bright compositions, which may be opened and closed like petals. By adding colors and dynamic graphics, the B-EYE generates never-seen-before graphic light effects.
Source Type: RGBW LEDs
LED Nominal Wattage: 15W
Number of LEDs: 37
Versatile, three operating modes: wash, beam, FX effect
Unique optical system, featuring unmatched zoom range (4-60) and even light spread
Individual LED Control for each parameter
Invisible front grid
Beam edge softening control (in wash mode)
Exclusive parallel beam consisting of an array of individually controllable micro-beams
Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
Rotating front lens for countless vortex effects, for aerial or "kaleidoscopic" projection use
White CT Emulation 2500-8000K
RGB auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Manufacturer of moving lights, effects, and image projectors.
Moving lights, or intelligent lighting as they are sometimes called, are basically a type of stage lighting that is able to move due to its integrated mechanical elements, which go beyond the moving parts that are found in more traditional, non-moving lighting. Automated lighting such as moving lights is highly valued by stage lighting technicians as through them, it is possible to create highly complex special effects that simply cannot be made using standard, non-moveable lights. It should be noted however, that when it comes to intelligent lighting, the real intelligence lies with the programmer of the show, rather than the lighting equipment or any operator. Moving head lights, also called moving head luminaires, are highly versatile lighting instruments capable of performing multiple lighting functions at once. They have largely superseded the use of multiple non-moving lights to create special effects, which required many lights and a large amount of skill on behalf of the operators. Moving lights are hooked up to a lighting control console and send data to it in one of three ways ‚?? through an Ethernet control (a relatively new technology), analogue control (now almost obsolete), or DMX, (which is now the industry standard). So long as they have been properly programmed, the optics of wiggly lights can be altered in many ways, allowing for the ‚??personality‚?Ě of the lights to be adapted almost instantaneously, depending on the requirements of the operator. Typically, moving lights will be pre-programmed before a production and controlled using simple commands, although some more experience operators may prefer to control them ‚??live‚?Ě, if they have the experience to do so.
