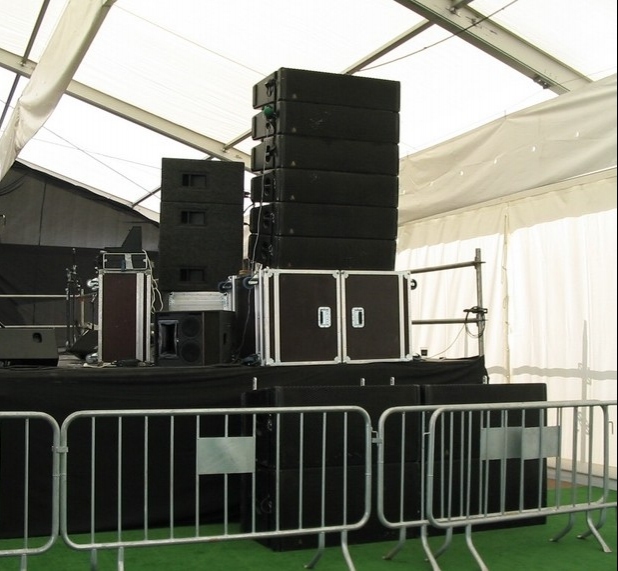

The Y-10 is a sub-compact 3 way line array that is as powerful as a full sized array, featuring a single patented Adamson mid/high drive module (with 2 patents granted and 2 pending applications). The Adamson drive module has a co-axial entrance and a co-linear exit comprised of a high frequency sound chamber mounted within a mid frequency sound chamber. The drive module is powered by a proprietary 9" Kevlar mid and a JBL 2451 Compression Driver
. Together, the drive module and trapezoidal cabinet design create a smooth, slightly curved, seamless wave front with no gaps between cabinets.
The Y10 has a defined coverage pattern of 100 degrees by 5 degrees at -3db down. The vertical coverage is determined by the number of cabinets added to the array. The Y10 comes complete with a sliding hinge rigging system with six one-degree increments, you can achieve precise angular positioning by adjusting the extension of the sliding hinge while the front of the array remains closed.
Light aluminum dollies, and all the components for rigging the Y-Axis come standard. Y10 Waterproof Soft Covers with customized silkscreening and black powder coated aluminum rigging frames to support 16 or 24 Y10's are available as optional accessories.

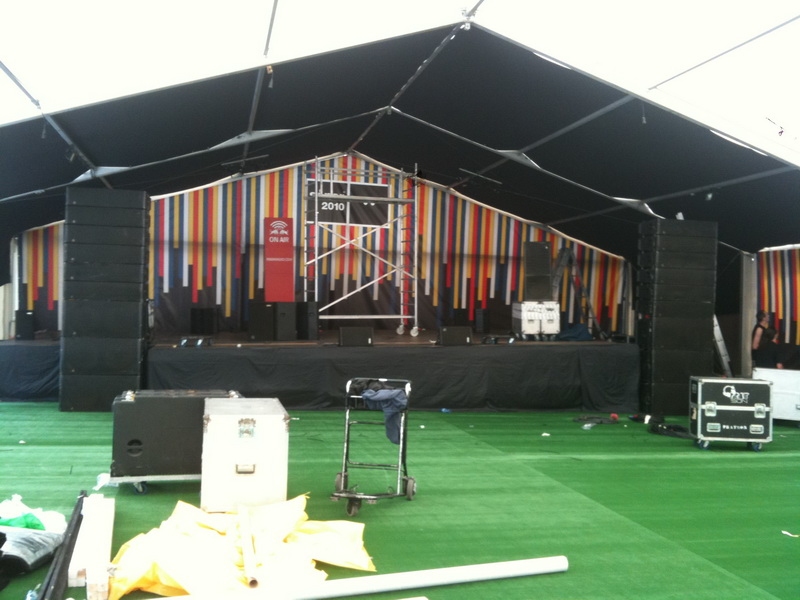

Live Concert Reproduction
Down fill for Y18
Houses of Worship
Two Adamson ND-10 L Kevlar Neodymium Drivers
One JBL 2451 HF Driver
The Adamson Co-Linear Drive Module
One Adamson YX9 9 " Kevlar MF Driver

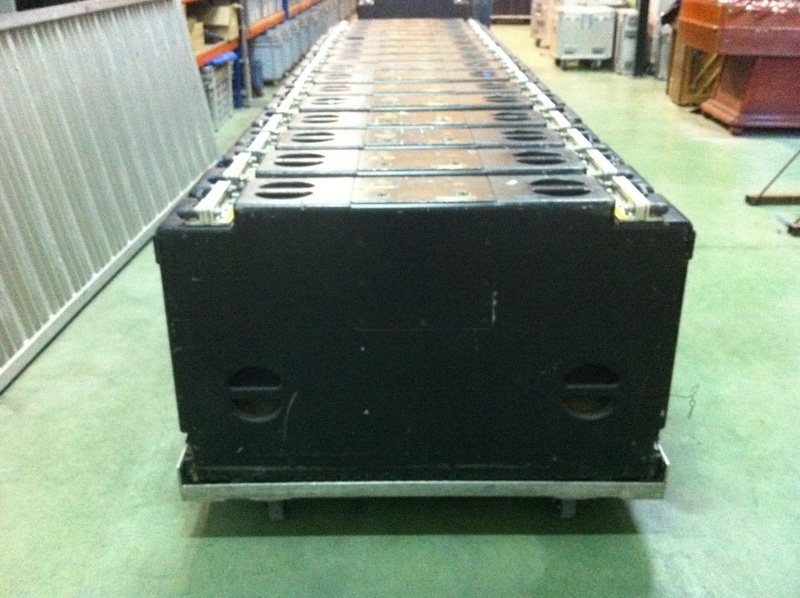

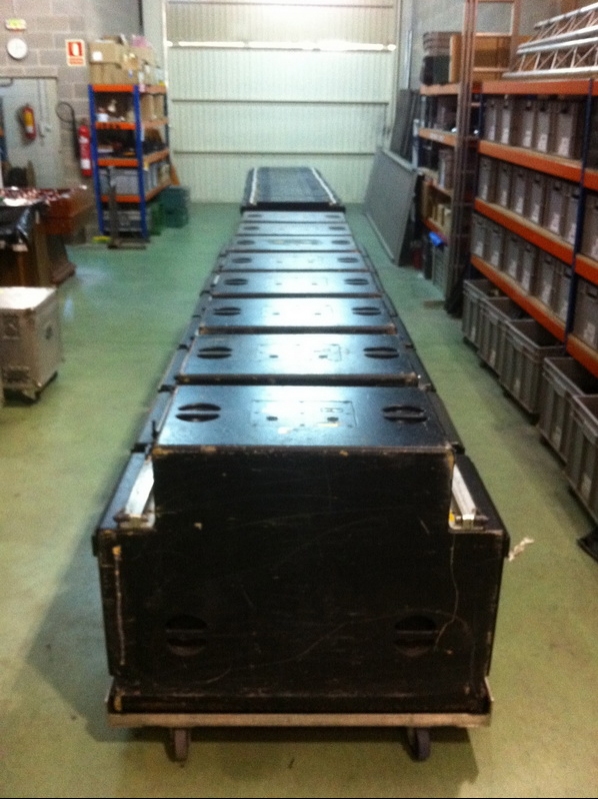

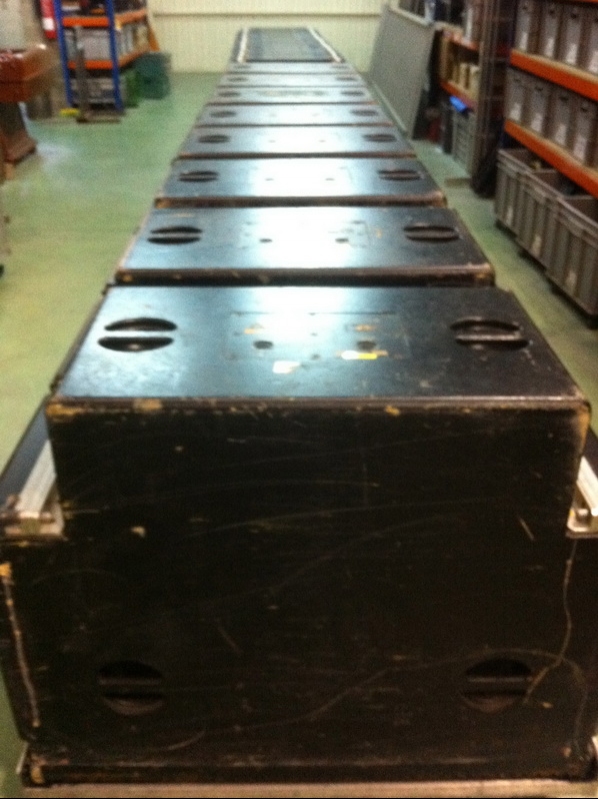

Aluminum Dolly Board

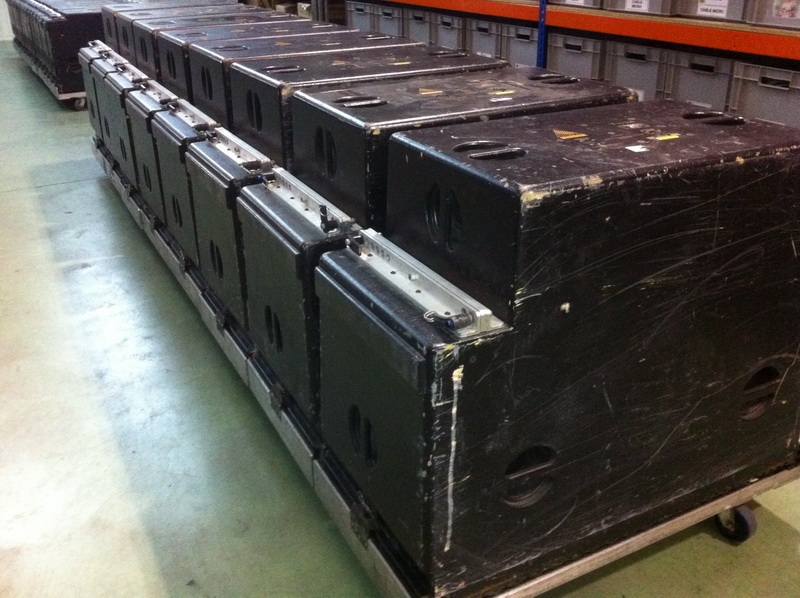

Stainless/Aluminum Slide Hinge Rigging
Used Adamson Systems Engineering
Brock Adamson's passion for sound has driven the evolution of Adamson Systems Engineering from a small speaker shop to a company invested in its own factory, with a broad engineering base and a wide range of computer controlled manufacturing machinery. Now Adamson is recognized as the most advanced manufacturer of loudspeaker systems in the industry.
A versatile range of products - from the highly acclaimed Y-Axis and SpekTrix true line source arrays to the SX and MH Series of conventional loudspeakers - has equated the Adamson brand name around the world with excellence and distinction.
Headsets and Beltpacks
- Headsets are simply headphones with an attached mic, usually a noise canceling condenser mic, used for communicating with other crew members during a show or production. Beltpacks provide power to the. Used . headset and allow it to be used remotely. . Used . ...Intelligent Lighting
- Intelligent lighting is stage lighting that has automated or mechanical functions beyond traditional, stationary illumination. While intelligent lights can at times display complicated effects and fun. Used . ctions, they are only capable of performing the task set up by the programmer and are therefore sometimes referred to as obedient lighting. Intelligent lights come in many forms, but commonly. Used . are yoked moving heads or scanners and are usually controlled by DMX signals from lighting controllers or consoles. ...Scoop Light
- Scoop lights or Scoops are circular fixtures that do not have any lenses. They have a reflector at the back of the fixture that directs the light out of the fixture. Since they do not have any sort o. Used . f lens system they are cheaper than other fixtures. However, the downside of this makes it so that you can not focus the light at all (even PAR's allow for more control than scoops). . Used . Conventional
- Conventional lighting is made up of stationary lights that can be moved, but only via manual means of adjusting, or focusing the fixture with a yoke. However, some aspects of the lights, like brightne. Used . ss and color may be controlled remotely
by consoles or analog audio inputs. There are many different conventional lights used in stage lighting design including floodlights, pars, foll. Used . owspots, ellipsoidals, fresnels, strips and cycs. ...Fresnel
- Fresnels are typically 8-, 6- or 4-inch, referring to the diameter of the lens. This light is named after Augustin-Jean Fresnel who invented the distinctive Fresnel lens which has a 'stepped' appearan. Used . ce instead of the 'full' or 'smooth' appearance of other lenses. The stepped nature of the lens causes a corresponding pattern of circles of light, so Fresnel lenses are usually 'stippled' on. Used . the flat side. This pattern of small bumps helps to break up the light passing into the lens to smooth out its eventual pattern.
Fresnels use a spherical reflector, with the filament of the bulb ...
Used Line Array Speakers
Line array speakers make up a loudspeaker system to create a sound source that produces an evenly distributed sound output. The driver of each line array element is close enough to the driver of the next element to create constructive interference. The resulting sound waves go farther than sound waves from traditional loudspeakers.
Line array systems date back to the early days of research in acoustics. Many old town halls and public venues still have old line source boxes which were found to project voice well though they are much smaller than horn-loaded speakers.
These days, line array speakers use different drivers for high-, mid- and low-frequency passbands that must be in line. Each enclosure must be set up closely to form columns composed of these drivers. To increase the frequency range and maximum sound pressure, the number of drivers per enclosure must be increased.
The orientation of line array speakers may vary. Vertical arrays are excellent for focusing sound at audiences without wasting output energy on ceilings or empty air above the audience because of its very narrow vertical output with a normally-wide horizontal pattern. On the other hand, horizontal line arrays have a very narrow horizontal output with a tall vertical pattern.
For hanging concert speakers which are usually part of a concert reinforcement system, enclosures are set up together using a specialized rigging hardware and they hang from a single point. These line array speakers are curved backward at the lower portion so that the sound will reach more audience.
