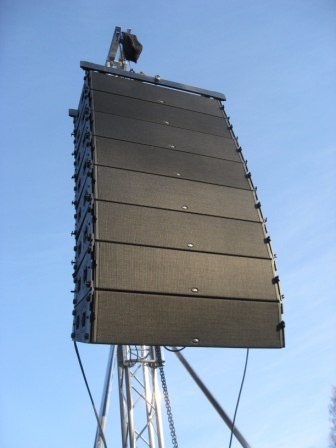

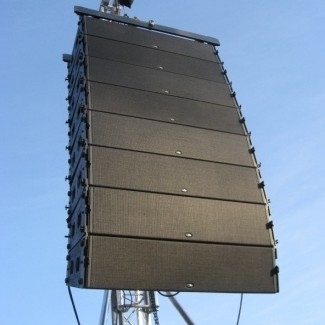

The Aero 38
A is a self-powered, three-way, high efficiency, line array module. The medium format trapezoidal enclosure integrates two 12GNC low frequency units with 4 in. voice coils, two 10LMN16 mid-range devices utilizing 3 in. voice coils and one ND-10 Compression Driver
with 4 in. coil and 1.5 in. exit geometry for high frequency reproduction. The Compression Driver
is coupled to the Serpis high frequency plane wave adaptor insuring coherent high frequency summing and the generation of a flat, isophasic wave front. All components incorporate neodymium magnet assemblies.
The Aero 38
A offers captive Rigging Hardware
that keeps all parts in place and makes joining one box to another, safe and simple. The rear located splay angle adjusters keep the front spacing between adjacent Elements

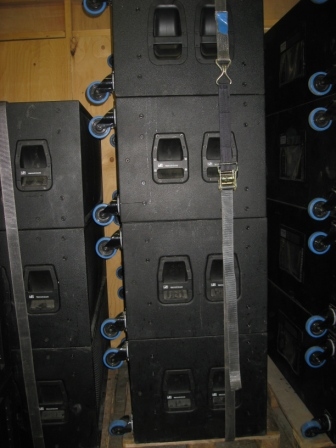

the same, providing a seamless front baffle for improved array performance. Moving individual units is easy thanks to the front located dolly panel. Multiple units can be moved with the optional steel stacking dolly.
Low frequency reproduction is handled by two 12GNC loudspeakers in a bass-reflex configuration. The 12GNC speakers incorporate 4 in. (100 mm) edge-wound flat wire (EFW) voice coils and lightweight neodymium magnet assemblies. High frequency reproduction is handled by one ND-10 large format Compression Driver
s using a 4 in. (100 mm) Titan
ium diaphragm, copper clad aluminum EFW voice coil and a 1.5 in. exit throat coupled to SERPIS high frequency plane wave generator.
Power is provided by a three-channel class "D" power amplifier. Protections include short circuit protection on each channel, overload and thermal protection, dynamic clip and power limiting.
Compatible with Aero-48 and Subwoofer
Aero-182/182A, flying hardware is integral to the box and provides for splay angles from 0 to 10 degrees in 2.5 degree increments, hinge points being located on the front for seamless arraying.
Used D.A.S. Audio
Today, we manufacture loudspeaker systems and components, which we supply to other manufacturers throughout the world. Power amplifiers, electronic signal processors, and accessories complete a vast array of products that address the gamut of sound reinforcement applications.
Loudspeaker and system designs are developed by a staff of engineers aided by advanced computer assisted design programs. Performance testing is done with proprietary software such as Autopol, a platform for automated acquisition and processing of directivity data.
A well planned industrial process, careful selection of suppliers, and the in-house production of loudspeaker components optimized for use in D.A.S. Audio sound systems empowers the company with quality levels and cost efficiency matched by only a few.
- Fresnels are typically 8-, 6- or 4-inch, referring to the diameter of the lens. This light is named after Augustin-Jean Fresnel who invented the distinctive Fresnel lens which has a 'stepped' appearan. Used . ce instead of the 'full' or 'smooth' appearance of other lenses. The stepped nature of the lens causes a corresponding pattern of circles of light, so Fresnel lenses are usually 'stippled' on. Used . the flat side. This pattern of small bumps helps to break up the light passing into the lens to smooth out its eventual pattern.
Fresnels use a spherical reflector, with the filament of the bulb ...Laser
- LASER is acronym for Light Amplified by Stimulated Emission of Radiation and is an optical source that emits photons in a coherent concentrated beam. There are many different kinds of LASERs producing. Used . many different colors, but red is the most common.. Used . ...Reverb
- Reverb is an audio effect that reproduces the many echos that occur when a sound is produced in an enclosed space where the sound is reflected repeatedly by the boundaries of the enclosure, even after. Used . the source of the sound stops. The number of echos and the duration of the echos can be varied and with some modern effects units, the shape of the enclosure can be altered as well.. Used . ...Arc Lamp
- An arc lamp is a device that produces light by the sparking (or arcing, from voltaic arc or electric arc) of a high current between two carbon rod electrodes. The rods are touched and then slowly draw. Used . n apart; as the rods separate the current is "struck" and arcs across the gap in a bright, ionized path. The arc produces a temperature of several thousand degrees, and the tips of the carbon. Used . rods are heated to incandescence, creating light. The rods are slowly vaporized during the process and need to be regularly adjusted to maintain the arc. The concept was first demonstrated by Sir Humphry Davy...Ampere
- The ampere (symbol: A) is the SI base unit of electrical current equal to one coulomb per second. It is named after André-Marie Ampère, one of the main discoverers of electromagnetism.
Th. Used . e ampere is that constant current which, if maintained in two straight parallel conductors of infinite length, of negligible circular cross-section, and placed 1 metre apart in vacuum, would . Used . produce between these conductors a force equal to 2×10–7 newton per metre of length....
Used Line Array Speakers
Line array speakers make up a loudspeaker system to create a sound source that produces an evenly distributed sound output. The driver of each line array element is close enough to the driver of the next element to create constructive interference. The resulting sound waves go farther than sound waves from traditional loudspeakers.
Line array systems date back to the early days of research in acoustics. Many old town halls and public venues still have old line source boxes which were found to project voice well though they are much smaller than horn-loaded speakers.
These days, line array speakers use different drivers for high-, mid- and low-frequency passbands that must be in line. Each enclosure must be set up closely to form columns composed of these drivers. To increase the frequency range and maximum sound pressure, the number of drivers per enclosure must be increased.
The orientation of line array speakers may vary. Vertical arrays are excellent for focusing sound at audiences without wasting output energy on ceilings or empty air above the audience because of its very narrow vertical output with a normally-wide horizontal pattern. On the other hand, horizontal line arrays have a very narrow horizontal output with a tall vertical pattern.
For hanging concert speakers which are usually part of a concert reinforcement system, enclosures are set up together using a specialized rigging hardware and they hang from a single point. These line array speakers are curved backward at the lower portion so that the sound will reach more audience.
