Buy Used Aero 38A by D.A.S. Audio

Aero 38A

D.A.S. Audio

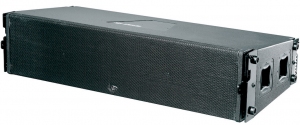

The Aero 38A is a self-powered, three-way, high efficiency, line array module. The medium format trapezoidal enclosure integrates two 12GNC low frequency units with 4 in. voice coils, two 10LMN16 mid-range devices utilizing 3 in. voice coils and one ND-10 Compression Driver with 4 in. coil and 1.5 in. exit geometry for high frequency reproduction. The Compression Driver is coupled to the Serpis high frequency plane wave adaptor insuring coherent high frequency summing and the generation of a fla...
Also Known As: Used aero 38

Used & New Prices

Used Price - USD View Used Prices
We can find this item used for you. Find This Product Used
New Price Request a New Price Quote Get New Price

Used Aero 38A For Sale

Contact a Sales Specialist about used Aero 38A for sale.
+1.404.817.9300

Aero 38A Line Array Speakers

... generation of a flat, isophasic wave front. All components incorporate neodymium magnet assemblies.

The Aero 38A offers captive Rigging Hardware that keeps all parts in place and makes joining one box to another, safe and simple. The rear located splay angle adjusters keep the front spacing between adjacent Elements the same, providing a seamless front baffle for improved array performance. Moving individual units is easy thanks to the front located dolly panel. Multiple units can be moved with the optional steel stacking dolly.

Low frequency reproduction is handled by two 12GNC loudspeakers in a bass-reflex configuration. The 12GNC speakers incorporate 4 in. (100 mm) edge-wound flat wire (EFW) voice coils and lightweight neodymium magnet assemblies. High frequency reproduction is handled by one ND-10 large format compression drivers using a 4 in. (100 mm) Titanium diaphragm, copper clad aluminum EFW voice coil and a 1.5 in. exit throat coupled to SERPIS high frequency plane wave generator.

Power is provided by a three-channel class "D" power amplifier. Protections include short circuit protection on each channel, overload and thermal protection, dynamic clip and power limiting.

Compatible with Aero-48 and Subwoofer Aero-182/182A, flying hardware is integral to the box and provides for splay angles from 0 to 10 degrees in 2.5 degree increments, hinge points being located on the front for seamless arraying.
D.A.S. Audio

D.A.S. Audio Line Array Speakers

Today, we manufacture loudspeaker systems and components, which we supply to other manufacturers throughout the world. Power amplifiers, electronic signal processors, and accessories complete a vast array of products that address the gamut of sound reinforcement applications. Loudspeaker and system designs are developed by a staff of engineers aided by advanced computer assisted design programs. Performance testing is done with proprietary software such as Autopol, a platform for automated acquisition and processing of directivity data. A well planned industrial process, careful selection of suppliers, and the in-house production of loudspeaker components optimized for use in D.A.S. Audio sound systems empowers the company with quality levels and cost efficiency matched by only a few.
Crossfade - A value of time that is assigned to a parameter that controls the duration of change from one DMX value to another DMX value or to fade from one scene to another. This is a lighting console term.. Used . . Used . ...

AB - A stereo recording technique. Two microphones of the same make and model are located next to one another in , and point in the same direction. The left mic is panned hard left on the mixer. The right. Used . mic is panned hard right.

This technique has flaws, such as audio reflections from each mic which can cause comb filtering (narrow coverage). This can be somewhat corrected by s. Used . pacing the mics out, but this will not fully correct the problem and can lead to muddy sound from delay artifacts.

Adaptor - A connector allowing more than 2 electrical devices to be connected to a single power source. These connections are normally in parallel (each device is given the same voltage levels), but current is . Used . divided between them. Also known as a "Twofer".

3-way splitters are known as "Threefers".. Used . ...

Acoustics - Acoustics is a branch of physics and is the study of sound, mechanical waves in gases, liquids, and solids. A scientist who works in the field of acoustics is an acoustician. The application of acoust. Used . ics in technology is called acoustical engineering. There is often much overlap and interaction between the interests of acousticians and acoustical engineers.

"... acoustics is . Used . characterized by its reliance on combinations of physical principles drawn from other sources; and that the primary task of modern physical acoustics is to effect a fusion of the principles normally adhering t...

Intelligent Lighting - Intelligent lighting is stage lighting that has automated or mechanical functions beyond traditional, stationary illumination. While intelligent lights can at times display complicated effects and fun. Used . ctions, they are only capable of performing the task set up by the programmer and are therefore sometimes referred to as obedient lighting. Intelligent lights come in many forms, but commonly. Used . are yoked moving heads or scanners and are usually controlled by DMX signals from lighting controllers or consoles. ...

Line Array Speakers

Line array speakers make up a loudspeaker system to create a sound source that produces an evenly distributed sound output. The driver of each line array element is close enough to the driver of the next element to create constructive interference. The resulting sound waves go farther than sound waves from traditional loudspeakers. Line array systems date back to the early days of research in acoustics. Many old town halls and public venues still have old line source boxes which were found to project voice well though they are much smaller than horn-loaded speakers. These days, line array speakers use different drivers for high-, mid- and low-frequency passbands that must be in line. Each enclosure must be set up closely to form columns composed of these drivers. To increase the frequency range and maximum sound pressure, the number of drivers per enclosure must be increased. The orientation of line array speakers may vary. Vertical arrays are excellent for focusing sound at audiences without wasting output energy on ceilings or empty air above the audience because of its very narrow vertical output with a normally-wide horizontal pattern. On the other hand, horizontal line arrays have a very narrow horizontal output with a tall vertical pattern. For hanging concert speakers which are usually part of a concert reinforcement system, enclosures are set up together using a specialized rigging hardware and they hang from a single point. These line array speakers are curved backward at the lower portion so that the sound will reach more audience.
