Used WideLine-8 | For Sale Item# 38286

QSC
QSC
View more WideLine-8
View more Line Array Speakers

Quantity 1
Condition Excellent / Few Scratches
Year 2010
Location North America
Case Type Cased
Previous Use Corporate
Warranty 7 Day

Description

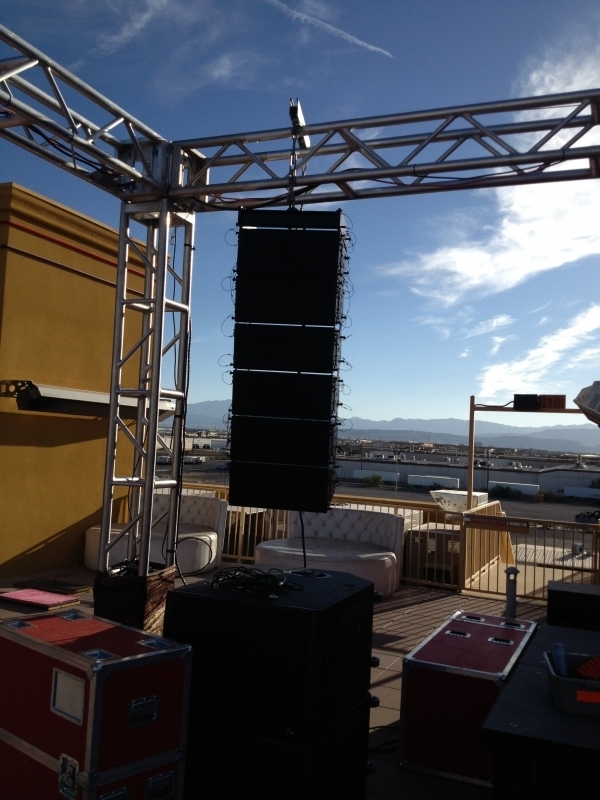

Lightly used on various corporate events. Cleaned, maintained, and tested by in house technicians.

What's Included

(12) WideLine-8
(2) 6 Way Flight Cases
(2) Subs
Fly Bars included with this package.
2 macro tech 5000I
2 Macrotech 9000I
Cables included

Featured & Other Line Array Speakers

Featured & HOT Deals

QSC | Solaris

QSC

QSC

Buy QSC

After more than three decades in the business, QSC Audio Products, Inc., has become a globally recognized leader in audio manufacturing. This prominence is the result of the company's mission to establish new standards of reliability and...

Product Information

WideLine-8

WideLine-8

Designed for the most demanding concert and installation audio professionals, the WideLine-8 system sets new standards for astonishing acoustical performance and compact size.

Line arrays are increasingly employed in a wider range of venues and applications. Frequently these venues have height or sightline restrictions that limit the placement and size of the array. Rising fuel costs are putting pressure on touring system providers to downsize their transportation requirements. At the same time, client and audience expectations for Audio Performance has never been higher. To meet these needs, QSC embarked on a program to develop the most compact, highest output line array speaker system available.

QSC's WideLine-8 packs full size line array performance into an ultra compact package measuring less than 20" (508 mm) wide and 9" (229 mm) high. The WideLine-8 applies to audio the classic hot rod, high performance formula putting the most horsepower available into the smallest chassis possible.

Each tri-amplified WideLine-8 element uses a pair of high-power, neodymium magnet, 8" low-frequency drivers. Both cover low frequencies while only one extends into the midrange, thus maintaining horizontal dispersion control at crossover. High frequencies are handled by a premium, 3" diaphragm, neodymium compression driver mounted to QSC's patented, 140deg multiple aperture diffraction waveguide. WideLine signature wide coverage delivers a broader stereo image, reduces the need for supplemental fill speakers and allows more placement options.

The waveguide exit extends nearly to the top and bottom of the enclosure to create a continuous acoustical source with minimal discontinuities between adjacent Elements resulting in greatly reduced destructive interaction.

The WideLine-8 sub sets a new benchmark for extraordinary acoustic output from a miniscule enclosure. At first glance, the enclosure seems too small to even house its pair of 4" voice-coil, long-excursion 12" woofers, yet it produces 135 dB (peak) SPL and has LF extension to 32 Hz, with the punch needed for popular music. The extremely low profile of the WL212-sw sub (less than 15") also makes it a great choice for installed and portable use under a stage or in other tight quarters. The 4th order bandpass design matches the width of the WideLine-8 Elements allowing it to be flown inline with or behind a WideLine-8 array.

Premium materials are used throughout the system. The enclosure is constructed of Baltic birch plywood and coated in an environmentally friendly, waterborne polymer finish that is field repairable. To keep the weight to a minimum and prevent rust, suspension fittings are made of aluminum.

An elegantly simple 4-point suspension system combined with lightweight, compact size and excellent handling ergonomics mean that a one person crew can easily deploy an array. A single AF3082-L array frame suspends up to twelve line array Elements or up to twelve line array Elements plus four subwoofers. The WideLine-8 system is equally at home in the air or ground stacked.

Special attention is given to ground-stacked applications. The WideLine-8 sub suspension system includes a unique provision that allows the lowest line array element stacked over a sub to be tilted up or down by as much as 10deg, offering better coverage of listeners near the stage. WideLine-8 subs may be used as a base for stacking up to six WideLine-8 Elements.


WideLine-8 Signal Processing
The WL3082 is designed for tri-amplification. Adding WL212-sw subwoofers creates a 4-way active system.

For applications in which audio quality is paramount but operational simplicity and low-cost are also critical, the QSC SC28 processor delivers factory programmed voicings while also offering user-adjustable system equalization, offset delays and output levels.

QSC system engineers have employed the power of the SC28's FIR (finite impulse response) filters to implement Intrinsic Correction? of the loudspeaker. Intrinsic Correction provides the most accurate acoustical magnitude, frequency and phase domain performance possible. Intrinsic Correction can compensate for many causal phenomena such as the effects of waveguide acoustical impedance and loudspeaker cone resonance. The result is a loudspeaker system with excellent power response and extremely natural, uncolored sound across its frequency band and coverage area. An array of loudspeakers with Intrinsic Correctiontunings will be very responsive to the use of equalization to compensate for array configuration, acoustical conditions or user preferences. For users needing sophisticated, programmable DSP, voicings are available for QSC BASIS? processors.



LINE ARRAY SYSTEMS
ILA Installation Line Array
WideLine-10
WideLine-8
Introduction & Features
Specifications
Dimensions
Image Gallery
Accessories
WideLine Owners
Weatherized WideLine Systems

DOCUMENTS
WideLine-8 Specifications (PDF 1.27MB)
Especificaciones de WideLine-8 (PDF 1.3MB)
WideLine-8 User Manual (includes array frames and accessories) (PDF 23MB)
WideLine-8 Structural Certification (PDF 1.3MB)

Learn More About WideLine Line Array Systems

HI-RES IMAGES
Image Gallery

CAD DRAWINGS
WL3082 (DXF, zipped 265K)
WL212-sw (DXF, zipped 204K)
WideLine-8 Accessories (DXF, zipped 657K)

SOFTWARE
WideLine-8 Venue Manager Macros
EASE Focus software for aiming line arrays
Loudspeaker Modeling Data (CLF)
EASE Loudspeaker Data

ARCHITECT'S & ENGINEER'S SPECIFICATIONS
WL3082
WL212-sw
RELATED PRODUCTS
ISIS WL218-sw WideLine Subwoofer
SC28 System Controller
QSControl.net BASIS

IMPORTANT NOTE:

Signal Processing Requirements

Like most line-array systems available today, QSC WideLine and ILA line-arrays require carefully optimized signal processing in order to perform as intended. QSC has developed processing settings for these loudspeaker systems using our SC28, BASIS and Q-Sys digital processing devices. Arriving at these settings requires skilled engineers, sophisticated measurement equipment and repeated listening in various environments.

It is not possible to simply take the parameters from a QSC processor, transfer them to another processor and get the same results. Other processor manufacturers use different algorithms and design techniques that will produce a different transfer function even if the settings are substantially the same. As a result, QSC is unable to provide settings or tuning support for our line array systems when used with any processors other than those specified by QSC.





Flexible Arrays
Arrays can be assembled using only WL3082 line arrays modules, with WL212-sw subwoofers at the top of the array, or by utilizing the EB3082 extension bar, subwoofers can be flown behind the main array.

Arrays of up to twelve WL3082 modules, with four WL212-sw subwoofers flown behind can be accommodated by the combination of 2 x AF3082-S small array frames and a single EB3082 extension bar (Figure A). As many as twelve WL3082 modules can be suspended using one AF3082-S (Figure B) while the AF3082-L large array frame can be used to assemble arrays of up to 12 x WL3082 modules alone or suspended below up to 4 x WL212-sw subwoofers (Figure C). The AF8-10 adapter frame (not shown) allows the user to add WL3082 WideLine-8 arrays beneath WL2012 WideLine-10 arrays. The PB3082 pullback bar (not shown) can be used to attain extra downangle in flown arrays or as a suspension bar for arrays of up to eight WL3082 modules.


Optimized Ground Stacking
WideLine-8 rigging doubles as an optimized ground stacking system. Using the WL212-sw Subwoofer as a base, arrays of WL3082 line array Elements can be aimed downward by as much as ten degrees to cover audience areas close to a stage, as well as upward by as much as ten degrees in order to better cover distant balcony seating areas.
