Used WideLine-10 | For Sale Item# 29080

QSC
QSC
View more WideLine-10
View more Line Array Speakers

Quantity 1
Condition Excellent / Few Scratches
Year 2007
Location North America
Case Type Dollies & Covers
Previous Use Corporate
Warranty 7 Day

Description

Previously used on various corporate events. Cleaned, maintained, and tested by authorized technicians.

What's Included

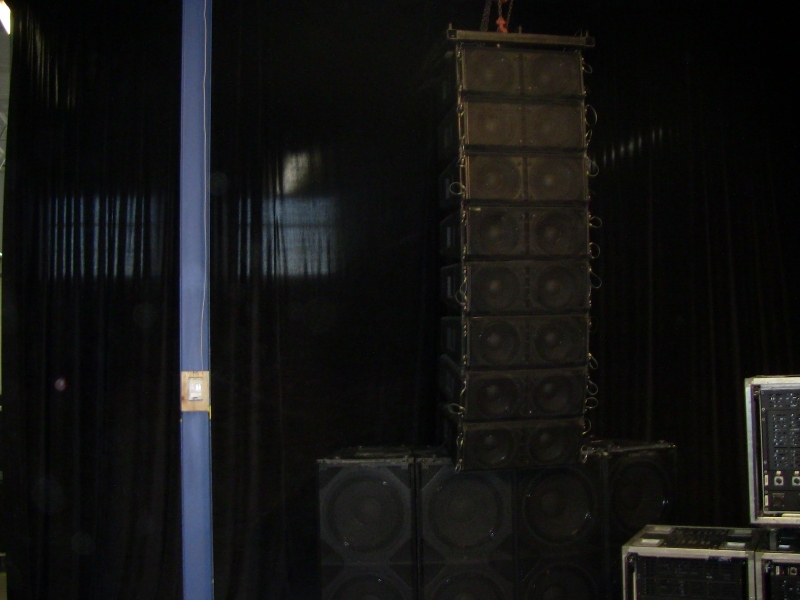

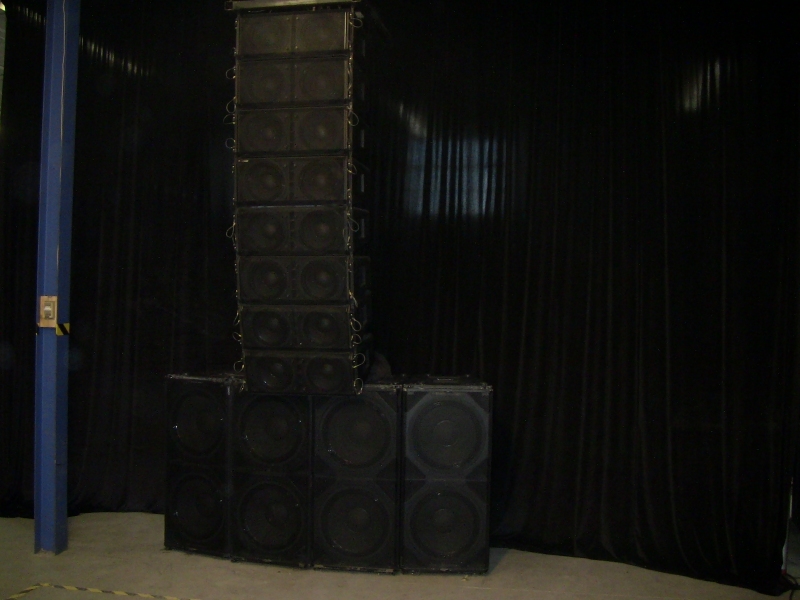

(16) Wideline 10 top cabinets (composite)
(8) WL 218-sw subs

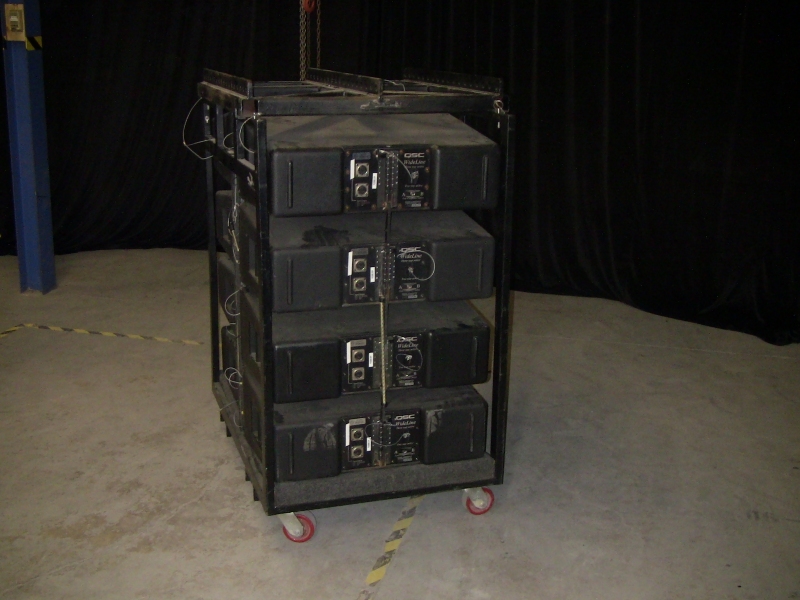

Dollies and covers for subs

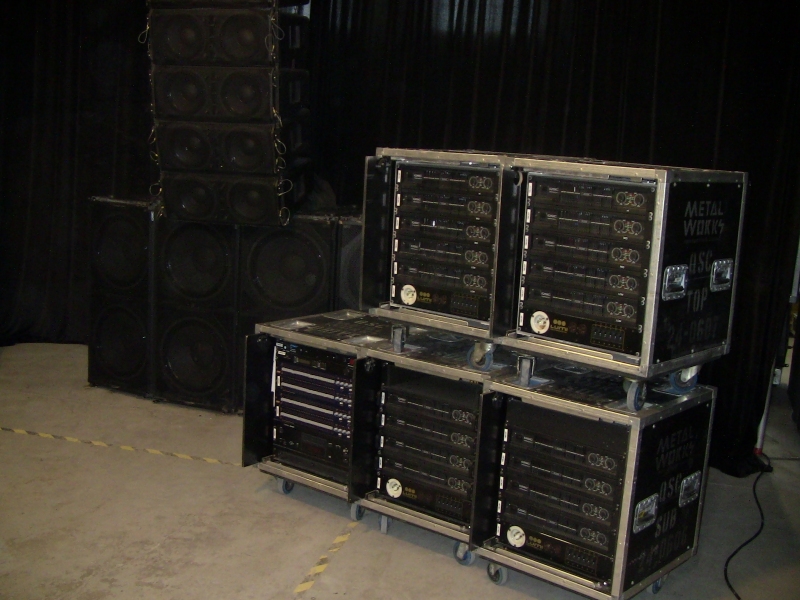

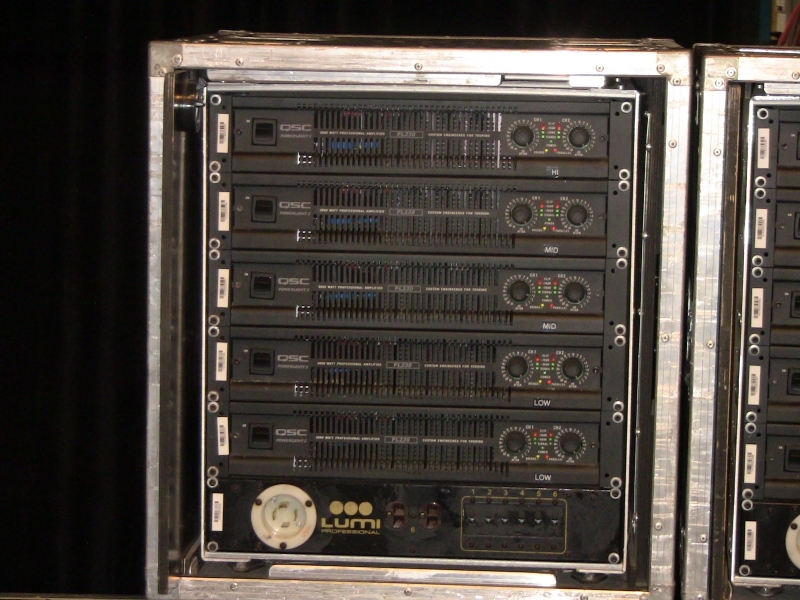

(16) QSC PL230 Amps
AC L1430 distro
QSC SC28 loudspeaker management controller
(2) Large frame bumpers
(2) Speaker racks

Featured & Other Line Array Speakers

Featured & HOT Deals

QSC | Solaris

QSC

QSC

Buy QSC

After more than three decades in the business, QSC Audio Products, Inc., has become a globally recognized leader in audio manufacturing. This prominence is the result of the company's mission to establish new standards of reliability and...

Product Information

WideLine-10

WideLine-10

The QSC WideLine is a full range line array loudspeaker system designed for use in a wide variety of venues, ranging from ballrooms, theaters and nightclubs to concert halls, houses of worship and arenas. The WideLine features an open, natural sound quality and exceptionally wide 140deg horizontal coverage pattern - the widest of any line array system currently available.

WideLine is a three transducer system and can be operated in either biamplified or triamplified modes. Both 10" diameter low-frequency transducers are used to cover the lowest frequency range. One driver covers only low frequencies while the range of the other extends through the mid frequencies to the mid/high crossover point. The use of a single midrange transducer allows the horizontal coverage pattern to remain as wide as possible and assures smooth response both on and off axis at the transition to the diffraction slot loaded high frequency section. Biamplification uses passive Elements to affect the required frequency response shading of the low-frequency drivers and offers reduced amplifier channel counts and simplified wiring. Triamplification allows the required low-frequency shading to be controlled with greater precision via active electronics and is recommended where maximum output and highest sound quality are required.

The WideLine's 16 ohm per transducer lowfrequency impedance optimizes allocation of amplifier channels. In biamp mode the LF/MF sections of up to four enclosures can be powered by one amplifier channel operating into a two ohm load. In triamp mode the LF and MF sections of up to eight enclosures can be powered by a single two channel amplifier.

The high-frequency section consists of a 1.4" exit, 3" 16 ohm, neodymium Compression Driver, mounted on a proprietary multiple aperture diffraction slot waveguide. This patented device produces the ideal linear source needed for good line array performance, and facilitates the enclosure's exceptionally wide horizontal coverage.

The WL2102 features lightweight, highly weather resistant cored composite construction resulting in a net weight of just 70 lbs per enclosure; less than half the weight of some conventional designs.

The enclosure of the WL2102-w (pictured) is constructed of industry standard birch plywood resulting in a slight increase in weight; 83 lbs/37.7 kg vs. 70 lbs/31.8 kg for the WL2102, at a substantial cost savings for more price sensitive applications where the ultra light weight and extreme weather resistance of the cored composite enclosure are not required. The mechanical design allows composite and plywood enclosures to be arrayed together.

Wideline features a unique 3-point suspension system allowing construction of arrays of up to 24 enclosures (5:1 design factor). A 12 enclosure hang will maintain a 10:1 design factor which may be dictated by local regulations and practices. Vertical splay angles between adjacent enclosures are adjustable in one degree increments from zero to ten degrees. All hardware required to construct an array is permanently attached to the enclosure; there are no loose parts to misplace.

Two array frame models offer the user the flexibility to choose the right tool for the job. The AF2102, the larger of the two, can accommodate array sizes up 12 enclosures while maintaining a design factor of 10:1. The smaller AF2102-s does triple-duty; accommodating suspended arrays of up to six enclosures with a 10:1 design factor, acting as a base for ground-stacked arrays of up to six enclosures and as an attachment allowing WideLines to be stacked atop QSC 215PCM and 215SB subwoofers.



IMPORTANT NOTE:

Signal Processing Requirements

Like most line-array systems available today, QSC WideLine and ILA line-arrays require carefully optimized signal processing in order to perform as intended. QSC has developed processing settings for these loudspeaker systems using our SC28, BASIS and Q-Sys digital processing devices. Arriving at these settings requires skilled engineers, sophisticated measurement equipment and repeated listening in various environments.

It is not possible to simply take the parameters from a QSC processor, transfer them to another processor and get the same results. Other processor manufacturers use different algorithms and design techniques that will produce a different transfer function even if the settings are substantially the same. As a result, QSC is unable to provide settings or tuning support for our line array systems when used with any processors other than those specified by QSC.

QSC

After more than three decades in the business, QSC Audio Products, Inc., has become a globally recognized leader in audio manufacturing. This prominence is the result of the company's mission to establish new standards of reliability and performance through the development of breakthrough technologies. QSC changed the face of amplifier technology with the introduction of QSC's exclusive PowerWave switching power supply, a technological advance that makes heavy, bulky and inefficient amplifiers a thing of the past. PowerWave, first incorporated into the revolutionary PowerLight Series and now used in three other amplifier lines, is proof that high power can be achieved in small, lightweight packages. While QSC continues to set the standard for amplifier technology, the company has also made significant strides in computer control, digital signal processing and signal transport. QSControl (pronounced Q's Control), a remote audio monitoring system application, has proven its performance in systems worldwide, from the world's tallest buildings (the Petronas Towers in Malaysia) to Mandalay Bay Hotel and Casino in Las Vegas. QSC recently entered the professional loudspeaker business. Several of the company's enclosures incorporate Composiliteā?¢, a patented core composite technology that yields superior acoustic properties, lighter weight, and outstanding weather resistance compared to conventional enclosure materials. The introduction of RAVE (Routing Audio Via Ethernet), which gives users a simpler way of transporting up to 64 channels of digital audio using Peak Audio's CobraNet technology, provides more evidence of QSC's commitment to creating system solutions based on open standards and protocols. "When this company was started, there was a common commitment to creating with integrity," said QSC CEO Barry Andrews. "That commitment has strengthened over the years. QSC products have a reputation for quality, innovation and reliability. Moving into the fully integrated systems allows us to expand that commitment into an area we feel is the future of system design." The exceptionally high value of QSC products is achieved through developing leading technologies, world-class manufacturing techniques, and the purchasing power possible as the world's leading amplifier producer. To meet growing customer demand, QSC has expanded its manufacturing capability with a new 81,000-sq.-ft., state-of-the-art production facility. The new factory, which has the ability to triple QSC's production capacity, is located next to QSC's current 51,000-sq.-ft. headquarters in Costa Mesa, Calif. Manufacturing, warehousing, corporate offices, engineering, technical services, and sales are housed in both buildings.

Used Line Array Speakers

Find used line array speakers and line array elements from such popular brands as L-Acoustics, d&b audiotechnik, Meyer Sound and Nexo. All used line array speakers are warrantied and in most cases inspected by factory certified technicians. Solaris sells and buys secondhand and used line arrays for large concerts, tours, stadiums and auditoriums. Call us if you don't find it and we will find it for you.

WideLine-10 - QSC 10 Wideline Array package. Used on various rentals.
WideLine-10 Package - Complete turn key system that is ready to rock.
