The Martin Audio

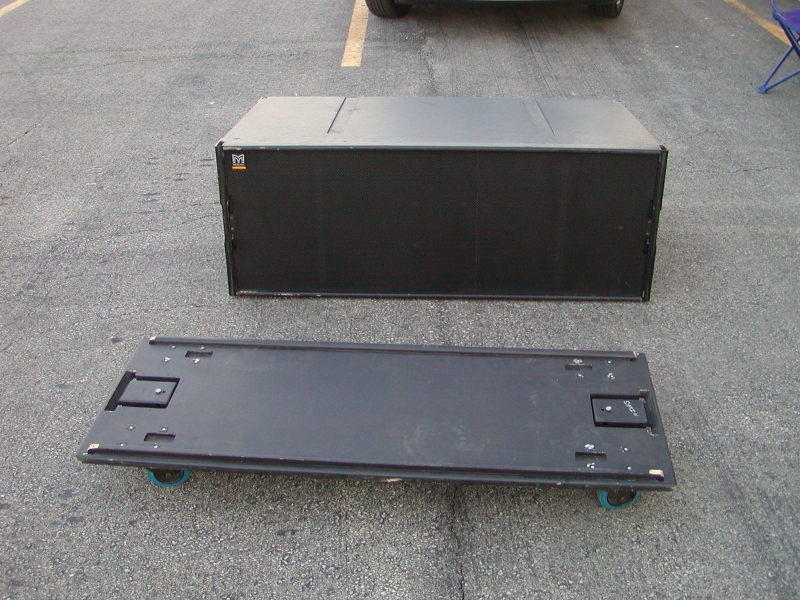

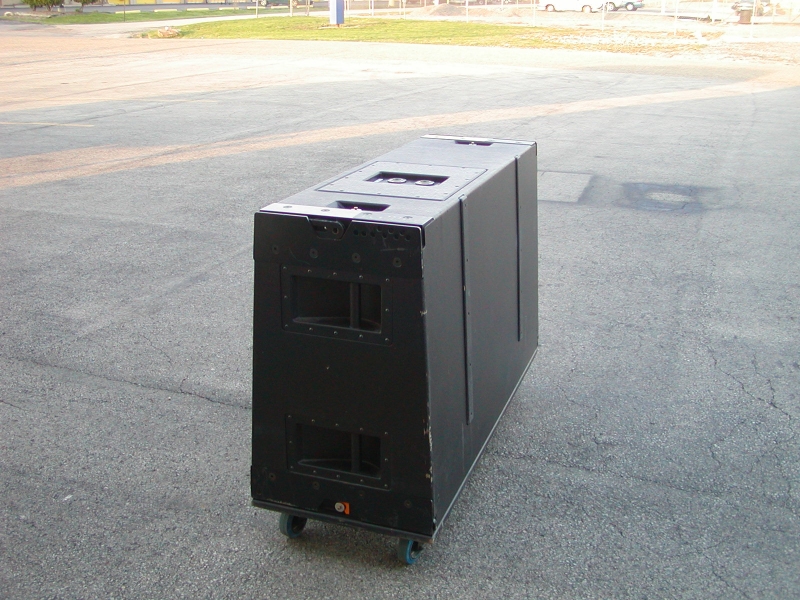

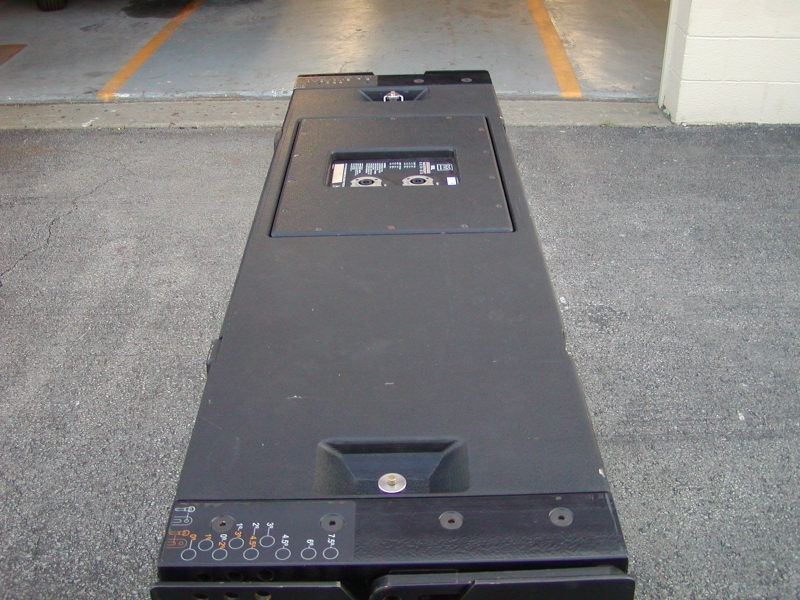

Wavefront W8L is a line array system which combines innovative horn loading techniques with line array technology to produce a very powerful line array with maximum dynamic impact. It is a 3-way, full-range system and may be used withouT Sub
woofers for many applications. Where very low frequency extension is required, a W8L array will integrate seamlessly with the Martin Audio
WSX folded-horn Subwoofer
in a fully horn-loaded 4-way configuration.
Used Martin Audio
Martin Audio was founded in 1971 to manufacture and supply world class touring systems for the supergroups of the day that included Pink Floyd and Supertramp.
We are very proud of this heritage. Designing leading edge live performance systems has remained core to our success.
Today, Martin Audio enjoys an international reputation for supplying superb performance ready systems across the spectrum of sound reinforcement applications. Our portfolio of products, now highly developed, meet customer requirements for every market sector.
Renowned for integrity in design, technical excellence and the longevity of its products, Martin Audio takes system creation into
a further dimension. Our aim is for every member of the audience to enjoy an exceptional sonic experience.
Martin Audio systems are designed with in-built sound qualities which artists can rely on to faithfully reproduce their performance to every corner of the auditorium.
- Intelligent Fixtures or Moving Lights were originally implemented in 1972, but the first computer-controlled stage lighting fixtures began to gain widespread acceptance in the concert industry in the . Used . early 1980's. As the digital age progressed, the cost of these fixtures was reduced and they slowly started being used in more 'traditional' theatrical environments. Intelligent fixtures are . Used . currently used in almost all major theatrical productions.
Usually relying on compact arc lamps as a light source, these fixtures generally use stepper motors connected to varying internal devices...Yoke
- The metal strip running over the top and on both sides of a light to which the G-Clamp is attached. . Used . . Used . ...Patch Bays
- A patch bay is a panel, usually rack mounted, that uses cable connections to allow technicians to quickly change the physical path of a select signal. Generally, shorter patch cables will plug into fr. Used . ont of the panel, while the back will have have much longer connections to more permanent cables and equipment. . Used . ...House Lights
- House lights are incandescent or fluorescent floodlights. House lights provide light for the audience before and after performances and during intermissions. Work lights provide general lighting backs. Used . tage, or in the house. House lights are often controlled by dimmers, but are sometimes on simple switches. Work lights are almost always switched only. House and work lights are usually off d. Used . uring performances but are occasionally included in the lighting design to establish focus or emphasize plot elements. ...Depth of Field
- While a lens focuses on a single plane of depth, there is usually an additional area in focus behind and in front of that plane. This is depth of field. Depth of field increases as the iris is closed.. Used . There is more depth of field the wider the lens and le . Used . ...
Used Line Array Speakers
Line array speakers make up a loudspeaker system to create a sound source that produces an evenly distributed sound output. The driver of each line array element is close enough to the driver of the next element to create constructive interference. The resulting sound waves go farther than sound waves from traditional loudspeakers.
Line array systems date back to the early days of research in acoustics. Many old town halls and public venues still have old line source boxes which were found to project voice well though they are much smaller than horn-loaded speakers.
These days, line array speakers use different drivers for high-, mid- and low-frequency passbands that must be in line. Each enclosure must be set up closely to form columns composed of these drivers. To increase the frequency range and maximum sound pressure, the number of drivers per enclosure must be increased.
The orientation of line array speakers may vary. Vertical arrays are excellent for focusing sound at audiences without wasting output energy on ceilings or empty air above the audience because of its very narrow vertical output with a normally-wide horizontal pattern. On the other hand, horizontal line arrays have a very narrow horizontal output with a tall vertical pattern.

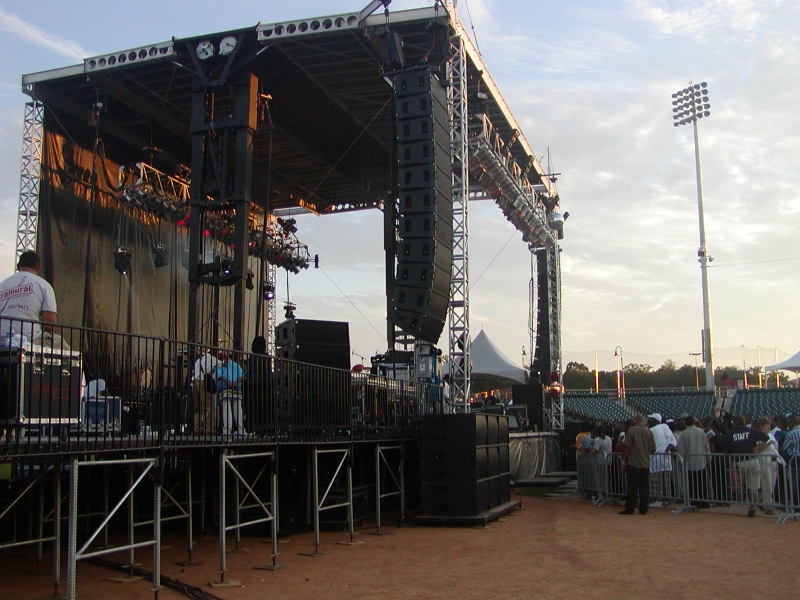

For hanging concert speakers which are usually part of a concert reinforcement system, enclosures are set up together using a specialized rigging hardware and they hang from a single point. These line array speakers are curved backward at the lower portion so that the sound will reach more audience.
