By producing flat amplitude and phase responses, full-range bandwidth and exceptional impulse response, the UM-1P far exceeds the capabilities of conventional stage Monitors. The UM-1P provides 133 dB SPL peak at 1 meter with excellent intelligibility and without distortion or coloration.
The UM-P Series horns exhibit Constant-Q: the beamwidth remains consistent across the horn's operating frequency range in both the vertical and horizontal planes. The UM-1P's narrow, symmetrical coverage (45deg horizontal x 45deg vertical) affords pinpoint aiming with minimal interaction between adjacent units. Frequency response is uniform across the specified beamwidth, with minimal side lobes.
The compact, self-powered UM-1P enclosure houses a 12-inch cone driver and a 3-inch diaphragm compression driver along with phase-corrected control electronics and amplification. A dedicated, proprietary class AB/bridged amplifier (700 watts total) with complementary MOSFET output stages powers the high- and low-frequency drivers. TruPower limiting prevents driver over-excursion and regulates voice coil temperature, protecting the drivers and assuring high sound pressure levels with minimal power compression. The Intelligent AC power supply provides automatic voltage selection, EMI filtering, high voltage transient suppression and soft start at power-up.
With the addition of an optional module, the UM-1P may be integrated into Meyer Sound's RMS remote monitoring system, a Windows-based computer application for monitoring the full range of amplifier and limiter operating parameters.
Meyer Sound
Established by John and Helen Meyer in 1979, Meyer Sound has been at the forefront of innovation in audio engineering for over two decades. From the outset, Meyer Sound looked beyond loudspeaker cabinet design to create totally integrated, systems-comprehensive solutions that encompass transducer design, signal processing, power amplification and even electroacoustic measurement systems. As a result, Meyer Sound's engineering teams have earned an enviable reputation for developing unique, innovative solutions to some of the most difficult problems confronting audio professionals.
In fact, it is fundamental to John Meyer's philosophy that no component of a system should be compromised in order to compensate for variables "upstream" or "downstream." Instead, the entire system should be conceived, designed, tested, confirmed and manufactured as a whole to provide the optimum blend of audio fidelity, utility and long-term reliability.
Used Monitors
Find used speaker monitors and stage monitors from popular brands as L-Acoustics, Turbosound, EAW and Meyer Sound. All used speakers we carry are warrantied and in most cases inspected by factory certified technicians.
Solaris sells and buys secondhand and used stage monitors and monitors for use in churches, clubs, theaters and other large events and shows. Call us if you don't find it and we will find it for you.

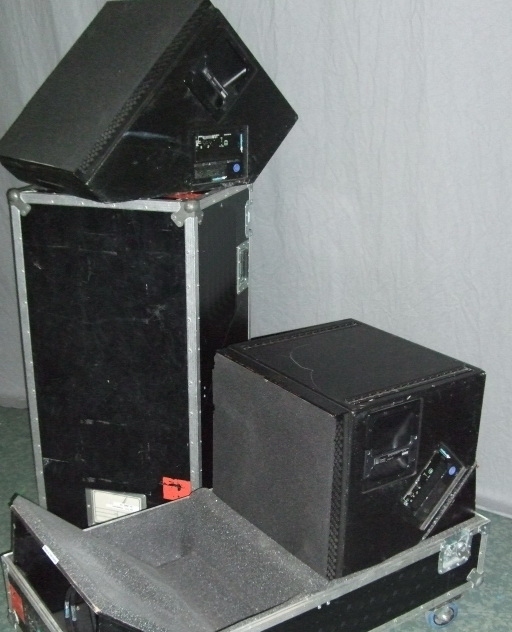

UM-1P Package - Package of (2) UM-1P(s). Used on various rentals.
UM-1P - Self Powered Monitor
UM-1P - Meyer Sound wedges UM-1P. Used on various rentals.

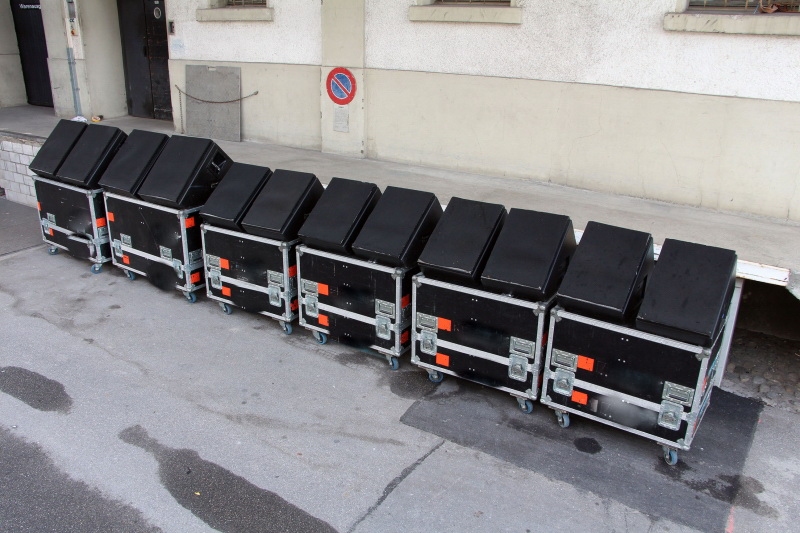

UM-1P Package - Corporate used package of (4) UM-1P in great condition with (2) dual flight cases.
UM-1P - Like New Package of (4) UM-1P.
