Used SY48 | For Sale Item# 30716

Innovason
Innovason
View more SY48 Compact
View more Digital Mixing Consoles

Quantity 1
Condition Like New
Year 2007
Location Europe
Case Type Dual
Previous Use Demo/Refurb
Warranty 15 Day

Description

In mint condition. Comes with a 15 day warranty.

What's Included

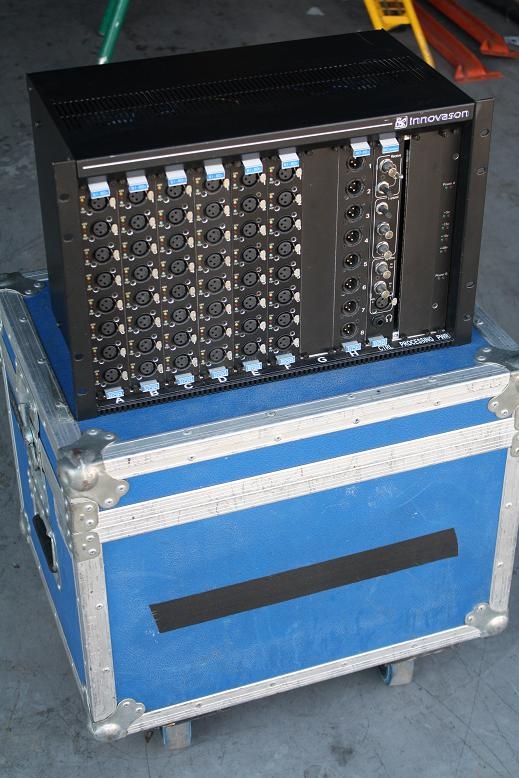

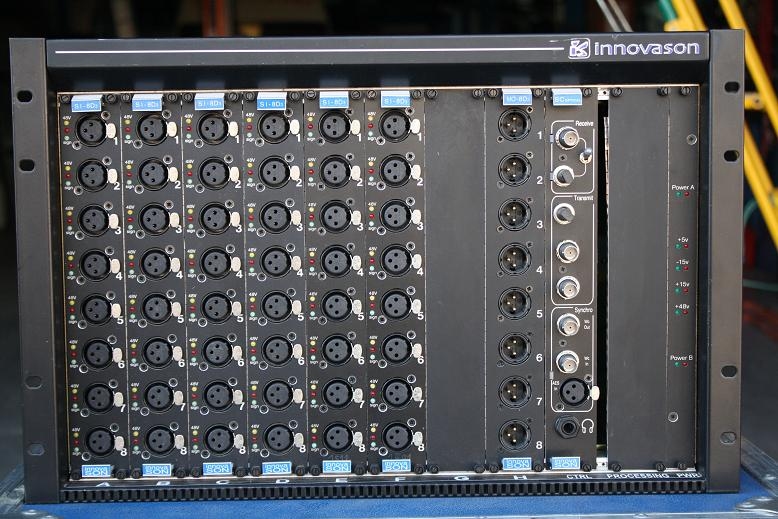

(1) SG3100 audio rack with case
(2) Internal power supplies
(6) SI-83D cards (48 inputs)
(1) MO-83D card ( 8 outputs)
(2) Coaxial snake with roller and case

Used SY48 | For Sale | Innovason

Featured & Other Digital Mixing Consoles

Featured & HOT Deals

Innovason | Solaris

Innovason

Innovason

Buy Innovason

INNOVASON was founded in 1993 by two brothers that were enthusiastic about professional audio and digital technology. The name is an acronym from French that means ??Innovative Sound?. We design and manufacture all-digital audio mixing...

Product Information

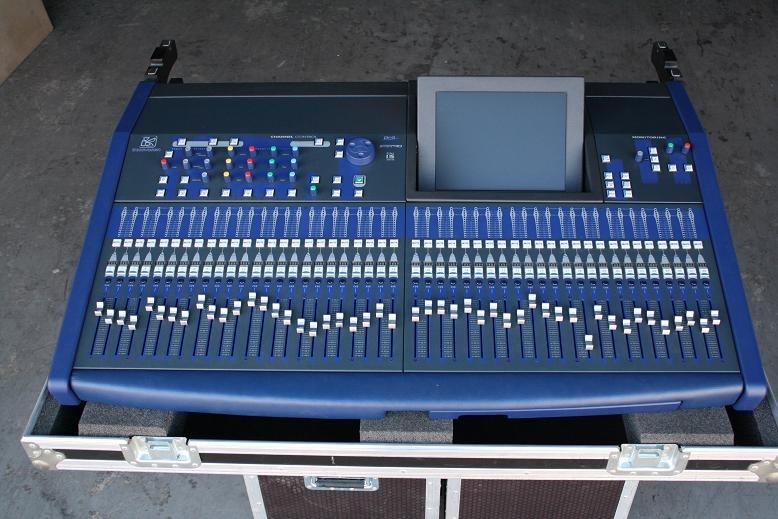

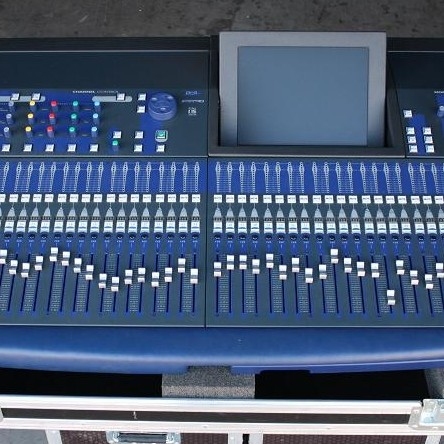

SY48 Compact

SY48 Compact

Little brother to the flagship Sy80, the SY48 is THE perfect all-round, take-it-anywhere console. So much functionality and so much instantaneous, direct performance control in so little space once you've tried it, you'll wonder how you ever managed without it! With its 48 motorized faders in a remarkably small footprint, Sy48 is capable of mixing up to 72 inputs simultaneously into 40 mix busses. Whatever the environment, from touring to fixed installations and broadcast, Sy48 brings the best of digital audio technology, and of course the legendary INNOVASON sound to the art of live mixing.

Mix Capacity
Mixing for up to 72 channels

Input and Output Resources
Up to 128 mic/line inputs
16 local inputs for inserts returns, machine returns with line level
16 local outputs - for inserts send, bus sends to fx, rec, ...
Matrix able to re-mix Masters, Auxes, Groups AND Inputs...
Up to 144 processed or non-processed analog, digital or EtherSound outputs
40 busses - freely assignable as Masters, Aux, Groups or Matrix
2 Monitors busses
Choose from a selection of analog, AES digital, processed or unprocessed inputs and outputs
Optional Local External Mix box for I/O modules and DSP
Optional Stage box for remote I/O

Control Surface
Fast, straightforward interface for im-mediate control
48 faders - user-configurable for use as inputs, VCAs, groups, busses, aux, XFAD, Matrix or crossfaders
Central control panel provides instant repeatable control of input gain, pan, eq, dynamics, delay, etc.
High definition 12" on-board fold flat TFT screen displays all key console parameters at a glance on screen - everything you need to see in one place at one time
Independent pre/post fader and panning for each channel and bus
Stereo monitoring with PFL, AFL, and APL (After Processing Level) listening on headphones or via allocated outputs

Transmission
MC Optical comms module - coaxial and fibre optical interconnections for the optional stage box (digital splitter)
Optional DIO interface allowing Ethersound DIOes module for 64 I/O channels thru a cat5 Cable

Software - Sensoft
Save configurations for instant recall
Snapshot automation with manual, or MIDI Synchronisation
Enhanced show software with new Q/ Page display and control for theatre applications, including Relax, Off-Line and OverRam
Off-Line programming on all PC running under XP for show preparation and backups

Acclaimed audio quality
High performance mica pre-amps
Very short and constant latency
Floating point DSPs with maximum accuracy
144 dB dynamic range

Design and build
Designed to cope with the rigours of touring
Proven durability and reliability - hundreds of INNOVASON consoles in use every day worldwide

Innovason

INNOVASON was founded in 1993 by two brothers that were enthusiastic about professional audio and digital technology. The name is an acronym from French that means ??Innovative Sound?. We design and manufacture all-digital audio mixing consoles and digital audio transmission snakes specifically for sound reinforcement applications. The company was at the forefront of two revolutionary concepts in the live sound markets: 1993 - Invention of the Muxipaire. Replacing traditional heavy copper snakes the ??Muxipaire? was the first system for the digital transmission for audio between the stage and the console via coaxial. 1996 ?? Launch of the first audionumerical console dedicated to live sound applications. 2003 - The Sy-series hits the market with two versions, the Sy48 and the Sy80. 2008 - Lawo AG takes majority shareholding in INNOVASON 2009 - The Eclipse is available as the newest innovation. Target Markets Touring: PA Rental Companies Corporate AV Rental Companies Cultural and Sporting Events Live Broadcast Feeds Fixed Installation: Theaters Performing Arts Centers Churches Places of Worship Concert Halls Theme Parks Cruise Ships Live Broadcast Control Rooms Broadcast: OB Vans Product Philosophy All systems are based on the original all-digital design philosophy and are specialized for ??live? use. All systems are completely modular. Consoles, Audio Racks, Modules and Interfaces are 100% compatible and may be configured for use in modest rental applications or extremely complex large format theater installations. Actual mixing ergonomics are the simplest available today. Even in complex audio configurations the man-to-machine interface allows for the least amount ??actions? by an operator during the actual live mixing process. The quality of sound is transparent and exceptional. Always utilizing the best mic preamp and converters, the reputation of INNOVASON audio consoles is the source of great company pride. Backwards-compatibility is a characteristic INNOVASON always engineers in new variations, revs and enhancements. With the release of various Upgrade Kits even consoles up to 10 years old may be brought up to more current specs and features. INNOVASON will always be mindful of this strategy when developing new products.

Used Digital Mixing Consoles

Audio mixers, or sound consoles, are electronic sound mixing boards used to combine two or more audio signals, before directing them to the output channels connected to the device. Sound consoles do a great deal more than just combining different audio signals they allow users to optimize the sound output in a number of ways adjusting various sound levels, enhancing sound with special effects and equalization etc, allowing for unmatched control over the end product.

SY48 Compact Package - This is a SY48 Package. From 2005. Used for Touring but Well Maintained. Comes with Case.
