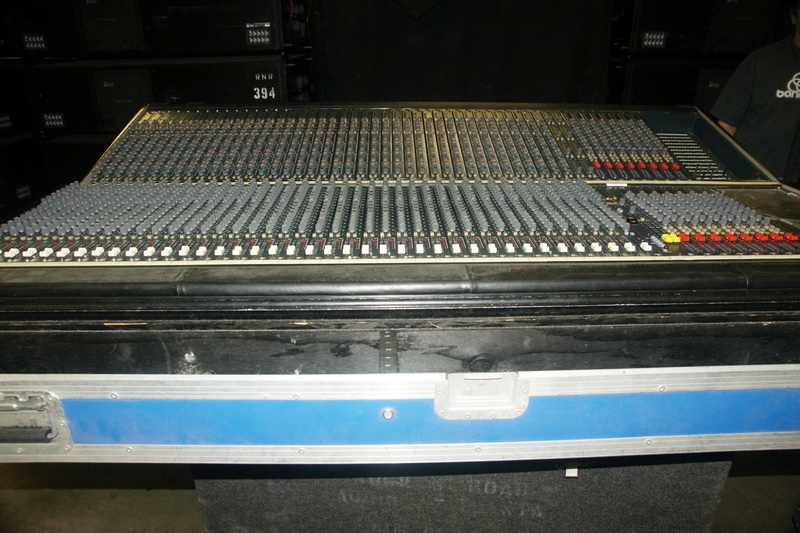

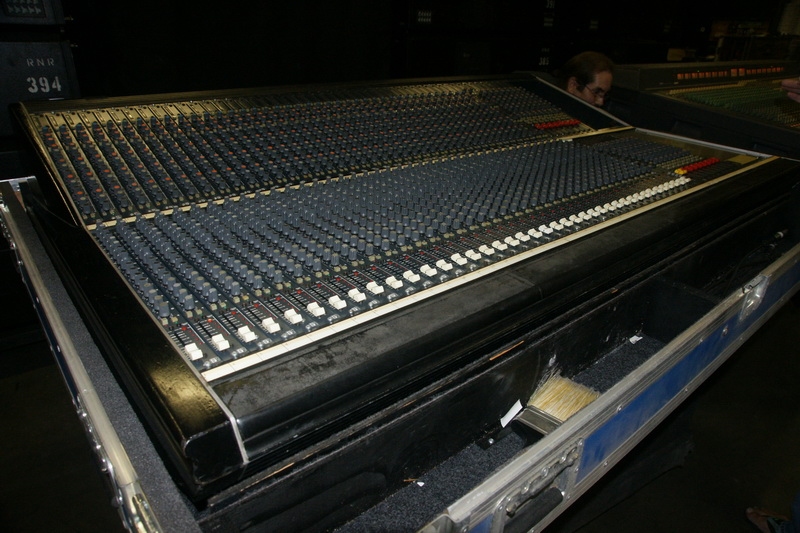

Series FOUR is a compact live sound mixer for Front-of-House applications. A comprehensive featureset combined with a small footprint makes it ideal for budget-conscious touring applications, where the familiar control layout found on its big brother the Series FIVE will be highly appreciated.
The FOUR is available in four frame sizes providing 24, 32, 40 and 48 mono inputs into 8 group busses, 10 Aux busses and stereo and mono main mix busses.
Four full-function stereo input channels are also included in each frame in addition to the mono modules.
The output section includes 8 VCA groups, and a 16x8 Matrix section, which includes feeds from two of the Aux busses.
* 24+4, 32+4, 40+4, 48+4 Ch frames
* Pre/Post switches for 10 Aux sends
* 4 Auxes on dual concentric with Ste/mono capability
* Inputs offer sweep filter and EQ (4 band sweep with fully parametric mids)
* 8 VCAs and 8 Mute Groups
* LCR Panning on inputs-mix and groups-mix
* Stereo Input with same EQ, Aux and Mic Capability as Mono Input
* 16x8 Matrix built-in
* Balanced sends & returns throughout; Balanced Direct outs
* Groups, Aux Masters on 60mm faders
* Pan and Mix/Mono assign from Groups and Auxes
* 2tk replay monitor system
* Console Linking cabability
* VU output meterbridge fitted as standard
Soundcraft
Founded in 1973, Soundcraft first made its mark with the launch of the Series 1, the first mixing console in a flightcase. Back in the early 70's, the music touring business was just beginning - and the transportable mixing desk quickly became popular among the bands and the new PA companies that were springing up to rent out sound equipment.
From what was then a small company in central London, Soundcraft expanded and started to diversify. The company designed a mixer for recording - the Series 2 - and began to build a reputation for great-sounding desks, which is often referred to as the favoured 'British Sound'.
Design and innovation has always been one of Soundcraft's major strengths. Over the years it has introduced a number of industry-favoured consoles such as the Series 4, 2400, TS24, 8000, 200B, 6000, Delta, SAC200 and the Spirit Folio range, and more recently the Series FIVE, FIVE Monitor and Broadway.
Today Soundcraft has a network of 88 distributors selling and supporting its products world-wide. Part of the Harman Pro Group, Soundcraft is still very much the dedicated professional mixing console designer and manufacturer it was back in 1973. It now boasts a range of mixers which are designed for use in live sound, recording, post-production, TV and radio production and disco applications.
Harman is an international company which comprises a group of dedicated manufacturers of audio equipment spanning professional audio, in-car systems, multimedia and hi-fi consumer products.
