Used NSP | For Sale Item# 46327

MA Lighting
MA Lighting
View more NSP
View more Lighting Processors and Networking

No case included call for more information.

Quantity 4
Condition Excellent / Few Scratches
Year 2008
Location Europe
Case Type No Case
Previous Use Rentals
Warranty 7 Day

Description

Call for Details

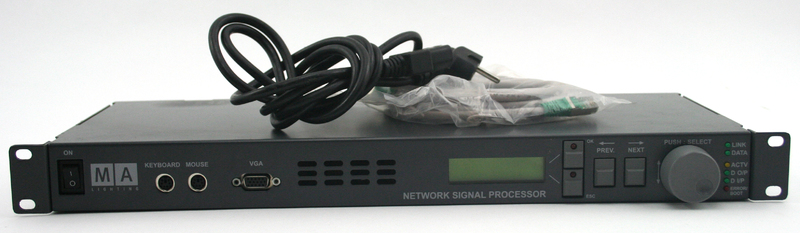

What's Included

(1) NSP
(1) Power Cable

(Unit Price)
$1,962 USD
(Unit Price)
€1.800 EUR
Financing Available
Minimum Order of 1 Units
(Price for 1 units)
(Price for 1 units)
Ask About This Product

Call: (404) 817.9300

Newsletter Sign Up

Receive our Latest Deals
Sign Up Here

Featured Deals

Our Best Deals
View All

Can't Find it?

We can source it for you.
Tell Us What You Need

Featured & Other Lighting Processors and Networking

Featured & HOT Deals

MA Lighting | Solaris

MA Lighting

MA Lighting

Buy MA Lighting

The company was founded in 1983 by Michael Adenau (MA) and enjoys strong growth from the very beginning until today. More than 10,000 MA control desks are being used all overthe world and MAs digital dimming systems have become an industry...

NSP | News, Articles & Services

LD Assistant

Dec 15, 2011

LD Assistant 04 offers breakthroughs in innovation, ease of use and reliability that won't be seen in other CAD programs for years... if ever! LD Assistant's presentation tools let you create high-quality renderings with dramatic lighting effects and even animated AVI movies of your designs. Create photo realistic rendering...

Varilite Releases VLX3 & New Line of Moving Lights

Oct 12, 2011

Vari-lite released the VLX3 Wash, VL400, VL440, VL770 and VL880 in the middle of 2011. These fixtures were designed to meet the growing demands of smaller fixtures in the market.Based on the award-winning VLX Wash luminaire technology, the VLX3 Wash gives you all the benefits of LED technology with the best visual performan...

Product Information

NSP

NSP

Speed up your data
For de-centralized DMX distribution networks the Network Signal Processor (NSP) converts the incoming Ethernet data stream back into full-speed DMX 512 signals. Four individual DMX ports are available for output, and up to two of them might also be used for DMX input. The NSP can be controlled as DMX node via multiple network protocols. Currently supported are ArtNet from Artistic Licence and our own protocol MA-Net.

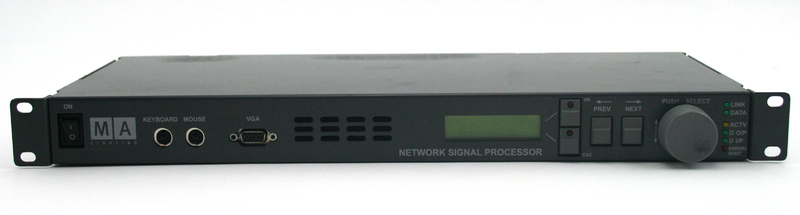

For maximum flexibility the NSP is built in a compact 19 inch housing, only 1 unit high. The network signal rocessor requires no external power supply and can easily be configured with the built-in encoder wheel and four function keys. A backlit LCD display shows necessary information about the actual connection state and features an intuitive menu structure which is also mirrored on the optional external VGA screen. Any change of configuration or setup can also easily be done with an optional external PC keyboard. Optionally each NSP can remotely be operated by a Pocket PC with wireless EtherNet connection and an installed Telnet client.


More parameters for everybody
The NSP is the heart of a grandMA parameter expansion
The Network Signal Processors can be used as a decentralized parameter expansion to any of the grandMA consoles (except grandMA micro). DMX signals are no longer generated and distributed from the main console they are actually calculated locally by the NSP units. A maximum of eight Network Signal Processors can be used to process a total of 16,384 parameters if all of them would have to be with 16 bit resolution another eight NSPs will output the additional required DMX-universes. Even together with the grandMA ultra-light a single Network Signal Processors calculates 2048 parameters in total and simply doubles the capacity of this console.

More functionality for the offline editor
Makes the grandMA offline to become "on-line"
Any Network Signal Processor connected to a grandMA offline PC on the same network like a "DMX-dongle" will enable the offline-software to send "real" DMX data to the world. With this feature the grandMA offline becomes a full-featured lighting control package for multiple applications. Together with just one NSP the grandMA offline can be utilised as a real fulltracking backup system to any of the grandMA consoles with up to 2048 parameters.
The grandMA offline is restricted for use with a maximum number of two Network Signal Processors for up to 4096 parameters. The grandMA offline cannot be used as a master in a parameter expansion network.

The grandMA Network Signal Processor allows for a complete
integrated network Solution by bridging the differences between
the multiple defacto standards in existence today. An Ethernet
network can be used to bridge longer distances and to provide
more channel capacity on a single transmission line than a
DMX universe has ever done. It also brings more transparency
into the signal flow and utilizes standard components from
industry for an increased level of reliability. As long as the
Advanced Network Protocol (ACN), the designated successor to
the DMX standard, is not released it is vitally important to be
able to run an DMX node via Ethernet on anyone of the
known protocols today.

The Network Signal Processor, as well as any of the grandMA consoles, gives you the choice of two fully implemented protocols.
For the new grandMA parameter expansion network the NSP plays a leading role in processing the external parameters for the master console as well as outputting up to four DMX universes at the same time.
The Network Signal Processor requires grandMA version 5 software
or above to support all operational modes as described below.
Operational Modes
The Network Signal Processor
You may choose between five operational modes when using the Network Signal Processor. Depending on your application the NSP can in- and output your DMX channels from a EtherNet network, act like a DMX merger and Booster or even expand your grandMA system by additional parameters.

DMX-Merger and ??Booster
1 or 2 DMX inputs with HTP or LTP functionality
2 or 3 DMX outputs

EtherNet Node with MA-Net protocol
10/100 MBit/s EtherNet
4 physical DMX Slots for output
up to 2 physical DMX Slots for input
(replaces 2 output ports)
64 DMX universes per network
32,768 DMX channels per network

EtherNet Node with ArtNet protocol
10/100 MBit/s EtherNet
4 physical DMX Slots for output
up to 2 physical DMX Slots for input
(replaces 2 output ports)
16 DMX Slots / 16 Subnets = 256 DMX Universes
131,072 possible DMX channels

grandMA offline DMX-dongle
10/100 MBit/s EtherNet
4 physical DMX Slots for output
up to 2 physical DMX Slots for input
(replaces 2 output ports)
up to 4096 parameter (requires two NSPs)
up to 8 DMX universes per network


grandMA parameter expansion with MA-Net protocol
10/100 MBit/s EtherNet
calculates 2048 parameters with 8 or 16 bit
up to 16,384 parameters on MA-Net
4 physical DMX Slots for output
generates 8 DMX Slots on MA-Net
64 DMX universes per network
32,768 DMX channels per network
