The Meyer Sound M2D compact curvilinear array loudspeaker brings numerous advantages to mid-sized venues that require tight vertical pattern control with long throw. The M2D is designed specifically for vertical curvilinear arrays of up to 16 cabinets having 0- to 7-degree splay between adjacent units. Pioneered by Meyer Sound in the early 1980s, horizontal curvilinear arrays composed of trapezoidal cabinets have been an industry standard for decades. The M2D extends the concept to vertical arraying, enabling flexibility to tailor vertical coverage by varying the number and splay of cabinets in the array while maintaining a constant 90 degrees of horizontal coverage.
For high frequencies, the M2D utilizes Meyer Sound's patented REM ribbon emulation manifold to couple a single Compression Driver with a 1.5-inch exit (4-inch diaphragm) to a horn with 90-degree constant-directivity horizontal coverage. (The vertical coverage of the array depends upon the array length and curvature.) The M2D mid-low section comprises two high-power 10-inch drivers with lightweight neodymium magnet assemblies housed in a compact, vented trapezoidal enclosure.
To assure the smoothest response in the critical midrange, the M2D incorporates a complex crossover design: at the lowest frequencies, both 10-inch drivers combine to reproduce powerful, coherent bass, while in the mid frequencies the crossover feeds only one of the two drivers. This ingenious technique eliminates interference between the drivers that would otherwise occur at shorter wavelengths.
Meyer Sound
Established by John and Helen Meyer in 1979, Meyer Sound has been at the forefront of innovation in audio engineering for over two decades. From the outset, Meyer Sound looked beyond loudspeaker cabinet design to create totally integrated, systems-comprehensive solutions that encompass transducer design, signal processing, power amplification and even electroacoustic measurement systems. As a result, Meyer Sound's engineering teams have earned an enviable reputation for developing unique, innovative solutions to some of the most difficult problems confronting audio professionals.
In fact, it is fundamental to John Meyer's philosophy that no component of a system should be compromised in order to compensate for variables "upstream" or "downstream." Instead, the entire system should be conceived, designed, tested, confirmed and manufactured as a whole to provide the optimum blend of audio fidelity, utility and long-term reliability.
Used Line Array Speakers
Find used line array speakers and line array elements from such popular brands as L-Acoustics, d&b audiotechnik, Meyer Sound and Nexo. All used line array speakers are warrantied and in most cases inspected by factory certified technicians.
Solaris sells and buys secondhand and used line arrays for large concerts, tours, stadiums and auditoriums. Call us if you don't find it and we will find it for you.

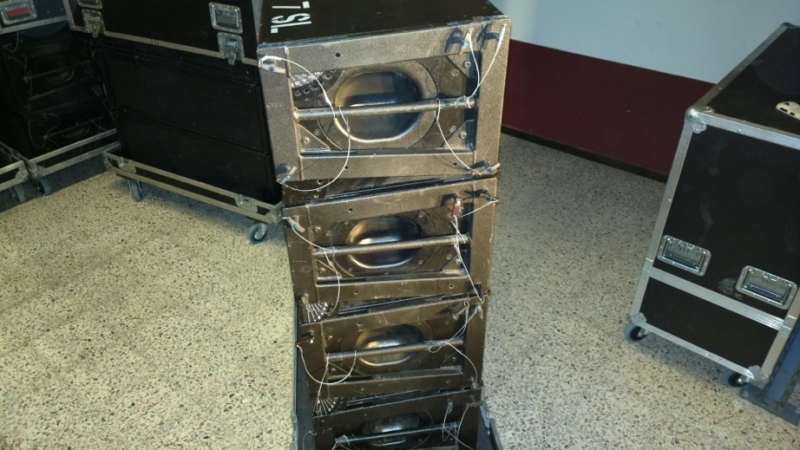

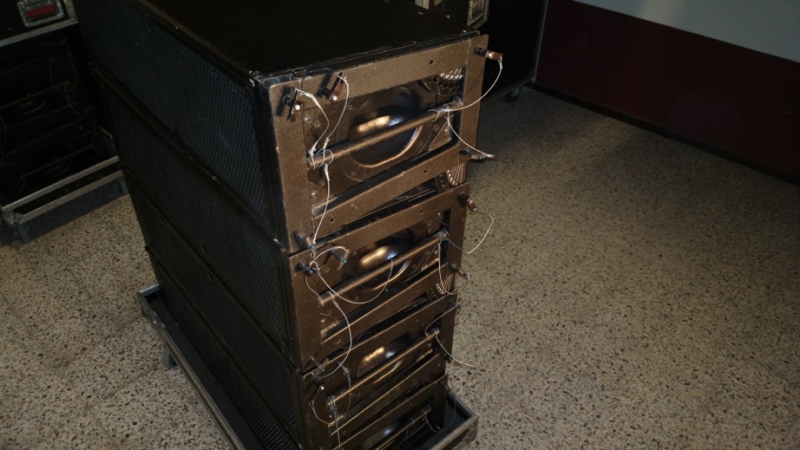

M2D Package - Meyer M2D package used in an installation and in excellent condition.
M2D Meyer Sound System - Meyer Audio System - From 2004 to 2005.
(16) M2D, (8) M3d with Rigging and more
M2D - Used on an installation. In excellent condition.
M2D - Package of (8) M2D in great condition. Previously used on rentals.
M2D - Package of (16) M2D in great condition.
M2D - Package-(16) M2Ds, (8)-M3Ds, MORE
M2D - Line Array Package with Distro & Cable
M2D - Package of (16) M2D used in various corporate events.
