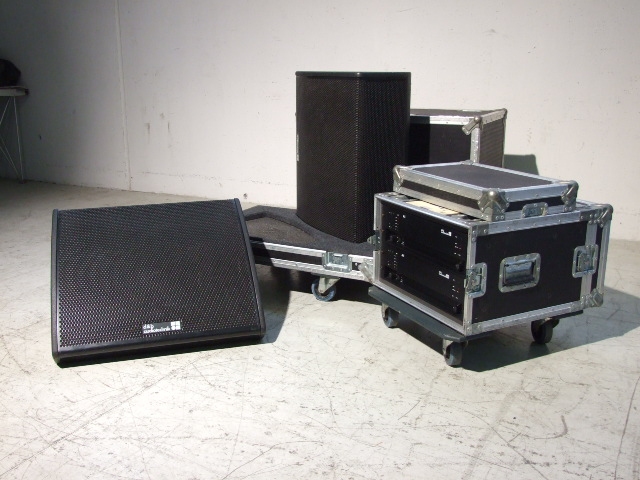

The M2 is a 2-way high performance stage monitor, with a peak sound pressure level of 143 dB. Its design uses a low height cabinet, achieves a constant directivity of 45deg x 60deg > 600 Hz and significantly raises the feedback stability margin. Together with the cabinets baffle angle of 40deg (to floor), the dispersion performance offers a realistic artist listening area starting directly above the cabinet and reaching quite far upstage. The result is a loudspeaker system with remarkable vocal presence, clarity and neutral, balanced sound. The M2 cabinet is constructed from marine plywood, incorporates handles and has an impact resistant paint finish. Two fittings, which accept ball-lock shackle pins, are located on each side of the cabinet allowing quick and flexible rigging
Used D and B Audiotechnik
d&b audiotechnik has been developing, manufacturing and distributing loudspeaker systems since 1981. The company operates internationally in the field of electroacoustics to produce high quality products for reinforcement of speech and music. Through the amalgamation of technological developments, system integration principals, quality of construction and standards of service, d&b pursues a systems approach that includes all aspects of design, development, manufacture and support. d&b's loudspeakers are used globally in rental and installation markets for events, multimedia, musicals, concert halls, theatres, opera houses, broadcast and everything from the smallest conference room to the largest stadium.
- A breakout box or extension console that expands the current consoles capabilities by adding additional tactile faders and controls. Generally applied to lighting control consoles and adapted from a . Used . theater term used to describe the sides of the stage not visible to the audience where the actors make their entrances. . Used . ...Aircraft Landing Light
- A narrow beam PAR lamp (28 volt) that is used on aircraft and often adopted for PAR64 and PAR46 lamps. They are most commonly 4 lamps wired in series to attain the required voltage of the circuit as . Used . close to 120 volts. ACL lamps have a higher intensity, brightness and color temperature than the standard PAR lamp.
ACL lamps are more expensive than standard PARs and have a sho. Used . rter life. Ohm
- A unit of measurement for the electrical resistance equal to that of a conductor in which a current of one ampere is produced by a potential of one volt across its terminals. One ohm is the resistanc. Used . e in a circuit when one volt maintains a current of one amp. The unit, originally ohma or ohmad, was first used by Charles Tilston Bright and Latimer Clark in 1861 and is still in use today.. Used . ...Zone System
- A unique method introduced by photographers Ansel Adams and Fred Archer around 1940 for determining the best exposure and correct development for an individual photograph by way of analysiing the subj. Used . ects luminosities in terms of ten gray tones or zones labled 0 to IX or zero to nine and visualizing them as print densities. The zone system gives photographers a systematic method for ac. Used . curately identifing the relationship between the way they see the photographic subject and the results they achieve in their finished works....Active
- A active circuit works with an external power supply and usually at low power. A passive circuit operates directly on a signal using the power coming from the surrounding circuitry.
This is the . Used . reason why an active crossover is, for the most part, placed before amps, containing integrated circuits (and line level signal processing). On the other hand a passive crossover is placed . Used . after amplifiers where power levels are much larger . ...
Monitors are commonly known as â??stage monitorsâ?. Stage monitors are the speakers used on stage that are directed towards the performers so that they can hear themselves while playing. This allows them to monitor how well they are playing. Usually, the monitor speaker is needed when instruments with amplifiers are used in combination with acoustic instruments and the voice. These monitors on stage usually have built in amplifiers and equalizers. These monitors specifically highlight the vocals and the sound of the acoustic instruments so they wonâ??t be enveloped completely by the drums or the other electronic instruments. The audio wedge, wedge monitor, stage wedge, amplifiers, equalizers and monitor mixers all comprise the stage monitor system.
There are two types of monitor speakers: the floor monitors and side fill monitors. Usually speakers on stage are heavy duty and require high input power to be able to generate high volume sounds. The floor monitors are the speakers that are placed on the floor. They are compact with the angle back design. Because of its angle appearance, it is also known as â??wedgeâ?. The smaller singular speakers are called the â??hot spotâ? monitor that is usually placed on the microphone stand so the performers can easily hear themselves. The two way heavy duty speakers have the woofer and the high frequency horn. The side fill monitors are those found at the upright side of the stage and these allow sound to be heard in places that the floor monitors cannot cover.
