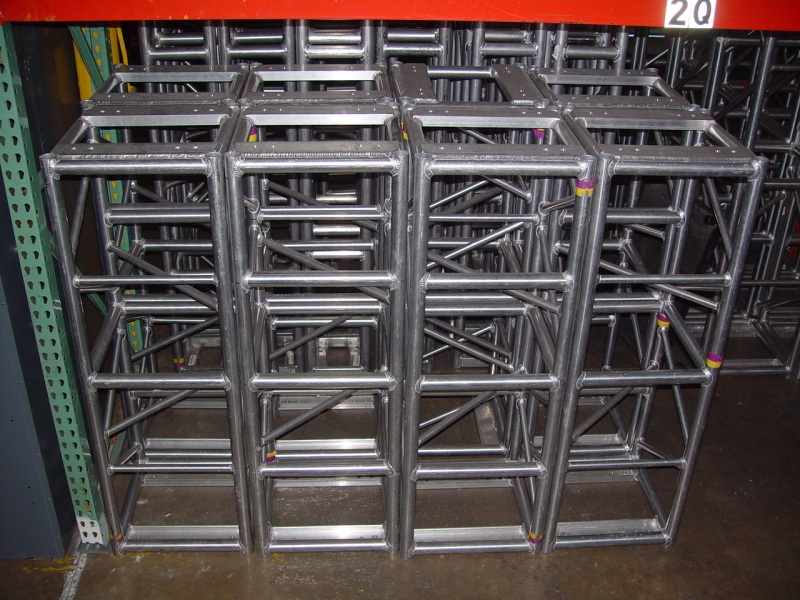

12 x 12 OD Box Style
1.9 OD 6061-T6 Aluminum Tube Schd #40
1.05 OD Aluminum Bracing
.145 Wall Thickness
Highly Polished Aluminum Tubing
Custom Lengths & Corners Available
Used Applied Electronics
Applied Electronics manufactures and distributes trussing, portable crank lifts, ground support systems, roof systems, dimmers, lighting controllers, power distribution and other accessories.
Applied Electronics supply equipment to Production professionals, Rental Companies, Arena, Film, Television, Schools, Churches, Retail and the Trade show industries.
- An amp rack is any furniture, fixture, or case where multiple amplifiers are mounted in slots or grooves, generally used in touring systems because they are easy to transport.
. Used . . Used . ...Lumen
- In physics, specifically photometry (optics), the lumen (symbol: lm) is the SI derived unit of luminous flux. It is the amount of light that falls on a unit spherical area at unit distance from a sour. Used . ce of one candela. In steradians this is equivalent to the amount of light that falls on a unit solid angle from a light source of one candela. Alternatively, one lumen is the total light pro. Used . duced by an isotropic light source of (1/4p) candelas. A 100 watt incandescent light bulb will output around 1500 lumens. ...Joule
- A term in the international system for a unit of electrical, mechanical, and thermal energy equal to the work done when a current of one ampere is passed through a resistance of one ohm for one second. Used . . Surge protectors are often given joule ratings, but this rating refers only to the amount of energy they can absorb, not what gets through. Its value was calculated originally by James Pr. Used . escott Joule, but the term was first introduced by Dr. Mayer of Heilbronn....XGA
- Extended Graphics Array is a standard computer display introduced in 1990 by IBM. The initial version of XGA built upon IBM's VGA, adding support for two resolutions, 800 × 600 pixels with high color . Used . and 1024 × 768 pixels with a palette of 256 colors. XGA-2 was developed later and with 1024 x 768 pixels with high color, and 1360 x 1024 with 16 colors. However, all XGA modes have an aspe. Used . ct ratio 4:3 rounded to 8 pixels....Stages
- A stage is a designated space for the performance of theatrical productions or other live events. Some stages are permanent structures in theaters, but often stages are temporary structures built for . Used . outdoor events and can range is size from small 20 to 30 square foot structures to very large arena sized stages assembled from many components.. Used . ...

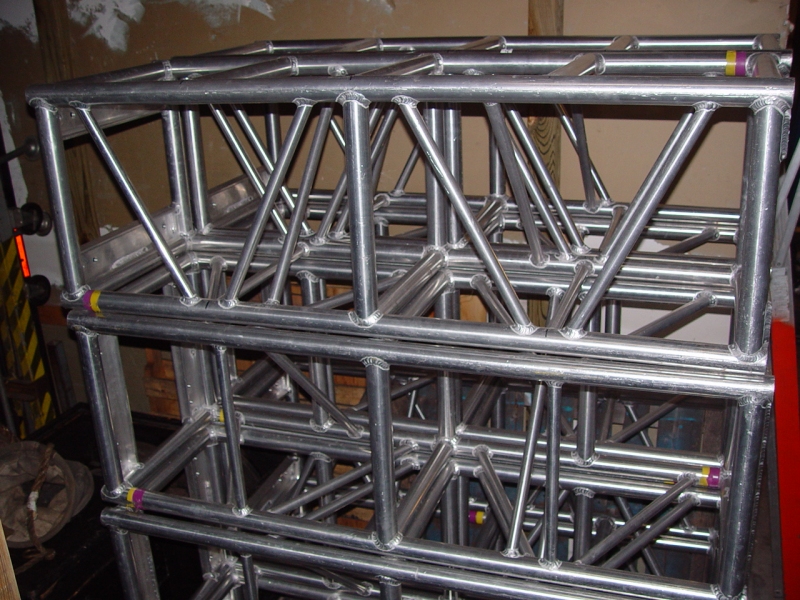

Used Box Truss
Box truss are used in the construction of concert and theatre stages, designed to make the stage extremely strong and able to bear heavy loads that enable the stage to support various types of props and equipment that will be used during the performance.
Also called a stage truss, the box truss has many other uses in addition to concert stages. These include electric power pylons, bridges, radio antennas and even in the fuselage of aircraft. The reason they are so popular is due to their design. Basically, a box truss is constructed of three chords (or more), which are supported by diagonal structural elements in order to increase their strength.
The box truss is able to support far greater loads than what a concert stage without trusses would be able to, thanks to its diagonal supports. They are also more resistant to twisting, buckling and swaying in heavy winds.
There are many different kinds of box truss materials available. One of the most common is the aluminium truss, as this kind of stage truss is lightweight (and so easier to put together) and relatively cheap, yet still able to support very heavy loads.
Different load-bearing capabilities are often used to define a box truss. The 12x12 truss is the standard for a medium-duty truss, although larger sizes are available for a heavy duty truss. Itâ??s also possible to find smaller, light-duty truss sizes.
