Used Design Spot 250 Pro | For Sale Item# 38934

Elation
Elation
View more Design Spot 250 Pr...
View more Moving Lights

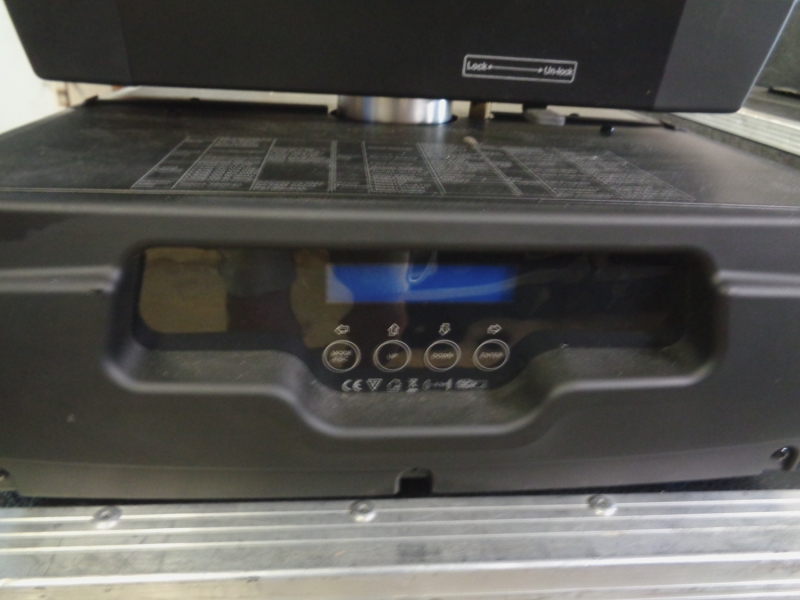

Design Spot 250 Pro in good condition. Priced per unit. Minimum order of 2 units = $1,864 USD / €1.779 EUR

Quantity 10 (Minimum Order 2)
Condition Normal Wear & Tear
Year 2010
Location North America
Case Type Dual
Previous Use Rentals
Warranty 7 Day

Description

Previously used on various rentals. Cleaned, maintained, and tested by authorized technicians.

What's Included

(1) Design Spot 250 Pro
(2) Omega Brackets
(1) Safety Cable
(1) Edison Connection
(1) Dual Flight Case with the purchase of (2) units.

(Unit Price)
$932 USD
(Unit Price)
€890 EUR
Financing Available
Minimum Order of 2 Units
(Price for 2 units)
$1,864
(Price for 2 units)
€1.779
Ask About This Product

Call: (404) 817.9300

Newsletter Sign Up

Receive our Latest Deals
Sign Up Here

Featured Deals

Our Best Deals
View All

Can't Find it?

We can source it for you.
Tell Us What You Need

Featured & Other Moving Lights

Featured & HOT Deals

Elation | Solaris

Elation

Elation

Buy Elation

Elation Professional - Professional Lighting & Entertainment Products and Accessories!

Product Information

Design Spot 250 Pro

Design Spot 250 Pro

Design Spot 250 Pro - 250W Pro Version of the Design Spot 250

Building on the success of our popular Design Spot 250, the Design Spot 250 Pro has all the same specifications and features, but with some important improvements requested by Lighting Designers and Touring production companies.

CONTROL FEATURES

? RDMX - Remote DMX Addressing
? USITT DMX-512 (16-bit resoultion)
? 16 DMX Channels
? 4 Digit LCD Display
? On board menu settings
? 3-pin & 5-pin XLR serial input/output
? Sound active mode

OPTICAL SYSTEM

? New glass reflector for improved output
? Improved lens coating for increased output and image quality
? High output luminous-parabolic dichroic reflector
? Beam Angle 17deg
? Replacable Beam 14deg, 20deg angles (included)
? All lenses are anti-Reflection coated

COLORS

? 8 Replaceable Dichroic Filters, 7 color, UV + White
? Continuous, variable speed, color scrolling in both directions (rainbow effect)
? More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

GOBOS

? 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
? 7 interchangeable, indexable, rotating gobos plus open
? 7 interchangeable, static gobos plus open
? Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
? Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
? Gobo Overlay (Gobo Morphing)

SHUTTER/DIMMER

? Variable speed strobe effect (1-18) flashes per second
? Pre-set variable/random strobe and dimming pulse effect
? Dual Flag mechanical dimming system

IRIS

? Beam narrow to wide (5% - 100%)
? Variable speed iris macros
? Small to large and large to small

FROST

? Variable Frost Control
? Hard edge to soft edge

PRISM

? 3-facet rotating/Indexing Prism
? Both directions at variable speeds
? Macro-function for rotating gobos/rotating prisim combinations

FOCUS

? Motor driven focus from near to far

LAMP

? Phillips MSD 250/2 (250W, 8500degK, 3000 HRS)

PAN/TILT

? Pan & Tilt locking system for transport
? Automatic Pan / Tilit position correction
? Maximum PAN-movement 630deg in 2.0 secs (default) or 540deg (user selectable) / 16 bit
? Maximum TILT-movement 265deg in 1.5 secs / 16 bit
? Vector Mode with blackout

DIMENSIONS & WEIGHT

? 16.75L x 16.75W x 19.75H
? 56.5 lbs.

POWER SUPPLY

? Fuse: 8A (120V) or 4A (220V)

? Magnetic Ballast

? Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz

? Power Consumption 400W

Elation

Elation Professional - Professional Lighting & Entertainment Products and Accessories!

Used Moving Lights

Moving lights, or intelligent lighting as they are sometimes called, are basically a type of stage lighting that is able to move due to its integrated mechanical elements, which go beyond the moving parts that are found in more traditional, non-moving lighting. Automated lighting such as moving lights is highly valued by stage lighting technicians as through them, it is possible to create highly complex special effects that simply cannot be made using standard, non-moveable lights. It should be noted however, that when it comes to intelligent lighting, the real intelligence lies with the programmer of the show, rather than the lighting equipment or any operator. Moving head lights, also called moving head luminaires, are highly versatile lighting instruments capable of performing multiple lighting functions at once. They have largely superseded the use of multiple non-moving lights to create special effects, which required many lights and a large amount of skill on behalf of the operators. Moving lights are hooked up to a lighting control console and send data to it in one of three ways â?? through an Ethernet control (a relatively new technology), analogue control (now almost obsolete), or DMX, (which is now the industry standard). So long as they have been properly programmed, the optics of wiggly lights can be altered in many ways, allowing for the â??personalityâ? of the lights to be adapted almost instantaneously, depending on the requirements of the operator. Typically, moving lights will be pre-programmed before a production and controlled using simple commands, although some more experience operators may prefer to control them â??liveâ?, if they have the experience to do so.
