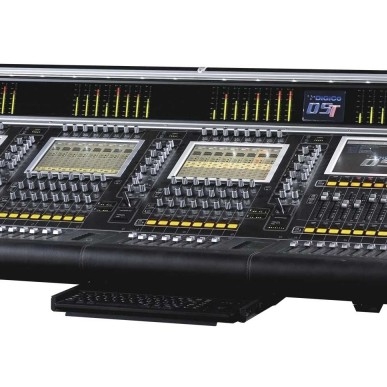

The DigiCo D5T combines a wealth of facilities in a compact, 1484mm W x 868mm D (58.43in W x 34.17in D) worksurface that potentially will give back hundreds of seats a year to large productions.
Worksurface
As with the D5, the worksurface itself consists of 3 touch screens for the input sections and one for the master section, with the addition of previous and next buttons for instant cue recall. As with the D5, the engine is housed within the worksurface but has a much larger bussing capability.
Engine
As with the D5 it includes dynamics processing with side chain EQ; up to 240ms of delay: four bands of parametric EQ, high and low pass filters; but now has, 72 user-assignable busses; 32 x 32 output Matrix; group outputs each with delay, six bands of parametric EQ and compressor; and pre-equaliser group outputs for use by measurement systems such as SIM?; dedicated illuminated Next/Previous Cue buttons; full off-line DigiCo Cue Composer Show Programming software; user definable I/O specification and high quality on-board digital effects.
Live Update is a unique feature enhancement of D5T software, optionally allowing altered controller values to update themselves through the cue list - without further operator intervention.
The D5T gives you unparalleled flexibility in configuring your console to suit the show. Any of the 72 internal busses can be set up as mono or stereo auxiliaries and mono, stereo and surround sub groups (the console is fully 5.1-ready as well as for LCR(S), with three joystick surround sound panners for instant sound placement).
I/O
The D5T allow connection via MADI or Optocore? to up to 4 DiGiRacks allowing up to 224 inputs and 224 Outputs to be connected to the worksurface.
The D5T 'family' makes sound production even more cost effective with the D5-RC Remote Control, an ultra compact operator's console. For the most complex shows the D5-TC Theatre Masters Controller provides extended master fader controls and eight programmable macro buttons and a dedicated script space.
D5T-12
The D5T-12 is a hybrid of the already successful D5T digital theatre mixing system, giving 12 faders, rather than the standard eight, to provide more VCA control within the standard console surface and footprint.
Options
D5-RC - Remote Controller
D5-TC - Masters Controller
D5T-12-RE - Fader Pod
D-Series-RE - Standalone Redundent Engine
MiNi-DiGiRack - 19-inch I/O Rack
D-TuBe - Integrated Tube Mic Preamp
Combi Card - 16 GPI's, 16 GPO's and an extra MIDI port
DigiCo
DiGiCo (UK) Limited brings together the design and development skills that have helped create some of the world's most popular, successful and ground-breaking live sound consoles, with the digital engineering expertise and manufacturing resources of Soundtracs.
The company was formed in 2002 to develop the D5 Live digital mixing system, a revolutionary approach to both the live sound console and the way it interfaces with both ends of the audio chain.
In basing a console around a powerful DSP engine using proven Soundtracs hardware and software, but with features dedicated to live sound mixing, DiGiCo created the worldâ??s first truly open-ended console system, for which additional features will be made available in new software versions. This design philosophy ensures your investment in state of the art audio technology today will remain state of the art in the future. The D5 Live from DiGiCo: science dedicated to advancing the art of live sound engineering.
Soundtracs was formed in the early 1980s by a group of recording engineers in search of a better studio console than those available at the time. The teamâ??s success led to two decades of audio innovation and, in 1992, its first development of a digital audio mixing console.
In 1996 this program led to the launch of the acclaimed Virtua console, followed a year later by the DPC, in 1998 the DS3 and in 2000 the D4. Since 2000 the companyâ??s product range has been based entirely on digital audio.
Along the way a host of new technologies has been introduced, including the first use by a console manufacturer of the revolutionary Sharc DSP from Analog Devices, a faster, more efficient processor than any then on the market, the first (and still the most comprehensive) use of multiple TFT LCD touchscreens, a pioneer in the use of a 96kHz sample rate, and the first to run multiple sample rates simultaneously.
This is just some of the experience that has gone into creating the D1 Live digital mixing system, the latest innovation from one of the pioneers of professional digital audio.
