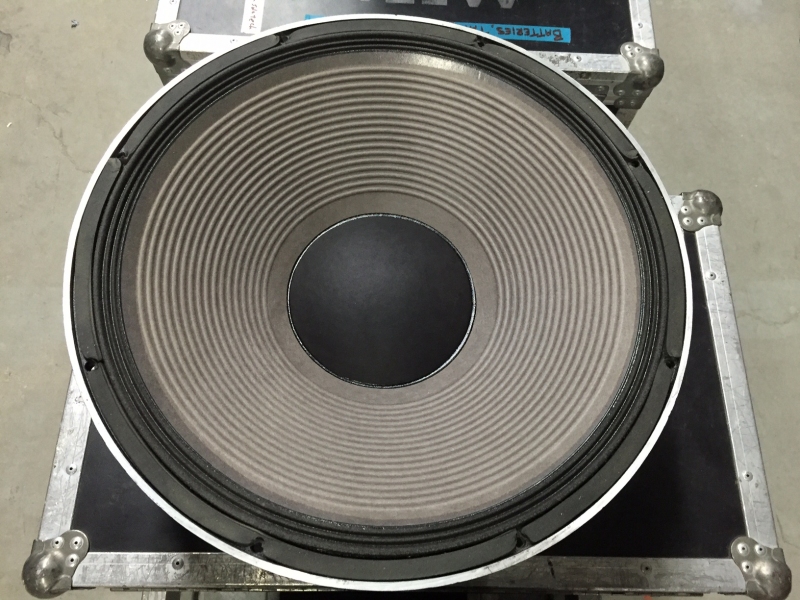

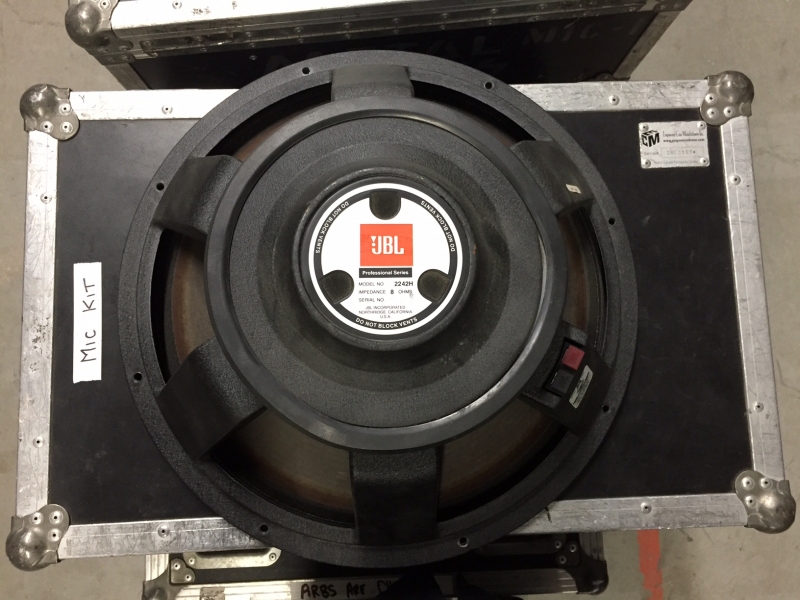

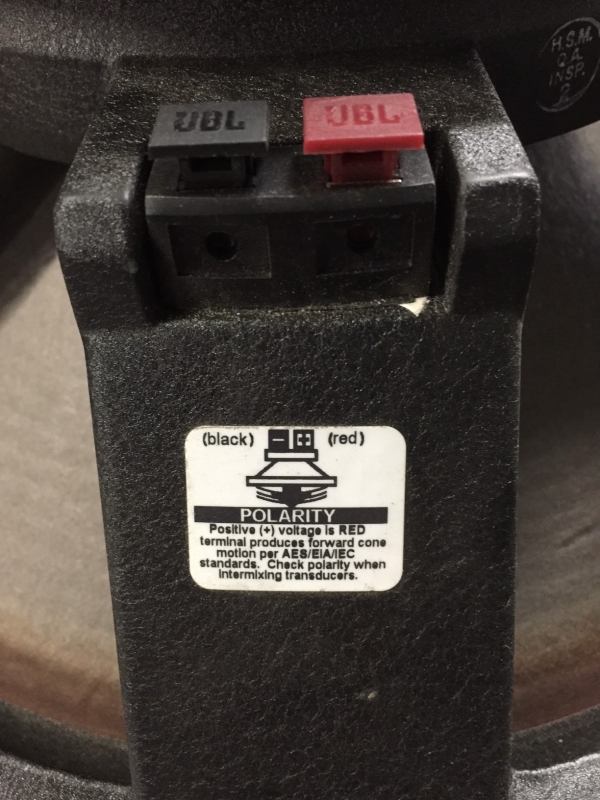

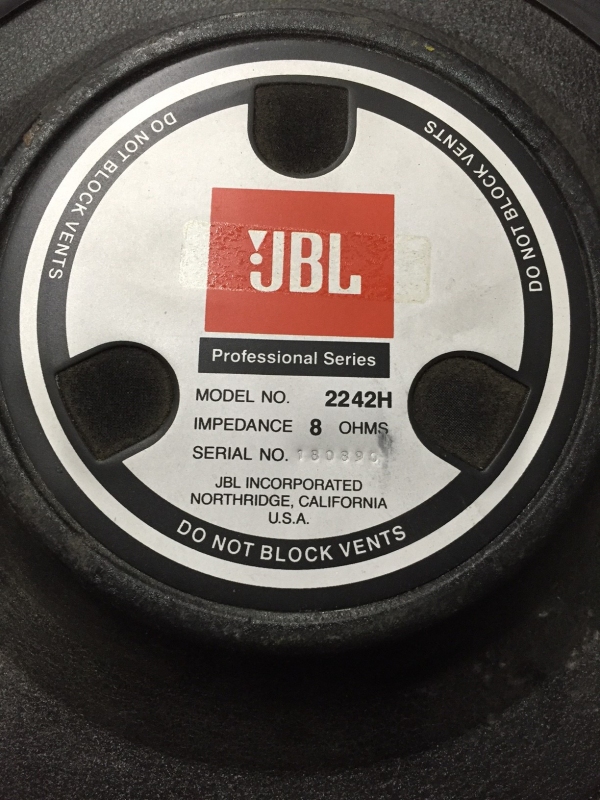

The JBL 2242H low frequency transducer
incorporates JBLs ongoining
developments in improved thermal
dissipation and linearity at both high
and low cone excursions. To increase
power handling while minimizing
power compression, JBLs engineers
have developed a patented voice-coilto-air
heat dissipation method known
as Vented Gap CoolingTM. This process
pumps air through the magnetic gap
and directly over and around the voice
coil to provide immediate heat transfer
and reduction of operating temperature
- a direct improvement in power
compression. 1
The 2242H is built around a completely
new motor structure with a
pole piece extending both above and
below the top plate to improve gap
flux symmetry and increase thermal
conductivity from the voice coil to the
pole piece. In addition to the benefits
of JBLs Symmetrical Field GeometryTM
,
the 2242H also incorporates a copper
shorting ring that is imbedded in the
pole piece at the precise center of the
gap and is in close proximity to the
voice coil. The copper ring acts like a
shorted secondary turn in a transformer,
with the voice coil acting as
the primary winding. The benefits of
this are a reduction in third harmonic
distortion and a reduction of the voice
coils inductance, which improves the
transducers transient response.
