Features & Benefits
High peak power output yields excellent transient reproduction and low-frequency clarity at extreme operating levels
Tuned, vented cabinet optimized for low air velocities
Linearity and power bring new possibilities for low-frequency system design
Stackable and flyable with other 1100-LFCs in regular and cardioid arrays
Optimized to integrate with MILO, MICA, JM-1P, and other Meyer Sound loudspeakers
Applications
Stadiums
Arenas
Concert halls
High-power, controlled arrays
The 1100-LFC low-frequency control element is a self-powered loudspeaker defined by its sonic linearity in reproducing low-frequency transients at high, continuous levels with very low distortion. This ultralow distortion, coupled with exceptional headroom and optimized rigging options, makes the 1100-LFC a flexible tool for low-end directional applications for large-scale tours and installations.
In my first Listen of the 1100-LFC, I was standing 15 feet away in a small room of about 30 by 40 feet. As the 1100-LFC gracefully reproduced the low frequencies, my stomach and clothes jumped around to the rhythm of the music. At high and at low SPLs, instead of hearing the common straining of the components, I heard a very musical sound with the dynamic depth of the instruments. I immediately put the 1100-LFC on one of my shows and I am extremely happy with this decision.
- Jonathan Deans
Sound Designer

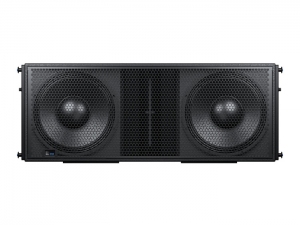

An optimally tuned, vented cabinet houses the 1100-LFC's two linear, high-excursion 18-inch cone drivers. A two-channel Class AB/H bridged amplifier with complementary MOSFET output stages supplies ample continuous and peak power to the drivers. The amplifier, control electronics, and power supply are integrated into a single, rear-mounted module that is field replaceable.
The 1100-LFC's 28 Hz to 100 Hz operating frequency range complements other Meyer Sound loudspeakers, allowing it to integrate smartly with line arrays and curvilinear arrays comprised of MILOs, MICAs, and JM-1Ps.
The bottom end with the 1100-LFCs is so incredibly loud, but still clean with tight transientswhich is the crux of Bassnectar's music.
- Brendan Hoffman
FOH and Production Manager, Bassnectar
Protective, plastic skids are included on the bottom of the 1100-LFC cabinet that securely align with the cabinet's top slots. Units can be stacked normally or reversed for cardioid configurations.
The optional MRK-1100 rigging kit, available as a factory-installed option or field upgrade, includes captive GuideALinks that allow the loudspeaker to be flown from the MTG-1100 top grid. The GuideALinks, located at the front and rear of the cabinet, are easily set with convenient, pinned handles and slots. The GuideALinks also accommodate reversed units for flown cardioid arrays. The MTG-1100 top grid can suspend line arrays comprised of up to 12 cabinets at a 7:1 safety factor, or up to 16 cabinets at a 5:1 safety factor. For touring and portable systems, the 1100-LFC can travel securely in stacks of up to three units with the optional MCF-1100 caster frame.
The RMS remote monitoring system provides comprehensive monitoring of system parameters on a Windows-based computer.
The 1100-LFC cabinet is constructed of multi-ply hardwood and coated with a black-textured finish. A hex-stamped, steel grille with acoustical black mesh protects the unit's drivers. Other options include weather protection and custom color finishes for fixed installations and applications with specific cosmetic requirements.
Meyer Sound
Established by John and Helen Meyer in 1979, Meyer Sound has been at the forefront of innovation in audio engineering for over two decades. From the outset, Meyer Sound looked beyond loudspeaker cabinet design to create totally integrated, systems-comprehensive solutions that encompass transducer design, signal processing, power amplification and even electroacoustic measurement systems. As a result, Meyer Sound's engineering teams have earned an enviable reputation for developing unique, innovative solutions to some of the most difficult problems confronting audio professionals.
In fact, it is fundamental to John Meyer's philosophy that no component of a system should be compromised in order to compensate for variables "upstream" or "downstream." Instead, the entire system should be conceived, designed, tested, confirmed and manufactured as a whole to provide the optimum blend of audio fidelity, utility and long-term reliability.
